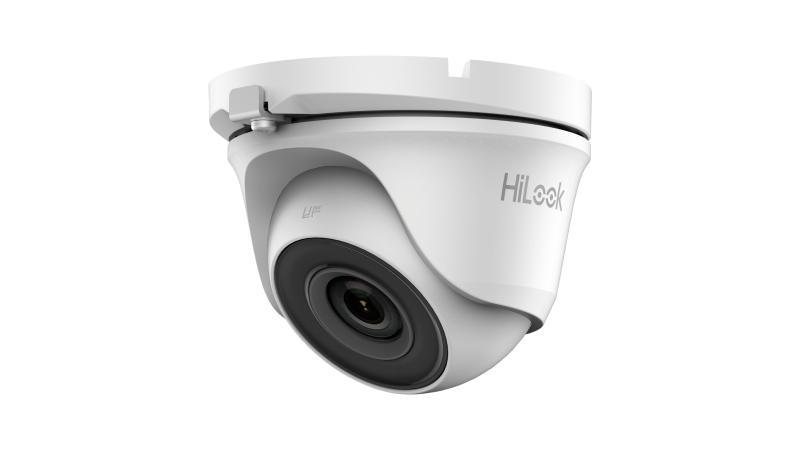

4 MP Fixed Turret Camera

  • 4 MP turret camera
  • Smart IR: up to 20 m IR distance
  • Water and dust resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
View Less
View more
Data Sheet
Sales Inquiry

Available models:

THC-T140-M(2.8mm)(HiLook STD)
THC-T140-M(3.6mm)(HiLook STD)
THC-T140-M
EOL
Data Sheet

Specification

  • Kamera
  • Image Sensor4 MP CMOS image sensor
  • Max. Resolution2560 (H) × 1440 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1/25 (1/30) s to 1/50,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm
  • Focal Length & FOV100.2° (2.8 mm), 88° (3.6 mm), 56.9° (6 mm)
  • Lens MountM12
  • Image
  • Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
  • Frame RatePAL: 1080p@25fps, 4 MP@25fps,NTSC: 1080p@30fps, 4 MP@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)DWDR
  • Image EnhancementBLC
  • AGCHigh/Medium/Low/Off
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialMetal
  • DimensionØ 82.6 mm × 69.66 mm (Ø 3.25" × 2.74")
  • Weight230 g (0.51 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • LanguageEnglish
  • Power SupplyDC12V
  • ConsumptionMax. 4 W
  • IR RangeUp to 20 m
  • Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Kamera
Image Sensor
4 MP CMOS image sensor
Max. Resolution
2560 (H) × 1440 (V)
Min. Illumination
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
1/25 (1/30) s to 1/50,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm, 6 mm
Focal Length & FOV
100.2° (2.8 mm), 88° (3.6 mm), 56.9° (6 mm)
Lens Mount
M12
Image Settings
Brightness, Sharpness, DNR, Mirror, Smart IR
Frame Rate
PAL: 1080p@25fps, 4 MP@25fps,NTSC: 1080p@30fps, 4 MP@30fps
Day/Night Mode
Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)
DWDR
Image Enhancement
BLC
AGC
High/Medium/Low/Off
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Metal
Dimension
Ø 82.6 mm × 69.66 mm (Ø 3.25" × 2.74")
Weight
230 g (0.51 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Language
English
Power Supply
DC12V
Consumption
Max. 4 W
IR Range
Up to 20 m
Approval
Protection
IP66
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Kamera
  • Image Sensor4 MP CMOS image sensor
  • Max. Resolution2560 (H) × 1440 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1/25 (1/30) s to 1/50,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm
  • Focal Length & FOV100.2° (2.8 mm), 88° (3.6 mm), 56.9° (6 mm)
  • Lens MountM12
  • Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
  • Frame RatePAL: 1080p@25fps, 4 MP@25fps,NTSC: 1080p@30fps, 4 MP@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)DWDR
  • Image EnhancementBLC
  • AGCHigh/Medium/Low/Off
Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
General
  • MaterialMetal
  • DimensionØ 82.6 mm × 69.66 mm (Ø 3.25" × 2.74")
  • Weight230 g (0.51 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • LanguageEnglish
  • Power SupplyDC12V
  • ConsumptionMax. 4 W
  • IR RangeUp to 20 m
Approval
  • ProtectionIP66
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.04.00_180115
Applied to:
THC-T140-M(2.8mm)(HiLook STD)
