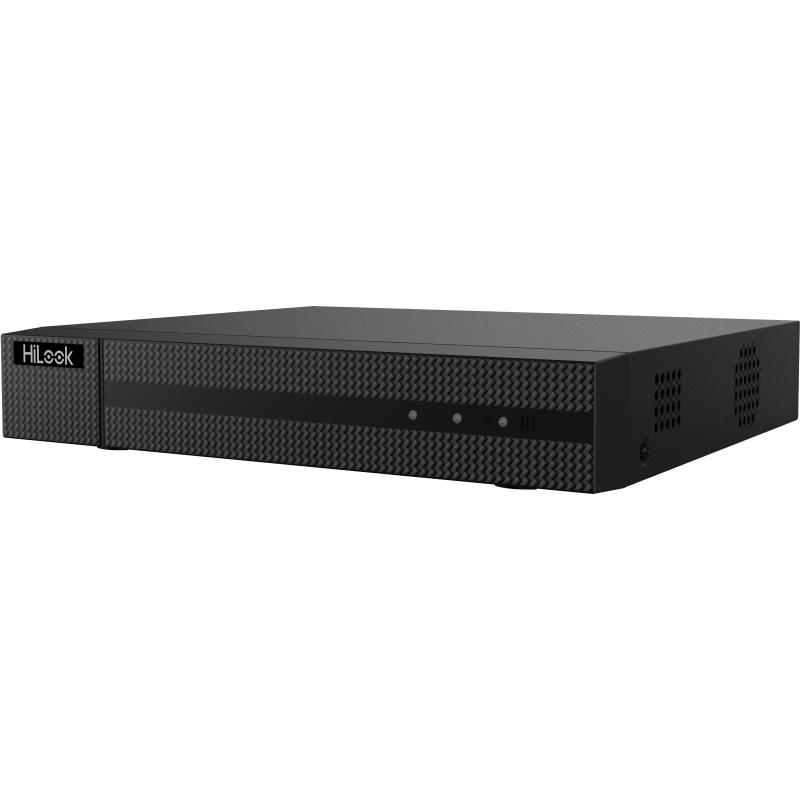

DVR-216G-K1

    EOL

    16-ch 1080p Lite 1U H.265 DVR

    • Deep learning based human and vehicle targets classification of Motion Detection 2.0
    • H.265 Pro+/H.265 Pro/H.265 video compression
    • HDTVI/AHD/CVI/CVBS/IP video inputs
    • Audio via coaxial cable
    • Up to 18-ch IP camera input (up to 5 MP)
    • Up to 1080p Lite@15 fps encoding capability
    • Max. 1200 m for 720p HDTVI signal

    View Less
    View more

    Available models:

    DVR-216G-K1(C)(S)

    Specification

    • Motion Detection 2.0
    • Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
    • Recording
    • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    • Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
    • Frame RateMain stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
    • Video Bitrate32 Kbps to 4 Mbps
    • Dual-streamSupport
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711u
    • Audio Bitrate64 Kbps
    • Video and Audio
    • IP Video Input2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
    • Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
    • HDTVI Input1080p25, 1080p30, 720p25, 720p30
    • AHD Input1080p25, 1080p30, 720p25, 720p30
    • HDCVI Input1080p25, 1080p30, 720p25, 720p30
    • CVBS InputPAL/NTSC
    • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    • Video Output ModeHDMI/VGA simultaneous output
    • Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
    • Synchronous Playback16-ch
    • Network
    • Total Bandwidth96 Mbps
    • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
    • Remote Connection128
    • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
    • Auxiliary Interface
    • SATA1, SATA interface
    • CapacityUp to 10 TB capacity for each disk
    • USB Interface2 × USB 2.0
    • General
    • Power Supply12 VDC, 1.6 A
    • Consumption≤ 10 W (without HDD)
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
    • Weight≤ 1.1 kg (without HDD, 2.4 lb.)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Motion Detection 2.0
    Human/Vehicle Analysis
    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
    Recording
    Video Compression
    H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    Encoding Resolution
    For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
    Frame Rate
    Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
    Video Bitrate
    32 Kbps to 4 Mbps
    Dual-stream
    Support
    Stream Type
    Video, Video & Audio
    Audio Compression
    G.711u
    Audio Bitrate
    64 Kbps
    Video and Audio
    IP Video Input
    2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
    Analog Video Input
    16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
    HDTVI Input
    1080p25, 1080p30, 720p25, 720p30
    AHD Input
    1080p25, 1080p30, 720p25, 720p30
    HDCVI Input
    1080p25, 1080p30, 720p25, 720p30
    CVBS Input
    PAL/NTSC
    HDMI Output
    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    VGA Output
    1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    Video Output Mode
    HDMI/VGA simultaneous output
    Audio Input
    1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
    Audio Output
    1-ch, RCA (Linear, 1 KΩ)
    Two-Way Audio
    1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
    Synchronous Playback
    16-ch
    Network
    Total Bandwidth
    96 Mbps
    Network Protocol
    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
    Remote Connection
    128
    Network Interface
    1, RJ45 10/100 Mbps self-adaptive Ethernet interface
    Auxiliary Interface
    SATA
    1, SATA interface
    Capacity
    Up to 10 TB capacity for each disk
    USB Interface
    2 × USB 2.0
    General
    Power Supply
    12 VDC, 1.6 A
    Consumption
    ≤ 10 W (without HDD)
    Working Temperature
    -10 °C to 55 °C (14 °F to 131 °F)
    Working Humidity
    10% to 90%
    Dimension (W × D × H)
    260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
    Weight
    ≤ 1.1 kg (without HDD, 2.4 lb.)
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Motion Detection 2.0
    • Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
    Recording
    • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    • Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
    • Frame RateMain stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
    • Video Bitrate32 Kbps to 4 Mbps
    • Dual-streamSupport
    • Stream TypeVideo, Video & Audio
    • Audio CompressionG.711u
    • Audio Bitrate64 Kbps
    Video and Audio
    • IP Video Input2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
    • Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
    • HDTVI Input1080p25, 1080p30, 720p25, 720p30
    • AHD Input1080p25, 1080p30, 720p25, 720p30
    • HDCVI Input1080p25, 1080p30, 720p25, 720p30
    • CVBS InputPAL/NTSC
    • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    • Video Output ModeHDMI/VGA simultaneous output
    • Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
    • Audio Output1-ch, RCA (Linear, 1 KΩ)
    • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
    • Synchronous Playback16-ch
    Network
    • Total Bandwidth96 Mbps
    • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
    • Remote Connection128
    • Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
    Auxiliary Interface
    • SATA1, SATA interface
    • CapacityUp to 10 TB capacity for each disk
    • USB Interface2 × USB 2.0
    General
    • Power Supply12 VDC, 1.6 A
    • Consumption≤ 10 W (without HDD)
    • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Working Humidity10% to 90%
    • Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
    • Weight≤ 1.1 kg (without HDD, 2.4 lb.)
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
