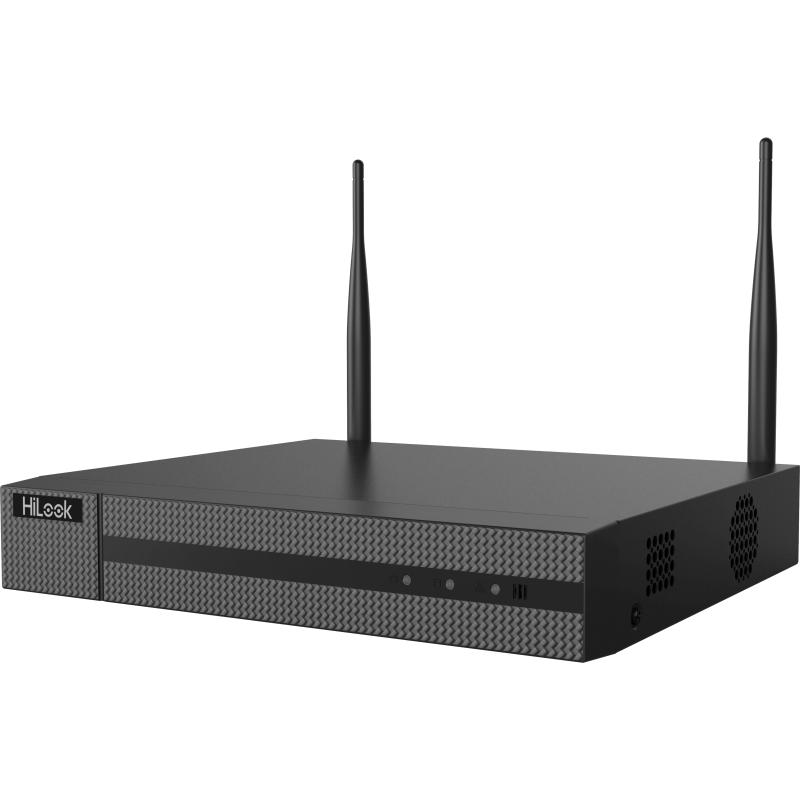

HiLook H.265 WiFi NVR

  • Up to 4 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4 MP high-definition live view, storage and playback
  • Up to 4-ch @ 4MP decoding capacity
  • 1 HDD for continuous video recording
  • Easy to install through automatic wireless connection
  • Easy to manage through Hik-Connect app
View Less
View more
Sales Inquiry

Available models:

NVR-104MH-D/W(C)
NVR-104MH-D/W(C)

Specification

  • System Parameter
  • Video input channel4
  • Video resolution6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Outgoing bandwidth40 Mbps
  • Incoming bandwidth50 Mbps
  • Video Parameter
  • Video output1-ch HDMI, 1-ch VGA
  • HDMI output1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
  • VGA output1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
  • Video decoding formatH.265;H.265+;H.264;H.264+
  • Decoding capability1-ch@6 MP (25 fps), 1-ch@5 MP (25 fps), 4-ch@4 MP (12 fps), 4-ch@1080p (25 fps)
  • Synchronous playback4
  • Audio Parameter
  • Two-way audioN/A
  • Audio decoding formatG.711ulaw;G.722;G.726;MP2L2
  • HDD Management
  • HDD No.1 SATA interface
  • Recording Management
  • Playback modeNormal/Smart, Event, Tag, Eternal File
  • Network Management
  • Network protocolIPv6, HTTP, UPnP, NTP, SADP, DDNS
  • External Port
  • Network interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Alarm inputN/A
  • Alarm outputN/A
  • Wireless Transmission
  • Wireless standard IEEE 802.11b/g/n
  • General Standard
  • Consumption (without HDD)≤ 10W
  • ChassisMini 1U
  • MaterialMetal box
  • Dimension265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight (without HDD)≤ 1.6 kg (3.5 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System Parameter
Video input channel
4
Video resolution
6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Outgoing bandwidth
40 Mbps
Incoming bandwidth
50 Mbps
Video Parameter
Video output
1-ch HDMI, 1-ch VGA
HDMI output
1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
VGA output
1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
Video decoding format
H.265;H.265+;H.264;H.264+
Decoding capability
1-ch@6 MP (25 fps), 1-ch@5 MP (25 fps), 4-ch@4 MP (12 fps), 4-ch@1080p (25 fps)
Synchronous playback
4
Audio Parameter
Two-way audio
N/A
Audio decoding format
G.711ulaw;G.722;G.726;MP2L2
HDD Management
HDD No.
1 SATA interface
Recording Management
Playback mode
Normal/Smart, Event, Tag, Eternal File
Network Management
Network protocol
IPv6, HTTP, UPnP, NTP, SADP, DDNS
External Port
Network interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Alarm input
N/A
Alarm output
N/A
Wireless Transmission
Wireless standard
IEEE 802.11b/g/n
General Standard
Consumption (without HDD)
≤ 10W
Chassis
Mini 1U
Material
Metal box
Dimension
265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
Weight (without HDD)
≤ 1.6 kg (3.5 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System Parameter
  • Video input channel4
  • Video resolution6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Outgoing bandwidth40 Mbps
  • Incoming bandwidth50 Mbps
Video Parameter
  • Video output1-ch HDMI, 1-ch VGA
  • HDMI output1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
  • VGA output1024×768/60Hz，1280×720/60Hz，1280×1024/60Hz， 1920×1080p/60Hz
  • Video decoding formatH.265;H.265+;H.264;H.264+
  • Decoding capability1-ch@6 MP (25 fps), 1-ch@5 MP (25 fps), 4-ch@4 MP (12 fps), 4-ch@1080p (25 fps)
  • Synchronous playback4
Audio Parameter
  • Two-way audioN/A
  • Audio decoding formatG.711ulaw;G.722;G.726;MP2L2
HDD Management
  • HDD No.1 SATA interface
Recording Management
  • Playback modeNormal/Smart, Event, Tag, Eternal File
Network Management
  • Network protocolIPv6, HTTP, UPnP, NTP, SADP, DDNS
External Port
  • Network interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Alarm inputN/A
  • Alarm outputN/A
Wireless Transmission
  • Wireless standard IEEE 802.11b/g/n
General Standard
  • Consumption (without HDD)≤ 10W
  • ChassisMini 1U
  • MaterialMetal box
  • Dimension265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight (without HDD)≤ 1.6 kg (3.5 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_Asia_V4.30.101_240520
Firmware_Europe_V4.30.101_240520
Applied to:
NVR-104MH-D/W(C)
