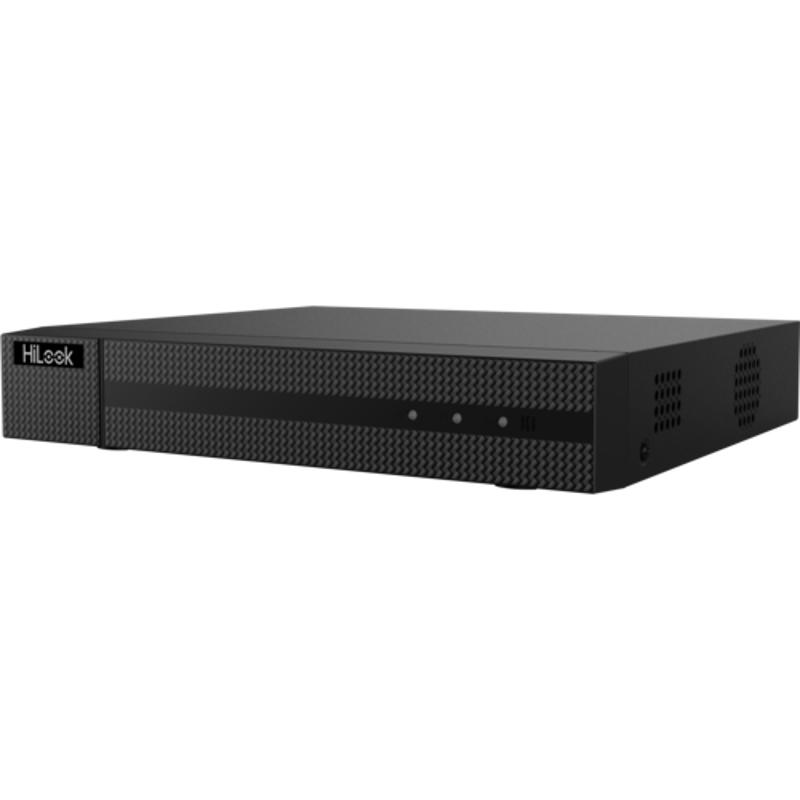

4-ch Mini 1U 4 PoE 4K NVR

  • Up to 4-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
  • Up to 40 Mbps incoming bandwidth

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-HiLookI-NVR-104MH-C/4P
DS-HiLookI-NVR-104MH-C/4P
NVR-104MH-C/4P(C)
NVR-104MH-C/4P(D)
NVR-104MH-C/4P
Data Sheet

Specification

  • Video and Audio
  • IP Video Input4-ch
  • HDMI OutputHDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  • VGA Input1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth80Mbps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)
  • Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264,MPEG4
  • Decoding Capability1-ch @ 8 MP / 4-ch @ 1080p
  • Synchronous playback4-ch
  • Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Network
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface4-ch
  • Power≤ 50 W
  • StandardIEEE 802.3 af/at
  • RAID
  • RAID TypeNo
  • Auxiliary Interface
  • SATA1
  • CapacityUp to 8TB capacity for each disk
  • USB Interface2 × USB 2.0
  • General
  • Power Supply48 VDC, 1.35 A
  • Consumption≤ 10 W (without enabling PoE)
  • Working Temperature-10 to +55° C (14 to 131° F)
  • Working Humidity10 to 90 %
  • Chassis1U
  • Dimension (W × D × H)265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
  • Weight≤ 1 kg (2.2 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
4-ch
HDMI Output
HDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
VGA Input
1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
80Mbps
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264,MPEG4
Decoding Capability
1-ch @ 8 MP / 4-ch @ 1080p
Synchronous playback
4-ch
Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface
4-ch
Power
≤ 50 W
Standard
IEEE 802.3 af/at
RAID
RAID Type
No
Auxiliary Interface
SATA
1
Capacity
Up to 8TB capacity for each disk
USB Interface
2 × USB 2.0
General
Power Supply
48 VDC, 1.35 A
Consumption
≤ 10 W (without enabling PoE)
Working Temperature
-10 to +55° C (14 to 131° F)
Working Humidity
10 to 90 %
Chassis
1U
Dimension (W × D × H)
265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Weight
≤ 1 kg (2.2 lb)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input4-ch
  • HDMI OutputHDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
  • VGA Input1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth80Mbps
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ)
Decoding
  • Decoding FormatH.265+,H.265,H.264+,H.264,MPEG4
  • Decoding Capability1-ch @ 8 MP / 4-ch @ 1080p
  • Synchronous playback4-ch
  • Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
  • Interface4-ch
  • Power≤ 50 W
  • StandardIEEE 802.3 af/at
RAID
  • RAID TypeNo
Auxiliary Interface
  • SATA1
  • CapacityUp to 8TB capacity for each disk
  • USB Interface2 × USB 2.0
General
  • Power Supply48 VDC, 1.35 A
  • Consumption≤ 10 W (without enabling PoE)
  • Working Temperature-10 to +55° C (14 to 131° F)
  • Working Humidity10 to 90 %
  • Chassis1U
  • Dimension (W × D × H)265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
  • Weight≤ 1 kg (2.2 lb)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V4.72.110_230620
Applied to:
NVR-104MH-C/4P(C)
Firmware_V4.83.006_240910
K21B2_V4.83.006 build240910_ReleaseNotes
Applied to:
NVR-104MH-C/4P(D)
