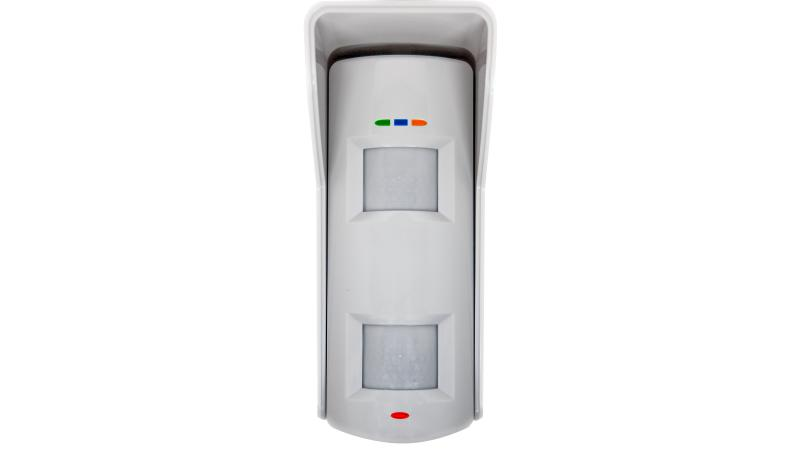

Wireless Triple Signal Detector

  • Detection range: 10 m x 10 m, 90 degrees
  • RF 868MHz
  • Offers reliable protection utilizing two-way wireless technology
  • 2 x PIR + microwave detection
  • Pet immunity up to 10 kg
  • Supports anti-masking, anti-blocking
  • Weatherproof sealed optics
  • Communicates up to 800 m (in open areas)
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PD2-T10P-WEH(868M)
DS-PD2-T10P-WEH(868M)
Data Sheet

Specification

  • Detection performance
  • Detection Range10m
  • Detection Angle90°
  • Velocity range0.25m/s ~ 2.5m/s
  • Pet Immunity10kg
  • Software features
  • Tamper-ProofSupport
  • Hardware features
  • IndicatorTri-color LED Indicator
  • RF transmission
  • RF Frequency868MHz
  • RF Range800m (in open area)
  • Electrical characteristics
  • Battery type2×3V 4700mAH Lithium Battery packs
  • Battery life span3 years
  • General
  • Operation temperature-25℃ ~ +60℃
  • Dimension(WxHxD)180mm*80mm*105mm
  • Weight300g (without bracket)
  • Application scenarioOutdoor
  • ColorWhite
  • Installation height1.8 ~ 2.4m
  • Installation methodWall mounted
  • BracketAdditional Wallbracket, Adaptor and Fixedbracket
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection performance
Detection Range
10m
Detection Angle
90°
Velocity range
0.25m/s ~ 2.5m/s
Pet Immunity
10kg
Software features
Tamper-Proof
Support
Hardware features
Indicator
Tri-color LED Indicator
RF transmission
RF Frequency
868MHz
RF Range
800m (in open area)
Electrical characteristics
Battery type
2×3V 4700mAH Lithium Battery packs
Battery life span
3 years
General
Operation temperature
-25℃ ~ +60℃
Dimension(WxHxD)
180mm*80mm*105mm
Weight
300g (without bracket)
Application scenario
Outdoor
Color
White
Installation height
1.8 ~ 2.4m
Installation method
Wall mounted
Bracket
Additional Wallbracket, Adaptor and Fixedbracket
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Detection performance
  • Detection Range10m
  • Detection Angle90°
  • Velocity range0.25m/s ~ 2.5m/s
  • Pet Immunity10kg
Software features
  • Tamper-ProofSupport
Hardware features
  • IndicatorTri-color LED Indicator
RF transmission
  • RF Frequency868MHz
  • RF Range800m (in open area)
Electrical characteristics
  • Battery type2×3V 4700mAH Lithium Battery packs
  • Battery life span3 years
General
  • Operation temperature-25℃ ~ +60℃
  • Dimension(WxHxD)180mm*80mm*105mm
  • Weight300g (without bracket)
  • Application scenarioOutdoor
  • ColorWhite
  • Installation height1.8 ~ 2.4m
  • Installation methodWall mounted
  • BracketAdditional Wallbracket, Adaptor and Fixedbracket
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
