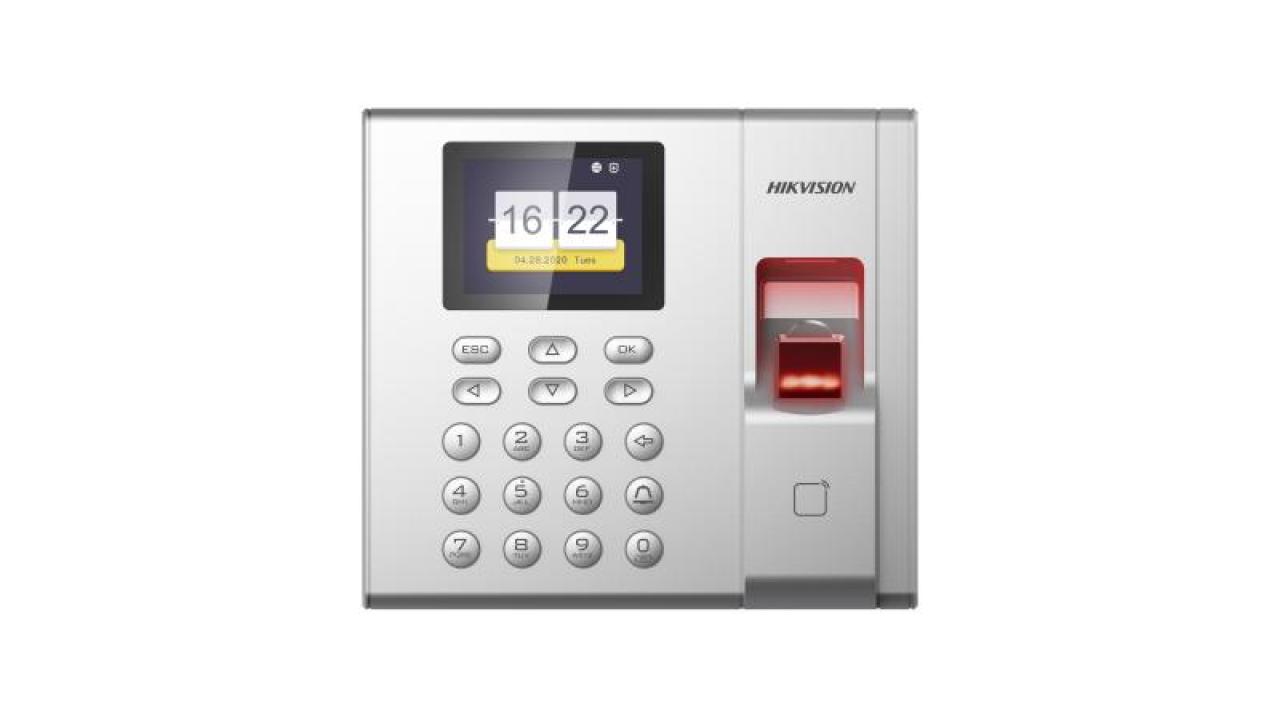

K1T8003 Value Series Fingerprint Time Attendance Terminal

2.4-inch LCD Display Fingerprint Access Control Terminal, Built-in Mifare card reading module
Communication: TCP/IP，ISUP5.0 ； 1000 users, 1000 fingerprints，1000 card and Max. 100,000 event records
Support Access Control and Time Attendance Function, Optical Fingerprint Module
Remotely opens door via Hik-Connect mobile client；Tamper alarm.

View Less

Data Sheet

Available models:

DS-K1T8003MF

Specification
Resources
Accessories

Data Sheet

Display
Screen size2.4-inch
TypeLCD-TFT display screen

Audio
Audio output1 loudspeaker, 1 buzzer

Network
Wired networkTCP/IP, 10/100Mbps, self-adaptive
Communication protocolTCP/IP, ISUP

Interface
Network interface1
Lock control1
Exit button1
Door contact input1
TAMPER1
USB1

Capacity
Card capacity1000
Fingerprint capacity1000
Event capacity100,000

Authentication
Card typeM1 card
Card reading distance0 to 5 cm
Fingerprint moduleOptical fingerprint module
Fingerprint comparing mode1:1 and 1:N
Fingerprint recognition duration＜ 1 s

General
Power supply12 VDC/1 A
Working temperature-10 °C to +55 °C (14 °F to +131 °F)
Working humidity10% to 90% (no condensing)
ColorSilver
Dimensions140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
Self Service Reports (SSR)Stand-alone operation, calculate attendance data and export reports via USB interface
InstallationWall mounting
WeightGross weight: 0.78 kg (1.72 lbs) Net weight: 0.22 kg (0.48 lbs)

Display

Screen size

2.4-inch

Type

LCD-TFT display screen

Audio

Audio output

1 loudspeaker, 1 buzzer

Network

Wired network

TCP/IP, 10/100Mbps, self-adaptive

Communication protocol

TCP/IP, ISUP

Interface

Network interface

1

Lock control

1

Exit button

1

Door contact input

1

TAMPER

1

USB

1

Capacity

Card capacity

1000

Fingerprint capacity

1000

Event capacity

100,000

Authentication

Card type

M1 card

Card reading distance

0 to 5 cm

Fingerprint module

Optical fingerprint module

Fingerprint comparing mode

1:1 and 1:N

Fingerprint recognition duration

＜ 1 s

General

Power supply

12 VDC/1 A

Working temperature

-10 °C to +55 °C (14 °F to +131 °F)

Working humidity

10% to 90% (no condensing)

Color

Silver

Dimensions

140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")

Self Service Reports (SSR)

Stand-alone operation, calculate attendance data and export reports via USB interface

Installation

Wall mounting

Weight

Gross weight: 0.78 kg (1.72 lbs) Net weight: 0.22 kg (0.48 lbs)
