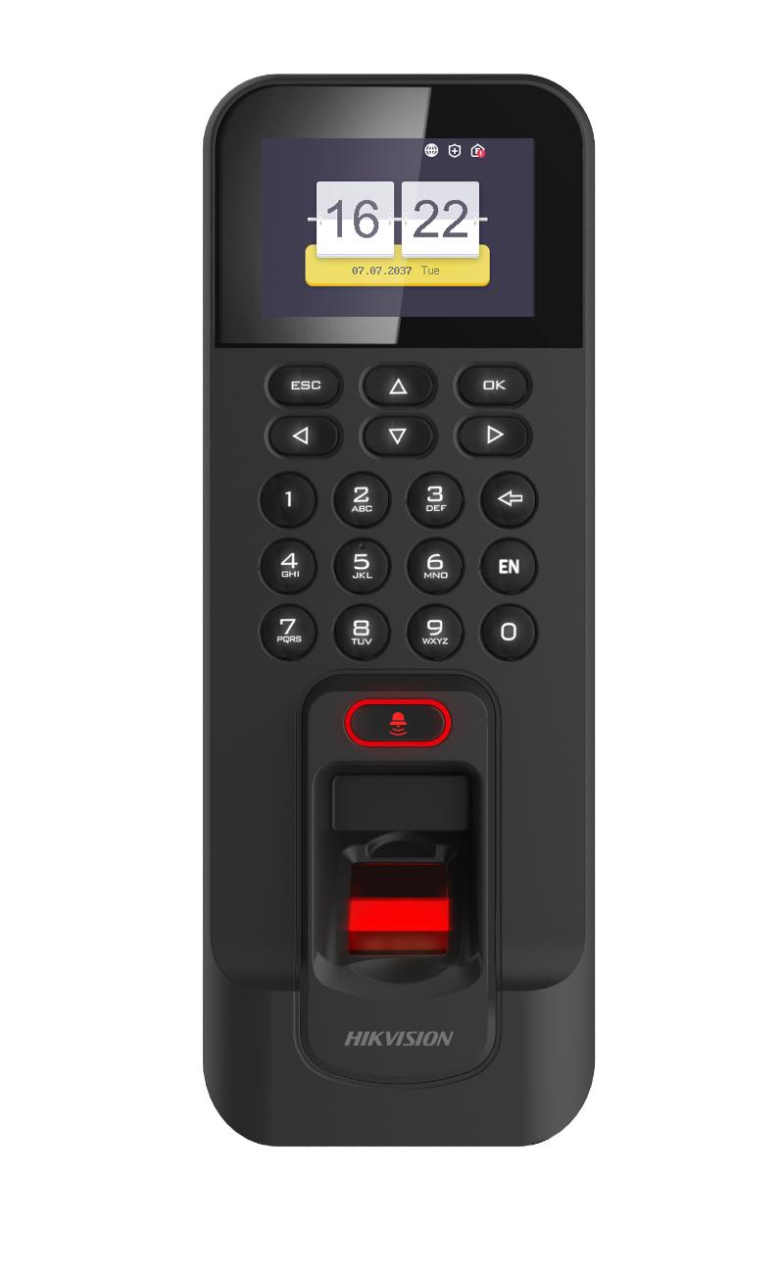

K1T804 Value Series Fingerprint Access Terminal

View Less

General
Communication InterfaceTCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
Power Supply12 VDC/2 A
Audio1 Buzzer and 1 Loudspeaker
LED IndicatorPower/Status (Red/Green)
LCD Screen2.4-inch (320 × 240 LCD-TFT Display Screen)
Fingerprint CapacityUp to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
StorageUp to 3000 Valid Cards;Up to 100,000 Event Records; Up to 150,000 Attendance Records
Card Reading ModeNot Support
Input InterfaceExit Button × 1, Door Sensor × 1 and Alarm Input × 1
Output InterfaceRelay (Lock Output) × 1, and Alarm Output × 1
Operating SystemLinux
Fingerprint Comparing Mode1:1 and 1:N, N=3000
Card Reading Response Duration< 1 s
Fingerprint Authentication Duration< 1 s
FAR(False Accept Rate)≤ 0.001 %
FRR (False Rejection Rate)≤ 0.01 %
Fingerprint RecognizerOptical Fingerprint Recognizer Module
External Card ReaderStandard Wiegand26/34
Card Reading DistanceNot Support
KeyboardKeyboard (Back Light)
Reset Key× 1
Wi-FiSupport
Wiegand InterfaceOutput: Wiegand 26/34;Input: Wiegand 26/34
Transmission RateTCP/IP: 10/100Mbps, Self-adaptive;RS485: 19200 bps-N-8-1
USBUSB 2.0; Type A

General

Communication Interface

TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)

Working Temperature

-10 ° C to 55 ° C (14 ° F to 131 ° F)

Power Supply

12 VDC/2 A

Audio

1 Buzzer and 1 Loudspeaker

LED Indicator

Power/Status (Red/Green)
