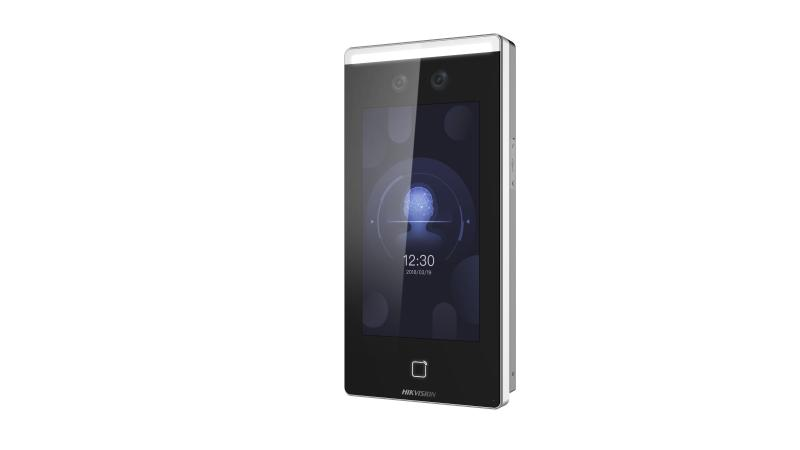

Ultra Face Recognition Terminals

  • Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
  • 7-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
  • Face recognition distance (without face mask): 0.3 m to 3 m, Duration < 0.2 s/User, Accuracy rate ≥ 99%
  • Max. 50,000 faces, Max. 50,000 cards
  • Two-way audio with client software,indoor station, and main station
  • Supports TCP/IP,Wi-Fi
  • Configuration via the web client
  • Supports ISAPI and ISUP5.0 protocol
  • IP65
View Less
View more

Available models:

DS-K1T671TMW

Specification

  • System
  • Operation systemLinux
  • general
  • FOV HFOV= 46°;VFOV=87°
  • Display
  • Dimensions7-inch
  • TypeLCD
  • Operation methodCapacitive touch screen
  • Video
  • Pixel2 MP
  • Lens2
  • Audio
  • Tone qualityNoise suppression and echo cancellation
  • Network
  • Wired network10 M/100 M/1000 M self-adaptive
  • Wi-FiSupport
  • Interface
  • Network interface1
  • RS-4851
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • IO input2
  • IO output1
  • Power interface2-pin
  • TAMPER1
  • USB2
  • Capacity
  • Card capacity50,000
  • Face capacity50,000
  • Event capacity100,000
  • Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Card reading distance0 to 5 cm
  • Face recognition duration< 0.2 s per person
  • Face recognition accuracy rate≥ 99%
  • Face recognition distance0.3 to 3 m (Without face mask)
  • General
  • Power supply method2 pin connecter
  • Power supply12 VDC/ 2 A
  • Working temperature-30 ℃ to 60 ℃ (-22 °F to 140 °F)
  • Working humidity10 to 90% (No condensing)
  • Dimensions239 mm × 116.5 mm × 33 mm (9.4" × 4.6" × 1.3")
  • Protective levelIP65
  • InstallationWall mounting
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
  • PlatformHik-ProConnect and HikCentral Professional
  • Function
  • Face anti-spoofingSupport
  • AdvertisementSupport
  • Audio promptSupport
  • Time synchronizationSupport

Specification

Specification
System
  • Operation systemLinux
general
  • FOV HFOV= 46°;VFOV=87°
Display
  • Dimensions7-inch
  • TypeLCD
  • Operation methodCapacitive touch screen
Video
  • Pixel2 MP
  • Lens2
Audio
  • Tone qualityNoise suppression and echo cancellation
Network
  • Wired network10 M/100 M/1000 M self-adaptive
  • Wi-FiSupport
Interface
  • Network interface1
  • RS-4851
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • IO input2
  • IO output1
  • Power interface2-pin
  • TAMPER1
  • USB2
Capacity
  • Card capacity50,000
  • Face capacity50,000
  • Event capacity100,000
Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Card reading distance0 to 5 cm
  • Face recognition duration< 0.2 s per person
  • Face recognition accuracy rate≥ 99%
  • Face recognition distance0.3 to 3 m (Without face mask)
General
  • Power supply method2 pin connecter
  • Power supply12 VDC/ 2 A
  • Working temperature-30 ℃ to 60 ℃ (-22 °F to 140 °F)
  • Working humidity10 to 90% (No condensing)
  • Dimensions239 mm × 116.5 mm × 33 mm (9.4" × 4.6" × 1.3")
  • Protective levelIP65
  • InstallationWall mounting
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
  • PlatformHik-ProConnect and HikCentral Professional
Function
  • Face anti-spoofingSupport
  • AdvertisementSupport
  • Audio promptSupport
  • Time synchronizationSupport
