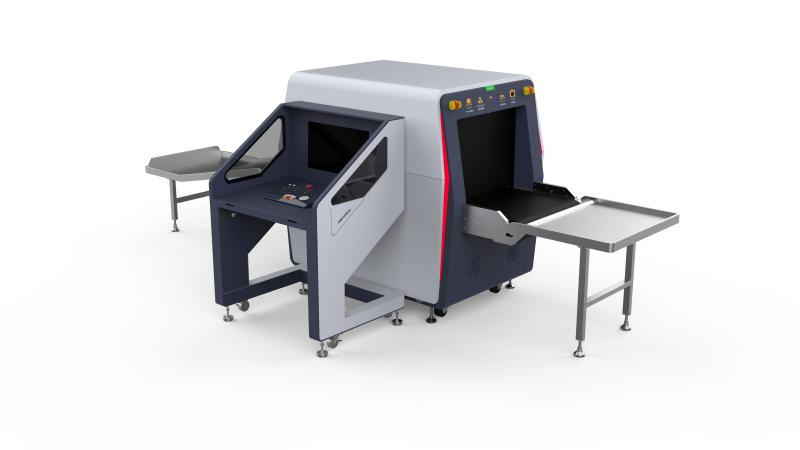

Intelligent X-Ray Security Inspection System

Raytina new generation image enhancement engine, using advanced intelligent image imaging algorithm, signal-to-noise ratio optimization obvious imaging more delicate, image clearer, more prominent details.
Advanced material properties identification technology can effectively identify the equivalent of atomic number of item(such as metal and organics) and give a different color
Intelligent recognition technology is a deep learning recognition algorithm with full independent intellectual property rights, which realizes the integration of intelligent recognition algorithm and X-ray imaging software, and achieves better recognition effect
The radiation leakage dose rate is far lower than the relevant international standards
The conveyor speed can be adjusted according to the field efficiency to meet the different needs of high efficiency and energy saving
Double lead curtain design effectively reduce the radiation lead shade place
Supports access to Hik-central, and implement the data upload
Support security check machine video, picture, alarm information local and network storage, view,playback
Event tracing can organically combine X-ray image with passenger video information to realize human package tracing
Supports login with Password and fingerprint authentication,energy saving light barrier sensor, operation training system
Brand new appearance and exquisite manufacturing technology, high standard quality control give products high reliability and long life

View Less

Available models:

ISD-SC6550S-4CVL(220V)

ISD-SC6550S-4CVL

Specification
Resources
Accessories

Dimension Parameters
Tunnel Size660mm Wx505 mm H

Specification Parameters
Max. load150 kg (330.69 lb)
Conveyor speed0.2m/s, 0.3m/s, 0.4m/s adjustable

Performance Parameters
Penetration30mm standard,36 mm typical 40+mm by customize
Wire resolution38AWG standard, 40AWG typical
Spatial resolution Vertical: 1.0 mm (0.04") Horizontal: 1.0 mm (0.04")

General Standard
Power Consumption0.8 kw
Weight530 kg (1058.22lb)

Radiation Dose
X-ray dose per inspection< 5 μGy
X-ray leakage< 1 μGy/h

Other Parameters
X-ray generatorAnode Voltage: 160KV 100% Oil Cooling, Single generator, vertical beam direction.

General
Power Supply220 VAC/110 VAC (-10% to +15%), 50 Hz /60 Hz(±3 Hz)
Working Temperature0 °C to 40 ° C (41 °F to 104 °F)
Working Humidity0% to 90%
Dimension (W × H × D)Main engine appearance dimensions:2127 mm × 989 mm × 1351mm (L x W x H) Single display professional operation Desk Size:850mmx 700mm x 1200mm (L x W x H)

Dimension Parameters

Tunnel Size

660mm Wx505 mm H

Specification Parameters

Max. load

150 kg (330.69 lb)

Conveyor speed

0.2m/s, 0.3m/s, 0.4m/s adjustable

Performance Parameters

Penetration

30mm standard,36 mm typical 40+mm by customize

Wire resolution

38AWG standard, 40AWG typical

Spatial resolution

Vertical: 1.0 mm (0.04") Horizontal: 1.0 mm (0.04")

General Standard

Power Consumption

0.8 kw

Weight

530 kg (1058.22lb)

Radiation Dose

X-ray dose per inspection

< 5 μGy

X-ray leakage

< 1 μGy/h

Other Parameters

X-ray generator

Anode Voltage: 160KV 100% Oil Cooling, Single generator, vertical beam direction.

General

Power Supply

220 VAC/110 VAC (-10% to +15%), 50 Hz /60 Hz(±3 Hz)

Working Temperature

0 °C to 40 ° C (41 °F to 104 °F)

Working Humidity

0% to 90%

Dimension (W × H × D)

Main engine appearance dimensions:2127 mm × 989 mm × 1351mm (L x W x H) Single display professional operation Desk Size:850mmx 700mm x 1200mm (L x W x H)
