*Images are for illustrative purposes. Actual product appearance and specifications may vary.
add compare icon

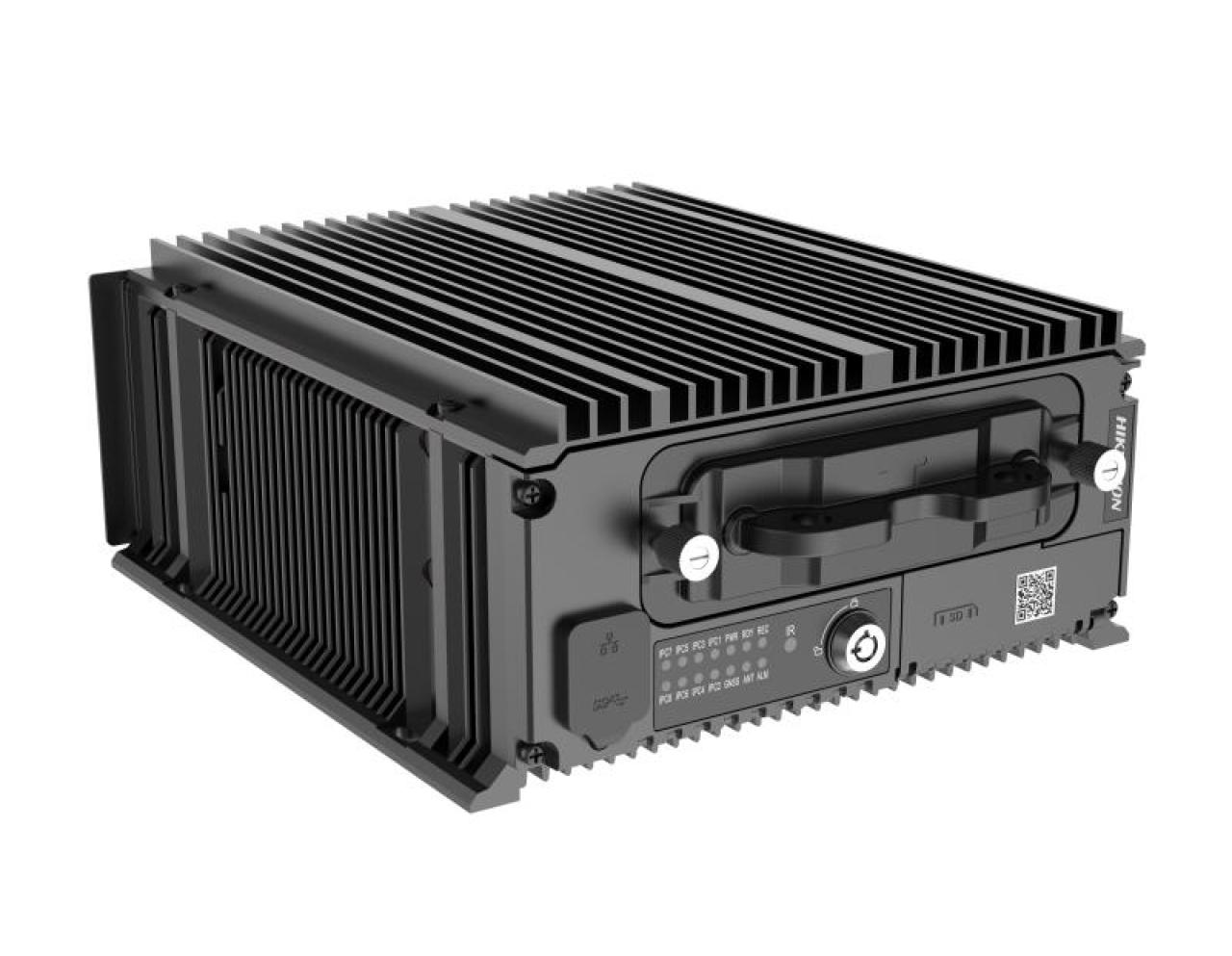

AE-MN7163(RJ45)

  • 16-ch IP cameras connectable via PoE interfaces.
  • Up to 5MP resolution of H.264/H.265 compression for each IP camera.
  • Supports 2 × 2.5-inch SSD/HDD , where each SSD can be up to 4TB and each HDD can be up to 2TB.
  • User-friendly GUI providing easy and flexible operations.
  • Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
  • Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
  • Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
  • Specialized aviation connectors ensuring signal stability.
  • Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
  • Build-in super-capacitor prevents the mobile NVR from damage caused by sudden power outage.
  • Wide-range power input (+9 VDC to +36 VDC).
  • Power-off protection prevents key data loss.
  • Aluminum die-cast chassis with no fan design well adaptable to working environment.
  • Software-based firewall supported.
  • Supports accessing via WEB browser.
  • Supports recording backup on redundant HDD/SSDs.
View Less
View more
Sales Inquiry

Available models:

AE-MN7163(RJ45)
View more View Less
AE-MN7163(RJ45)

Specification

  • Video/Audio Input
  • Two-way Audio1, integrated in EXT.DEV interface
  • IP Camera16-ch connected via PoE interfaces
  • Video/Audio Output
  • Audio Output1, integrated in EXT.DEV interface
  • Video OutputAHD: 1, integrated in EXT.DEV interface,default AHD,configurable CVBS/AHD VGA: 1
  • Encoding/Decoding Parameters
  • Video CompressionH.265,H.264, Smart H.264 and Smart H.265
  • Audio CompressionG.711a/G.711u/G.722.1/G.726
  • Audio Bit Rate16 Kbps to 64Kbps
  • Stream TypeVideo, video & audio
  • Dual StreamSupported
  • Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
  • Wireless Network
  • Wi-FiWI2.4G model: 1 × 2.4 G , WI5.8G model: 2 × 5.8 G (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module)
  • Dial-up1 × 4G card slot, 1 ×FAKRA antenna 5G module(optional) Warning: Industrial SIM cards should be used for the devices. We will not be responsible for any issue caused by using general SIM cards.
  • Storage
  • SD Card Storage1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）
  • HDD/SDD2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional)
  • Auxiliary Interface
  • Network InterfaceFront panel :1 ×10M/100M/1000M RJ45 Rear panel: 1 × 10M/100M/1000M RJ45 Note：The front and rear network ports are at same network segments
  • Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
  • Alarm Output2 relay signal outputs
  • Sensor-in4 high/low level signal inputs
  • Serial Number Interface2 × RS-232(harness is optional) 3 × RS-485 (1 integrated in EXT.DEV interface)
  • USB InterfaceFront panel: 1 × USB 3.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)
  • CAN Interface2 × CAN interface
  • Positioning
  • GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna
  • Sensor
  • G-SensorBuilt-in,6-axis gyroscope
  • General
  • Product Dimension202 mm × 267.6 mm × 93.9 mm (7.95" × 10.54" × 3.7")
  • Power Supply+9 to +36 VDC
  • Power ConsumptionStandby: ≤ 0.5 W Full load: ≤ 99 W Note: Without peripheral and storage media ≤ 20 W
  • Operating Temperature-25 °C to +70 °C (-13 °F to +158°F)
  • Operating Humidity10% to 95% (non-condensing)
  • Operation MethodMouse, IR remote control, Web control, and display screen
  • Weight (Without Storage Media)3.04 kg
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video/Audio Input
Two-way Audio
1, integrated in EXT.DEV interface
IP Camera
16-ch connected via PoE interfaces
Video/Audio Output
Audio Output
1, integrated in EXT.DEV interface
Video Output
AHD: 1, integrated in EXT.DEV interface,default AHD,configurable CVBS/AHD VGA: 1
Encoding/Decoding Parameters
Video Compression
H.265,H.264, Smart H.264 and Smart H.265
Audio Compression
G.711a/G.711u/G.722.1/G.726
Audio Bit Rate
16 Kbps to 64Kbps
Stream Type
Video, video & audio
Dual Stream
Supported
Frame Rate
PAL: 1 to 25 fps; NTSC: 1 to 30 fps
Wireless Network
Wi-Fi
WI2.4G model: 1 × 2.4 G , WI5.8G model: 2 × 5.8 G (Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module)
Dial-up
1 × 4G card slot, 1 ×FAKRA antenna 5G module(optional) Warning: Industrial SIM cards should be used for the devices. We will not be responsible for any issue caused by using general SIM cards.
Storage
SD Card Storage
1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）
HDD/SDD
2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB HDD/SSD data can be exported locally via this converter (optional) Hard Disk Case with heating function (optional)
Auxiliary Interface
Network Interface
Front panel :1 ×10M/100M/1000M RJ45 Rear panel: 1 × 10M/100M/1000M RJ45 Note：The front and rear network ports are at same network segments
Alarm Input
4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input
Alarm Output
2 relay signal outputs
Sensor-in
4 high/low level signal inputs
Serial Number Interface
2 × RS-232(harness is optional) 3 × RS-485 (1 integrated in EXT.DEV interface)
USB Interface
Front panel: 1 × USB 3.0 Rear panel: 1 × USB 2.0 (5-pin aviation connector)
CAN Interface
2 × CAN interface
Positioning
GNSS (Global Navigation Satellite System)
GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna
Sensor
G-Sensor
Built-in,6-axis gyroscope
General
Product Dimension
202 mm × 267.6 mm × 93.9 mm (7.95" × 10.54" × 3.7")
Power Supply
+9 to +36 VDC
Power Consumption
Standby: ≤ 0.5 W Full load: ≤ 99 W Note: Without peripheral and storage media ≤ 20 W
Operating Temperature
-25 °C to +70 °C (-13 °F to +158°F)
Operating Humidity
10% to 95% (non-condensing)
Operation Method
Mouse, IR remote control, Web control, and display screen
Weight (Without Storage Media)
3.04 kg
For better user experience, we highly recommend you to update your device to the latest firmware asap.
