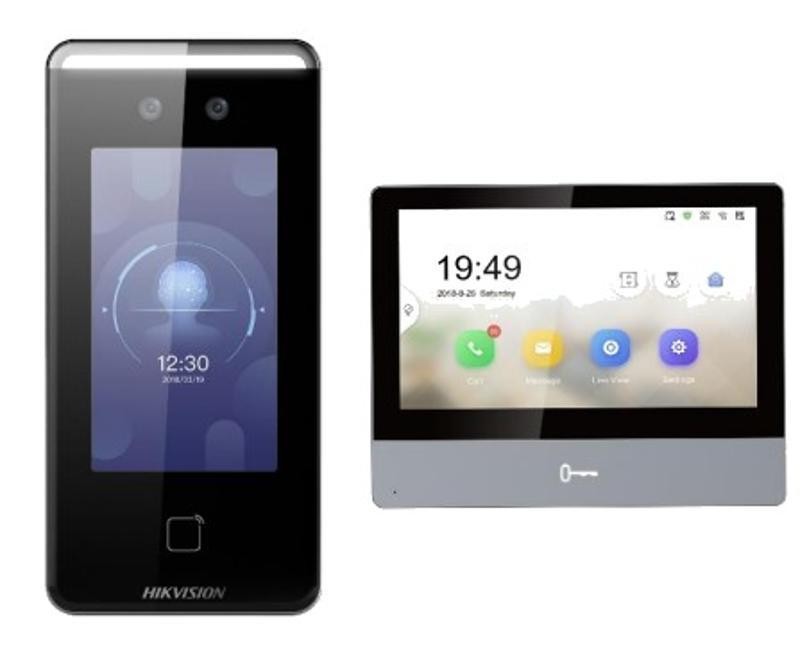

Facial IP Intercom Kit

  • MinMoe face recognition terminal and indoor station bundle for villa or commercial
  • One call button for easier calls
  • Supports Wi-Fi and PoE power supply for easy installation
  • Including: DS-K1T341AM × 1, DS-KH8350-WTE1 × 1, PSU × 2, 16GB TF card × 1
  • Power adapter included in the package

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KIS901-P

Facial IP Intercom Kit

  • MinMoe face recognition terminal and indoor station bundle for villa or commercial
  • One call button for easier calls
  • Supports Wi-Fi and PoE power supply for easy installation
  • Including: DS-K1T341AM × 1, DS-KH8350-WTE1 × 1, PSU × 2, 16GB TF card × 1
  • Power adapter included in the package

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-KIS901-P
DS-KIS901-P
Data Sheet

Specification

  • Face Recognition Terminal/Audio
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Volume adjustmentAdjust via device or client
  • Face Recognition Terminal/Authentication
  • Card typeM1 card
  • Card reading distance0 to 3 cm
  • Card reading duration< 1 s
  • Face recognition duration< 0.2 s
  • Face recognition distance0.3 to 1.5 m
  • Face Recognition Terminal/Camera
  • Pixel2 MP
  • WDRSupport
  • Lens2
  • Video standardPAL (Default) and NTSC
  • Face Recognition Terminal/Capacity
  • Card capacity1500
  • Face capacity1500
  • Event capacity150000
  • Face Recognition Terminal/Function
  • Face antispoofingSupport
  • Live viewSupports live view on the platform, H.264
  • Face recognitionSupports face recognition in low illumination
  • Access control managementSupport multiple authentication methods
  • Face Recognition Terminal/General
  • Protection levelIP65
  • Power supply 12 VDC, 2A
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Face Recognition Terminal/Interfaces
  • Network interface1, RJ45
  • RS-4861
  • WiegandWiegand 26 and Wiegand 34
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface1
  • TAMPER switch1
  • USB1, USB 2.0
  • Face Recognition Terminal/Network
  • Wired network10/100/1000 Mbps self-adaptive
  • Communication protocolISUP 5.0
  • Face Recognition Terminal/Screen
  • Size4.3-inch
  • Resolution800 × 480
  • Operation methodCapacitive touch screen
  • Face Recognition Terminal/System parameters
  • Operation systemEmbedded Linux operation system
  • Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash 32 MB
  • Indoor station/Display parameters
  • Display screen7-inch colorful IPS LCD
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen, physical button
  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps
  • Indoor station/Network parameters
  • Wired network 10/100 Mbps self-adaptive
  • Wireless networkWi-Fi 802.11 b/g/n
  • ProtocolTCP/IP, SIP, RTSP
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • Alarm input8-ch alarm inputs
  • I/O output2
  • TF cardMax to 32 G, SD 2.0 or lower version
  • Indoor station/General
  • Power supplyIEEE802.3af, standard PoE 12 VDC/1 A
  • Power consumption≤ 7 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimension (L x W x H)180 mm × 140 mm × 22.4 mm (7.09" ×5.51" × 0.88")
  • Power supply via detector12 V, 200 mA
  • Weight899 g (with packaging) 355 g (without packaging)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Face Recognition Terminal/Audio
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Volume adjustment
Adjust via device or client
Face Recognition Terminal/Authentication
Card type
M1 card
Card reading distance
0 to 3 cm
Card reading duration
< 1 s
Face recognition duration
< 0.2 s
Face recognition distance
0.3 to 1.5 m
Face Recognition Terminal/Camera
Pixel
2 MP
WDR
Support
Lens
2
Video standard
PAL (Default) and NTSC
Face Recognition Terminal/Capacity
Card capacity
1500
Face capacity
1500
Event capacity
150000
Face Recognition Terminal/Function
Face antispoofing
Support
Live view
Supports live view on the platform, H.264
Face recognition
Supports face recognition in low illumination
Access control management
Support multiple authentication methods
Face Recognition Terminal/General
Protection level
IP65
Power supply
12 VDC, 2A
Working temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity
0 to 90% (No condensing)
Face Recognition Terminal/Interfaces
Network interface
1, RJ45
RS-486
1
Wiegand
Wiegand 26 and Wiegand 34
Lock output
1
Exit button
1
Door contact input
1
Power interface
1
TAMPER switch
1
USB
1, USB 2.0
Face Recognition Terminal/Network
Wired network
10/100/1000 Mbps self-adaptive
Communication protocol
ISUP 5.0
Face Recognition Terminal/Screen
Size
4.3-inch
Resolution
800 × 480
Operation method
Capacitive touch screen
Face Recognition Terminal/System parameters
Operation system
Embedded Linux operation system
Indoor station/System parameters
Operation system
Embedded Linux operation system
Memory
128 MB
Flash
32 MB
Indoor station/Display parameters
Display screen
7-inch colorful IPS LCD
Display resolution
1024 × 600
Operation method
Capacitive touch screen, physical button
Indoor station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U
Audio compression Rate
64 Kbps
Indoor station/Network parameters
Wired network
10/100 Mbps self-adaptive
Wireless network
Wi-Fi 802.11 b/g/n
Protocol
TCP/IP, SIP, RTSP
Network interface
1 RJ-45 10/100 Mbps self-adaptive
Alarm input
8-ch alarm inputs
I/O output
2
TF card
Max to 32 G, SD 2.0 or lower version
Indoor station/General
Power supply
IEEE802.3af, standard PoE 12 VDC/1 A
Power consumption
≤ 7 W
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10% to 90%
Dimension (L x W x H)
180 mm × 140 mm × 22.4 mm (7.09" ×5.51" × 0.88")
Power supply via detector
12 V, 200 mA
Weight
899 g (with packaging) 355 g (without packaging)
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Face Recognition Terminal/Audio
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Volume adjustmentAdjust via device or client
Face Recognition Terminal/Authentication
  • Card typeM1 card
  • Card reading distance0 to 3 cm
  • Card reading duration< 1 s
  • Face recognition duration< 0.2 s
  • Face recognition distance0.3 to 1.5 m
Face Recognition Terminal/Camera
  • Pixel2 MP
  • WDRSupport
  • Lens2
  • Video standardPAL (Default) and NTSC
Face Recognition Terminal/Capacity
  • Card capacity1500
  • Face capacity1500
  • Event capacity150000
Face Recognition Terminal/Function
  • Face antispoofingSupport
  • Live viewSupports live view on the platform, H.264
  • Face recognitionSupports face recognition in low illumination
  • Access control managementSupport multiple authentication methods
Face Recognition Terminal/General
  • Protection levelIP65
  • Power supply 12 VDC, 2A
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
Face Recognition Terminal/Interfaces
  • Network interface1, RJ45
  • RS-4861
  • WiegandWiegand 26 and Wiegand 34
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface1
  • TAMPER switch1
  • USB1, USB 2.0
Face Recognition Terminal/Network
  • Wired network10/100/1000 Mbps self-adaptive
  • Communication protocolISUP 5.0
Face Recognition Terminal/Screen
  • Size4.3-inch
  • Resolution800 × 480
  • Operation methodCapacitive touch screen
Face Recognition Terminal/System parameters
  • Operation systemEmbedded Linux operation system
Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash 32 MB
Indoor station/Display parameters
  • Display screen7-inch colorful IPS LCD
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen, physical button
Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps
Indoor station/Network parameters
  • Wired network 10/100 Mbps self-adaptive
  • Wireless networkWi-Fi 802.11 b/g/n
  • ProtocolTCP/IP, SIP, RTSP
  • Network interface1 RJ-45 10/100 Mbps self-adaptive
  • Alarm input8-ch alarm inputs
  • I/O output2
  • TF cardMax to 32 G, SD 2.0 or lower version
Indoor station/General
  • Power supplyIEEE802.3af, standard PoE 12 VDC/1 A
  • Power consumption≤ 7 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimension (L x W x H)180 mm × 140 mm × 22.4 mm (7.09" ×5.51" × 0.88")
  • Power supply via detector12 V, 200 mA
  • Weight899 g (with packaging) 355 g (without packaging)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V1.0.2_231019
Firmware_V3.7.0_240524
Firmware_V2.2.96_241111
DS-K1T341A Series MinMoe Terminal Release Notes_V3.7.0_build231019
Applied to:
DS-KIS901-P
