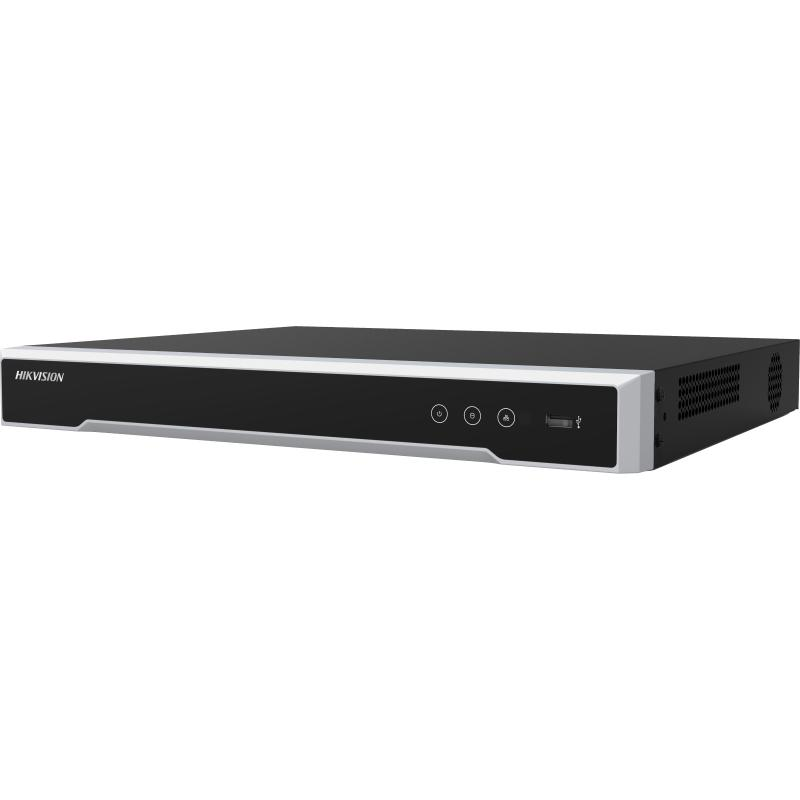

8-ch 1U 8 PoE 4K NVR

  • Up to 8-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
  • Up to 80 Mbps incoming bandwidth
  • Plug-and-play with 8 power over Ethernet (PoE) interfaces

Available models:

DS-7608NI-K2/8P
DS-7608NI-K2/8P(2T Seagate HDD)
DS-7608NI-K2/8P(D)

Specification

  • Video and Audio
  • IP Video Input8-ch
  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth160 Mbps
  • HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA independent output
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264/H.264+
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback8-ch
  • Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
  • Network
  • Remote Connection128-ch
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 120 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each HDD
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • Alarm In/Out4/1
  • General
  • Power Supply48VDC,2.5A
  • Consumption≤ 15 W (without HDD and PoE off)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
  • ≤ 3 kg (without HDD, 6.6 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
