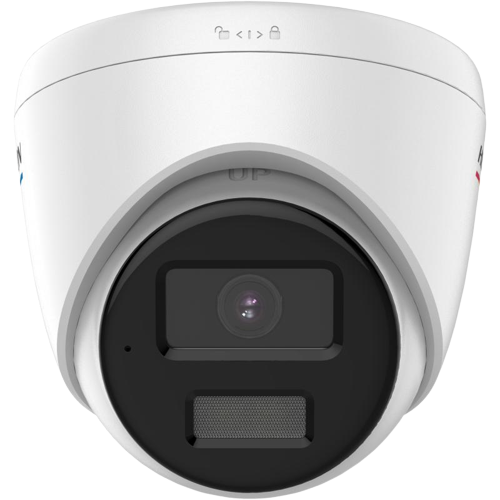

4 MP ColorVu Fixed Turret Network Camera

High quality imaging with 4 MP resolution
Excellent low-light performance
Efficient H.265+ compression technology
Water and dust resistant (IP67)
24/7 colorful imaging

View Less

DS-2CD3347G0E-LUF(C)CKV

Specification
Resources
Accessories

กล้อง
Image Sensor1/1.8＂ progressive scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
Shutter Speed1/3 s to 1/100, 000 s
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Focal Length & FOV 2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9° ; 4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
Lens MountM12
FocusFixed
ApertureF1.0

Illuminator
Smart Supplement LightYes
Supplement Light RangeUp to 30 m

Video
Max. Resolution2560 × 1440
Main Stream50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) ; 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) ; 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 1 fps (640 × 360) ; 60 Hz: 1 fps (640 × 360)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 ; Sub-stream: H.265/H.264/MJPEG ; Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
APIOpen Network Video Interface, ISAPI
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 10+ ; Plug-in free live view: Chrome 57.0+, Firefox 52.0+ ; Local service: Chrome 57.0+, Firefox 52.0+

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Built-in MicrophoneYes
Hardware ResetYes

General
Camera MaterialMetal & Plastic
Camera DimensionØ 109.9 mm × 103.6 mm (Ø 4.33" × 4.08")
Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Camera WeightApprox. 390 g (0.86 lb.)
With Package WeightApprox. 620 g (1.37 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Power12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug ; PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

DORI
DORI2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m ; 4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)130 dB
Image EnhancementBLC, 3D DNR

Event
Basic Event Motion detection, video tampering alarm, exception
Smart EventLine crossing detection, intrusion detection
LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
