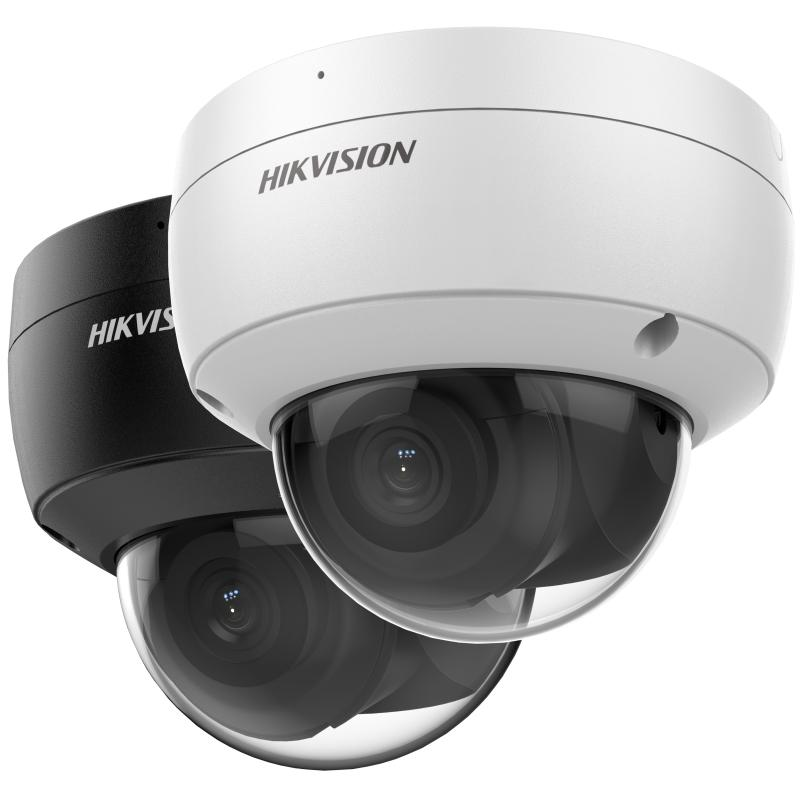

6 MP AcuSense Fixed Dome Network Camera

  • High quality imaging with 6 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security (-SU)
  • Audio and alarm interface available(-SU)
  • Water and dust resistant (IP67) and vandal resistant (IK10)
View Less
View more

Available models:

DS-2CD2166G2-ISU(2.8mm)(C)
DS-2CD2166G2-ISU(4mm)(C)

Available models:

DS-2CD2166G2-ISU(2.8mm)(C)(BLACK)

Available models:

DS-2CD2166G2-I(2.8mm)(C)
DS-2CD2166G2-I(4mm)(C)

Specification

  • กล้อง
  • Image Sensor 1/2.4" Progressive Scan CMOS
  • Max. Resolution 3200 × 1800
  • Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Lens
  • Lens Type Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
  • Lens Mount M12
  • Iris Type Fixed
  • Aperture F1.6
  • DORI
  • DORI 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
  • Illuminator
  • Supplement Light Type IR
  • Supplement Light Range Up to 30 m
  • Smart Supplement Light Yes
  • IR Wavelength 850 nm
  • Video
  • Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
