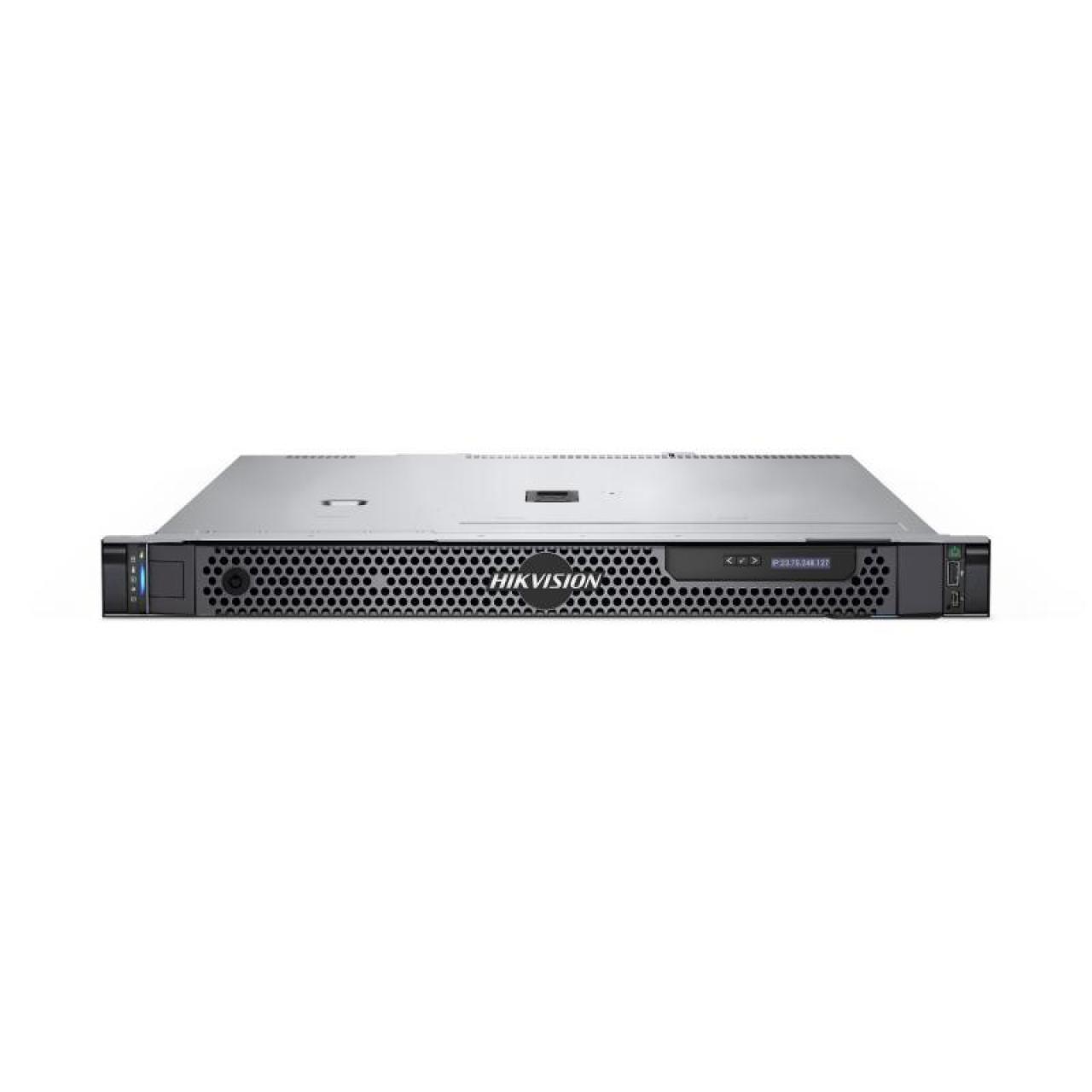

Single-socket Rackmount Server

  • Innovate at scale with challenging and emerging workloads, purpose-built for growing scale-out solutions,
  • Outmaneuver threats with intelligence, automation, and recovery tools that include iDRAC9 Telemetry, BIOS live scanning, and Rapid OS recovery
  • Supports multiple management models, best to manage your device.1:1 or 1:Many; Full remote control and management functions
  • Feature-optimized server with ideal selection of CPU, I/O, and storage performance for scale-out environments to meet data needs, suitable for various scale scenarios
View Less
View more
Sales Inquiry

Available models:

DS-VE11D-D/HW05
DS-VE11D-D/HW05

Specification

  • Hardware Specifications
  • CPUE-2378 × 1， 2.6 GHz, 16 MB Cache， 8 Cores, 16 Threads
  • MemoryStandard Config：1 × 32GB UDIMM，3200MT/s Scalability：4 × 128GB UDIMM
  • Hard DisksStandard Config：2 × 960GB SATA SSD Scalability：2 × 22TB 3.5inch SATA HDD
  • Storage ControllerStandard Config：PERC H355 adaptor LP (support RAID 0/1) Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache
  • Supported Operating SystemsWinSvr2019 multilingual version pre-installed
  • PCIe SlotsTwo Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots
  • Management
  • Remote ManageiDrac9 Enterprise
  • OpenManage™ SoftwareSupport OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
  • Integrations and ConnectionsIntegrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible; Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus
  • SecuritySupport Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter);
  • ท่าเรือ
  • USB 3.00（Front）+1（Rear）
  • USB 2.01（Front）+0（Rear）
  • Ethernet Port2× LAN10/100/1000
  • VGA1
  • iDRAC Direct (Micro-AB USB) Port1
  • iDRAC Ethernet Port1
  • General
  • Net Weight12.2 kg (26.9 lb)
  • Gross Weight18.5 kg (40.79 lb)
  • Dimension (W × H × D)482.0 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'')
  • Package Dimensions (W × H × D)595.0 mm × 251.0 mm × 923.0 mm (23.43'' × 9.88'' × 36.34'')
  • Operating Temperature10 °C to 35 °C (50 °F to 95 °F)
  • Storage Temperature-40 °C to 65 °C (-40 °F to 149 °F)
  • Operating Humidity8% to 80% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply≥450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A
  • Form Factor1U Rack
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Hardware Specifications
CPU
E-2378 × 1， 2.6 GHz, 16 MB Cache， 8 Cores, 16 Threads
Memory
Standard Config：1 × 32GB UDIMM，3200MT/s Scalability：4 × 128GB UDIMM
Hard Disks
Standard Config：2 × 960GB SATA SSD Scalability：2 × 22TB 3.5inch SATA HDD
Storage Controller
Standard Config：PERC H355 adaptor LP (support RAID 0/1) Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache
Supported Operating Systems
WinSvr2019 multilingual version pre-installed
PCIe Slots
Two Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots
Management
Remote Manage
iDrac9 Enterprise
OpenManage™ Software
Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
Integrations and Connections
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible; Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus
Security
Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter);
ท่าเรือ
USB 3.0
0（Front）+1（Rear）
USB 2.0
1（Front）+0（Rear）
Ethernet Port
2× LAN10/100/1000
VGA
1
iDRAC Direct (Micro-AB USB) Port
1
iDRAC Ethernet Port
1
General
Net Weight
12.2 kg (26.9 lb)
Gross Weight
18.5 kg (40.79 lb)
Dimension (W × H × D)
482.0 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'')
Package Dimensions (W × H × D)
595.0 mm × 251.0 mm × 923.0 mm (23.43'' × 9.88'' × 36.34'')
Operating Temperature
10 °C to 35 °C (50 °F to 95 °F)
Storage Temperature
-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity
8% to 80% (no condensation)
Storage Humidity
5% to 95% (no condensation)
Power Supply
≥450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A
Form Factor
1U Rack
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Hardware Specifications
  • CPUE-2378 × 1， 2.6 GHz, 16 MB Cache， 8 Cores, 16 Threads
  • MemoryStandard Config：1 × 32GB UDIMM，3200MT/s Scalability：4 × 128GB UDIMM
  • Hard DisksStandard Config：2 × 960GB SATA SSD Scalability：2 × 22TB 3.5inch SATA HDD
  • Storage ControllerStandard Config：PERC H355 adaptor LP (support RAID 0/1) Compatibility：Independent SAS hardware RAID card ( support RAID 5/10 ), ≥ 8GB cache
  • Supported Operating SystemsWinSvr2019 multilingual version pre-installed
  • PCIe SlotsTwo Slots Capability： 1 x X8 Semi-high Gen 4 PCle slots； 1 x X8 Semi-high Gen 4 PCle slots
Management
  • Remote ManageiDrac9 Enterprise
  • OpenManage™ SoftwareSupport OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
  • Integrations and ConnectionsIntegrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible; Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus
  • SecuritySupport Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter);
ท่าเรือ
  • USB 3.00（Front）+1（Rear）
  • USB 2.01（Front）+0（Rear）
  • Ethernet Port2× LAN10/100/1000
  • VGA1
  • iDRAC Direct (Micro-AB USB) Port1
  • iDRAC Ethernet Port1
General
  • Net Weight12.2 kg (26.9 lb)
  • Gross Weight18.5 kg (40.79 lb)
  • Dimension (W × H × D)482.0 mm × 42.8 mm × 598.64 mm (18.97'' × 1.68'' × 23.56'')
  • Package Dimensions (W × H × D)595.0 mm × 251.0 mm × 923.0 mm (23.43'' × 9.88'' × 36.34'')
  • Operating Temperature10 °C to 35 °C (50 °F to 95 °F)
  • Storage Temperature-40 °C to 65 °C (-40 °F to 149 °F)
  • Operating Humidity8% to 80% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply≥450 W，50/60 Hz，100-240 VAC (Auto adjustment)，6.5-3.5 A
  • Form Factor1U Rack
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
