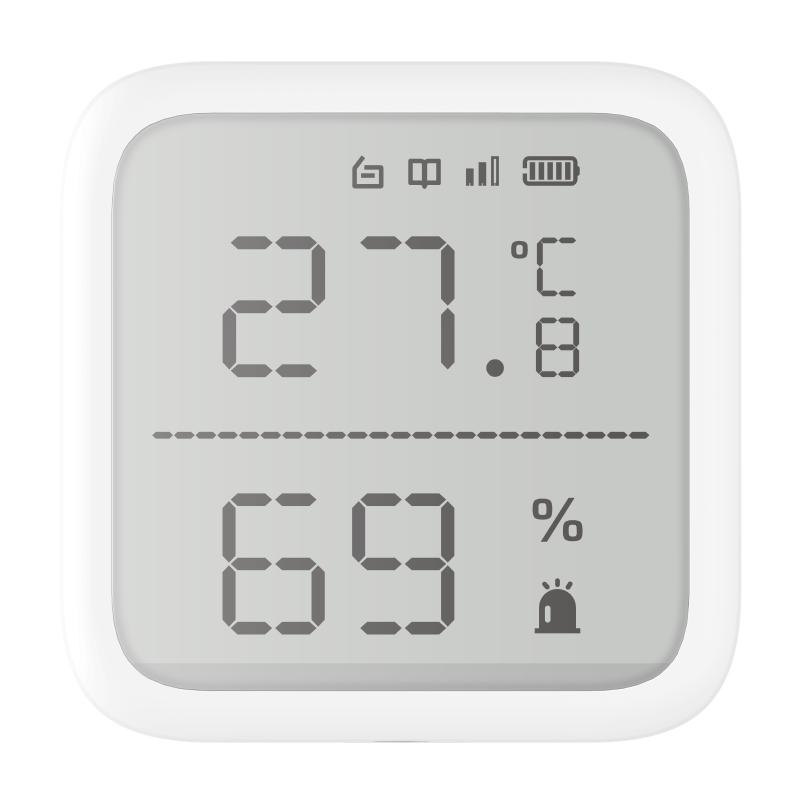

Wireless Temperature Detector

  • Big screen display, modular design for multiple use applications
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Frequency hopping against jamming for reliable transmission
  • External probe included
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-PDTPH-E-WB
DS-PDTPH-E-WB
Data Sheet

Specification

  • Detection Performance
  • Detection MethodTemperature Sensor
  • Detection Range-10 °C to 55 °C（standalone） -35 °C to 99 °C（with included probe）
  • Feature
  • Digital ProcessingSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Interface
  • LED IndicatorOn Screen Display
  • Display
  • Screen Size2.7 inch
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency433MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)800m
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Power SupplyBattery Powered
  • Battery TypeAAA × 2
  • Typical Voltage3V
  • Standard Battery LifeUp to 2 years (standby time)
  • General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)62.6mm × 62.6mm × 18mm
  • Weight73.5g
  • Mounting MethodWall
  • Application ScenarioIndoor Standalone/with included probe
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Detection Performance
Detection Method
Temperature Sensor
Detection Range
-10 °C to 55 °C（standalone） -35 °C to 99 °C（with included probe）
Feature
Digital Processing
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interface
LED Indicator
On Screen Display
Display
Screen Size
2.7 inch
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Transmission Frequency
433MHz
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
800m
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Power Supply
Battery Powered
Battery Type
AAA × 2
Typical Voltage
3V
Standard Battery Life
Up to 2 years (standby time)
General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
62.6mm × 62.6mm × 18mm
Weight
73.5g
Mounting Method
Wall
Application Scenario
Indoor Standalone/with included probe
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Detection Performance
  • Detection MethodTemperature Sensor
  • Detection Range-10 °C to 55 °C（standalone） -35 °C to 99 °C（with included probe）
Feature
  • Digital ProcessingSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
Interface
  • LED IndicatorOn Screen Display
Display
  • Screen Size2.7 inch
Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency433MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)800m
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
  • Power SupplyBattery Powered
  • Battery TypeAAA × 2
  • Typical Voltage3V
  • Standard Battery LifeUp to 2 years (standby time)
General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)62.6mm × 62.6mm × 18mm
  • Weight73.5g
  • Mounting MethodWall
  • Application ScenarioIndoor Standalone/with included probe
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
