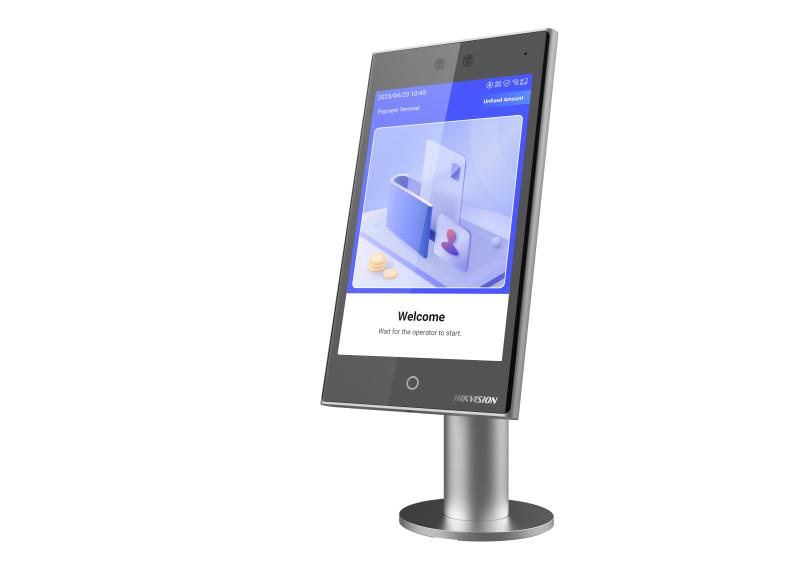

Payment Terminal

  • 8-inch IPS touch screen, with screen resolution of 800 × 1280
  • 2 MP wide-angle lens
  • Supports payment via face (face with mask supported) or card
  • Supports wiring bluetooth speaker to amplify sound
  • Supports setting fixed amount for payment under fixed amount mode. Max. amount can be set for every payment
  • Supports fixed amount and fixed times payment mode
  • Supports viewing payment statistics, including times, amount and etc.
  • Supports management via device menu and web client, allowing payment configuration, system maintenance and other operations
  • Supports online payment
  • Operation with turnstile is available
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K6301X-Z
DS-K6301X-Z
Data Sheet

Specification

  • System
  • Operating systemAndroid 11
  • Display
  • Screen size8-inch
  • Operation methodTouch screen
  • TypeIPS
  • Resolution800 × 1280
  • Video
  • Lens2
  • Resolution2 MP
  • Video standard PAL (Default) and NTSC
  • Audio
  • Audio inputNot support
  • Audio outputBuilt-in loudspeaker
  • Network
  • Wired network1, RJ-45
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
  • Interface
  • Network interface1
  • Lock controlSupport
  • Exit buttonNot support
  • Alarm input2
  • Alarm output1
  • USB1 type-C interface
  • Capacity
  • Face capacity100,000
  • Card capacity500,000
  • Event capacity500,000
  • Authentication
  • Face recognition distance0.3 m to 1.2 m
  • Face recognition accuracy rate≤ 99%
  • Face recognition duration＜ 0.2 s
  • Card typeM1 card;DESfire card;Felica card
  • Card reading distance0 cm to 5 cm
  • General
  • Supplement lightIR supplement light
  • Power supply12 VDC to 16 VDC
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity0 to 90％ (no condensing)
  • Dimensions129.1 mm × 309.5 mm × 137.1 mm (5.1" × 12.2" × 5.4")
  • Weight1.36 kg (3.0 lb)
  • Application environmentIndoor
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Chinese Traditional
  • Function
  • Video intercomNot support
  • QR code recognitionReserved
  • Face anti-spoofingSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Operating system
Android 11
Display
Screen size
8-inch
Operation method
Touch screen
Type
IPS
Resolution
800 × 1280
Video
Lens
2
Resolution
2 MP
Video standard
PAL (Default) and NTSC
Audio
Audio input
Not support
Audio output
Built-in loudspeaker
Network
Wired network
1, RJ-45
Wi-Fi
Support, 2.4 G, 802.11b/g/n
Interface
Network interface
1
Lock control
Support
Exit button
Not support
Alarm input
2
Alarm output
1
USB
1 type-C interface
Capacity
Face capacity
100,000
Card capacity
500,000
Event capacity
500,000
Authentication
Face recognition distance
0.3 m to 1.2 m
Face recognition accuracy rate
≤ 99%
Face recognition duration
＜ 0.2 s
Card type
M1 card;DESfire card;Felica card
Card reading distance
0 cm to 5 cm
General
Supplement light
IR supplement light
Power supply
12 VDC to 16 VDC
Working temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working humidity
0 to 90％ (no condensing)
Dimensions
129.1 mm × 309.5 mm × 137.1 mm (5.1" × 12.2" × 5.4")
Weight
1.36 kg (3.0 lb)
Application environment
Indoor
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Chinese Traditional
Function
Video intercom
Not support
QR code recognition
Reserved
Face anti-spoofing
Support
Time synchronization
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • Operating systemAndroid 11
Display
  • Screen size8-inch
  • Operation methodTouch screen
  • TypeIPS
  • Resolution800 × 1280
Video
  • Lens2
  • Resolution2 MP
  • Video standard PAL (Default) and NTSC
Audio
  • Audio inputNot support
  • Audio outputBuilt-in loudspeaker
Network
  • Wired network1, RJ-45
  • Wi-FiSupport, 2.4 G, 802.11b/g/n
Interface
  • Network interface1
  • Lock controlSupport
  • Exit buttonNot support
  • Alarm input2
  • Alarm output1
  • USB1 type-C interface
Capacity
  • Face capacity100,000
  • Card capacity500,000
  • Event capacity500,000
Authentication
  • Face recognition distance0.3 m to 1.2 m
  • Face recognition accuracy rate≤ 99%
  • Face recognition duration＜ 0.2 s
  • Card typeM1 card;DESfire card;Felica card
  • Card reading distance0 cm to 5 cm
General
  • Supplement lightIR supplement light
  • Power supply12 VDC to 16 VDC
  • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity0 to 90％ (no condensing)
  • Dimensions129.1 mm × 309.5 mm × 137.1 mm (5.1" × 12.2" × 5.4")
  • Weight1.36 kg (3.0 lb)
  • Application environmentIndoor
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Chinese Traditional
Function
  • Video intercomNot support
  • QR code recognitionReserved
  • Face anti-spoofingSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V2.1.0_241016
Applied to:
DS-K6301X-Z
