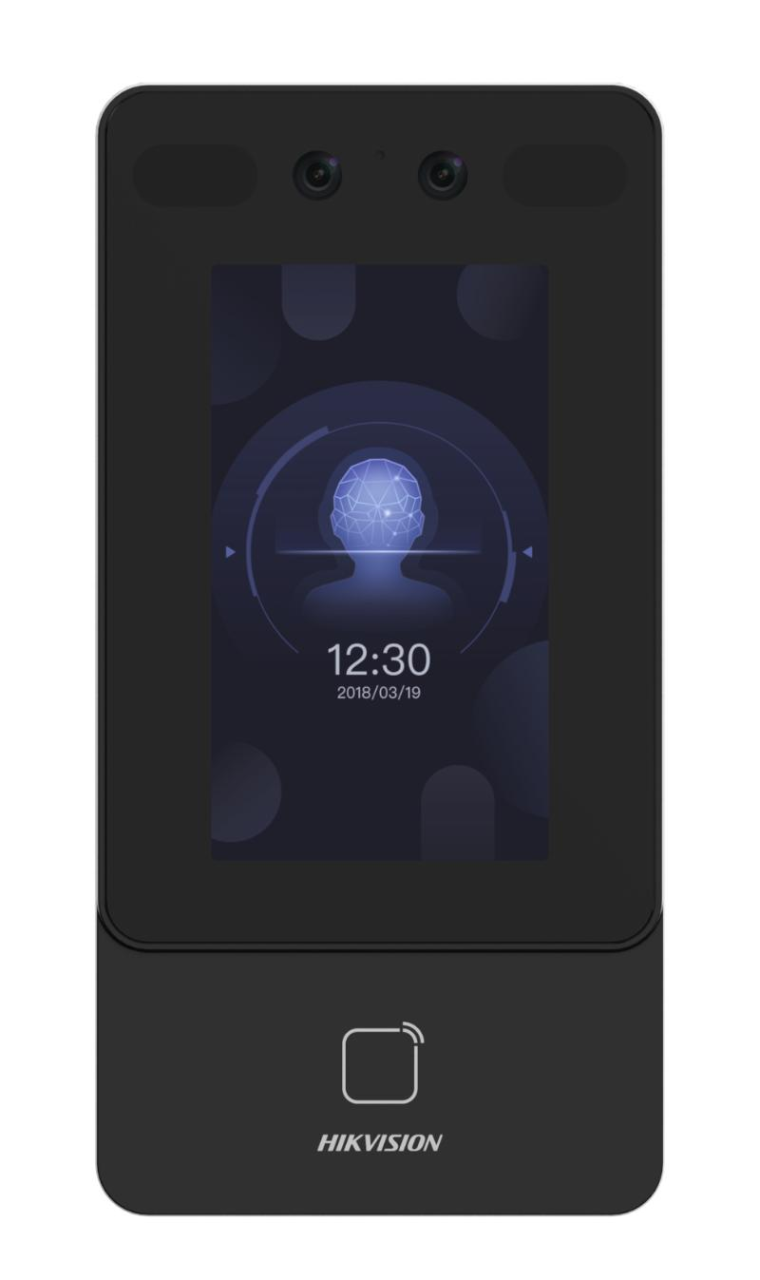

Value Series Face Access Terminal

Max.1500 faces capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m
Duration ＜ 0.2 s/User
Accuracy rate ≥ 99%
Supports mask recognition

View Less

Data Sheet

Available models:

DS-K1T342MX

Value Series Face Access Terminal

Max.1500 faces capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m
Duration ＜ 0.2 s/User
Accuracy rate ≥ 99%
Supports mask recognition

View Less

Data Sheet

Available models:

DS-K1T342MX

Specification
Resources
Accessories

Data Sheet

Display
Screen size4.3 inch
Operation methodCapacitive touch screen
TypeLCD

Video
Lens× 2
Resolution2 MP
FOVHFOV = 75.5°; VFOV = 41.5°; DFOV = 87°

Audio
Audio qualityNoise suppression and echo cancellation

Network
Wired networkSupport

Interface
Network interface1 RJ-45, 10/100 M self-adaptive
Lock control1
Exit button1
Door contact input1
TAMPER1
RS-4851 RS-485 (Half duplex, HIKVISION)
Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
USB1

Authentication
Card typeM1 card
Card reading frequency13.56 MHz

General
Power supply12 VDC, 1 A (power adapter included)
Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity0 to 90% (No condensing)
Dimensions91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
InstallationWall mounting
WeightGross weight: 0.93 kg (2.05 lb) Net weight: 0.36 kg (0.79 lb)
LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
PlatformHik-ProConnect and HikCentral Professional

Function
Face anti-spoofingSupport
