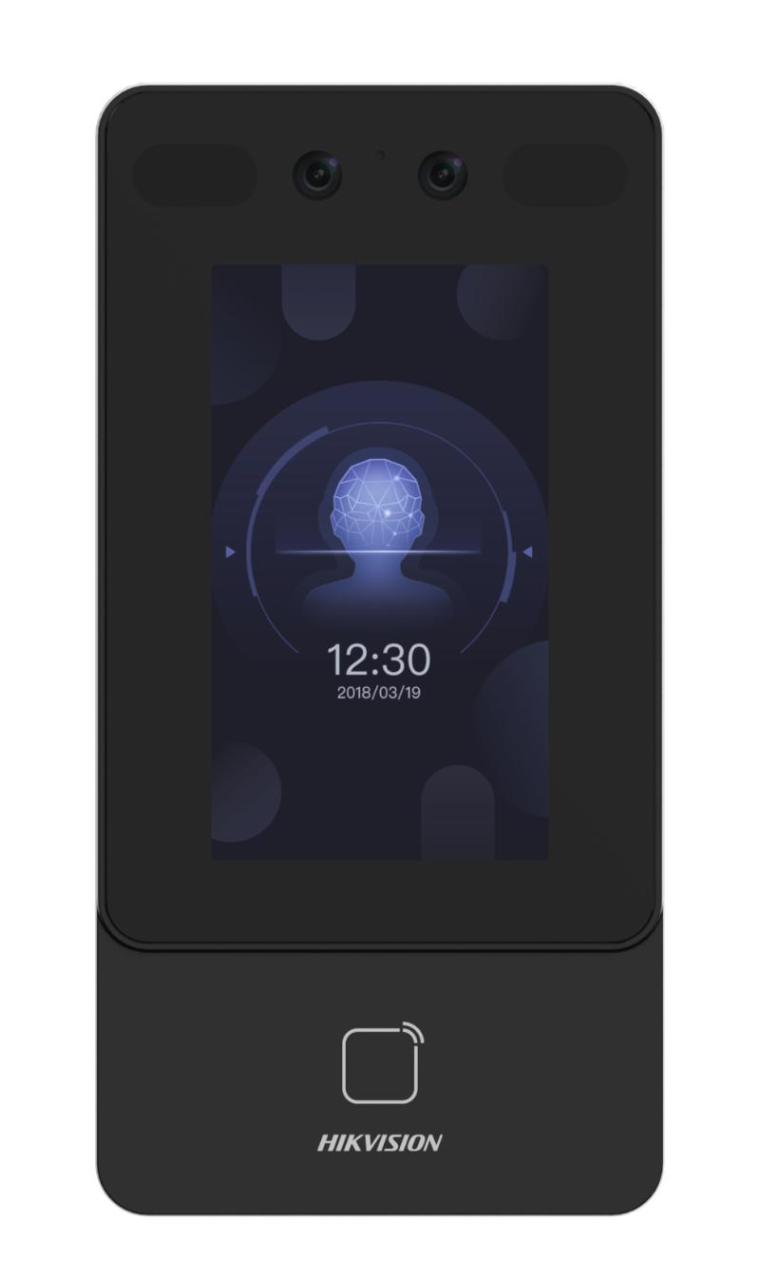

Face Recognition Terminal

  • Max.1500 faces capacity, and Max.3000 cards
  • Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
  • Two-way audio with client software, indoor station, and main station; Supports TCP/IP
  • Supports ISAPI, ISUP5.0
  • Configuration via the web client
  • Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
  • Supports face with mask recognition
  • Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
  • Supports platform-applied personal PIN and device-set personal PIN
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T342MX-E1
DS-K1T342MX-E1
Data Sheet

Specification

  • System
  • Operation systemLinux
  • Display
  • Dimensions4.3-inch
  • Resolution272 × 480
  • TypeLCD
  • Operation methodCapacitive touch screen
  • Video
  • Pixel2 MP
  • Lens× 2
  • Video standardPAL (Default) and NTSC
  • Network
  • Wired network10 M/100 M self-adaptive
  • Interface
  • PoEIEEE802.3at, standard PoE
  • Network interface1
  • RS-4851
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • USB1
  • Capacity
  • Card capacity3,000
  • Face capacity1,500
  • Event capacity150,000
  • Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Face recognition duration＜ 0.2 s
  • Face recognition accuracy rate＞99%
  • Face recognition distance0.3 to 1.5 m
  • General
  • Power supplyPower input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A) Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
  • InstallationWall Mounting
  • Protective levelIP65
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
  • WeightGross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)
  • Function
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Operation system
Linux
Display
Dimensions
4.3-inch
Resolution
272 × 480
Type
LCD
Operation method
Capacitive touch screen
Video
Pixel
2 MP
Lens
× 2
Video standard
PAL (Default) and NTSC
Network
Wired network
10 M/100 M self-adaptive
Interface
PoE
IEEE802.3at, standard PoE
Network interface
1
RS-485
1
Wiegand
1
Lock output
1
Exit button
1
Door contact input
1
TAMPER
1
USB
1
Capacity
Card capacity
3,000
Face capacity
1,500
Event capacity
150,000
Authentication
Card type
M1 card
Card reading frequency
13.56 MHz
Face recognition duration
＜ 0.2 s
Face recognition accuracy rate
＞99%
Face recognition distance
0.3 to 1.5 m
General
Power supply
Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A) Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
Working temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity
0 to 90% (No condensing)
Dimensions
91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
Installation
Wall Mounting
Protective level
IP65
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Weight
Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)
Function
Face anti-spoofing
Support
Audio prompt
Support
Time synchronization
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
System
  • Operation systemLinux
Display
  • Dimensions4.3-inch
  • Resolution272 × 480
  • TypeLCD
  • Operation methodCapacitive touch screen
Video
  • Pixel2 MP
  • Lens× 2
  • Video standardPAL (Default) and NTSC
Network
  • Wired network10 M/100 M self-adaptive
Interface
  • PoEIEEE802.3at, standard PoE
  • Network interface1
  • RS-4851
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • USB1
Capacity
  • Card capacity3,000
  • Face capacity1,500
  • Event capacity150,000
Authentication
  • Card typeM1 card
  • Card reading frequency13.56 MHz
  • Face recognition duration＜ 0.2 s
  • Face recognition accuracy rate＞99%
  • Face recognition distance0.3 to 1.5 m
General
  • Power supplyPower input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A) Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
  • InstallationWall Mounting
  • Protective levelIP65
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
  • WeightGross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs)
Function
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V3.16.1_240701
DS-K1T342 Series MinMoe Release Note V3.16.1_build240701
Applied to:
DS-K1T342MX-E1
