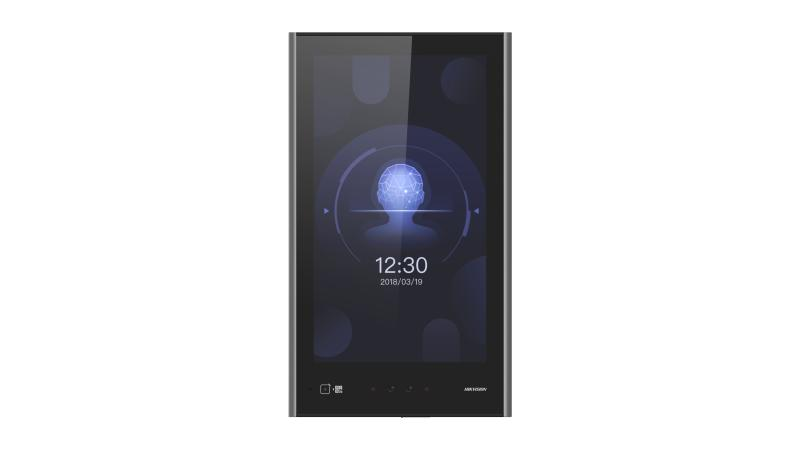

DS-K1T690M-E1


    Ultra Face Recognition Terminals

    • Android system with deep learning algorithm
    • 15.6-inch LCD touch screen, 2 MP wide-angle dual-lens
    • 100,000 face capacity, 150,000 card capacity, and 150,000 event capacity
    • Multiple authentication modes, including face, card, etc.
    • Face recognition duration ≤ 0.2 s/User; face recognition accuracy rate ≥ 99%
    • Supports mask wearing detection
    • Supports single person and multiple people (Up to 5 people) recognition
    • Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
    • Connects to external access controller or Wiegand card reader via Wiegand protocol
    • Two-way audio with client software, door station, indoor station, and main station
    • Supports the third-party application importing. Up to 9 applications and 120 M for each can be imported. For details, see the user manual
    View Less
    View more

    Available models:

    DS-K1T690M-E1

    Specification

    • Display
    • Screen size15.6 inch
    • Operation methodCapacitive touch screen, gesture recognition is available
    • TypeIPS
    • Video
    • Lens2
    • Resolution2 MP
    • FOVHFOV = 88°; VFOV = 44°; DFOV = 108°
    • Audio
    • Audio qualityNoise suppression and echo cancellation
    • Network
    • Wired networkSupport
    • Interface
    • Network interface2 RJ-45, 10/100/1000 M self-adaptive
    • Lock control1
    • Exit button1
    • Door contact input1
    • Alarm input2
    • Alarm output1
    • TAMPER1
    • RS-4851 RS-485 (Half duplex, HIKVISION)
    • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
    • USB1
    • Authentication
    • Card typeM1 card
    • Card reading frequency13.56 MHz
    • General
    • Power supply12 VDC to 24 VDC, 4 A, Standard PoE
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity10 to 90% (No condensing)
    • Dimensions432 mm × 251 mm × 35 mm (17.0" × 9.9" × 1.4")
    • InstallationWall mounting, base mounting, and bracket mounting
    • LanguageEnglish
    • PlatformHik-ProConnect and HikCentral Professional
    • Function
    • Face anti-spoofingSupport
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Display
    Screen size
    15.6 inch
    Operation method
    Capacitive touch screen, gesture recognition is available
    Type
    IPS
    Video
    Lens
    2
    Resolution
    2 MP
    FOV
    HFOV = 88°; VFOV = 44°; DFOV = 108°
    Audio
    Audio quality
    Noise suppression and echo cancellation
    Network
    Wired network
    Support
    Interface
    Network interface
    2 RJ-45, 10/100/1000 M self-adaptive
    Lock control
    1
    Exit button
    1
    Door contact input
    1
    Alarm input
    2
    Alarm output
    1
    TAMPER
    1
    RS-485
    1 RS-485 (Half duplex, HIKVISION)
    Wiegand
    1 Wiegand(Hik 26bit,Hik 34bit)
    USB
    1
    Authentication
    Card type
    M1 card
    Card reading frequency
    13.56 MHz
    General
    Power supply
    12 VDC to 24 VDC, 4 A, Standard PoE
    Working temperature
    -30 °C to 60 °C (-22 °F to 140 °F)
    Working humidity
    10 to 90% (No condensing)
    Dimensions
    432 mm × 251 mm × 35 mm (17.0" × 9.9" × 1.4")
    Installation
    Wall mounting, base mounting, and bracket mounting
    Language
    English
    Platform
    Hik-ProConnect and HikCentral Professional
    Function
    Face anti-spoofing
    Support
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Display
    • Screen size15.6 inch
    • Operation methodCapacitive touch screen, gesture recognition is available
    • TypeIPS
    Video
    • Lens2
    • Resolution2 MP
    • FOVHFOV = 88°; VFOV = 44°; DFOV = 108°
    Audio
    • Audio qualityNoise suppression and echo cancellation
    Network
    • Wired networkSupport
    Interface
    • Network interface2 RJ-45, 10/100/1000 M self-adaptive
    • Lock control1
    • Exit button1
    • Door contact input1
    • Alarm input2
    • Alarm output1
    • TAMPER1
    • RS-4851 RS-485 (Half duplex, HIKVISION)
    • Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
    • USB1
    Authentication
    • Card typeM1 card
    • Card reading frequency13.56 MHz
    General
    • Power supply12 VDC to 24 VDC, 4 A, Standard PoE
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity10 to 90% (No condensing)
    • Dimensions432 mm × 251 mm × 35 mm (17.0" × 9.9" × 1.4")
    • InstallationWall mounting, base mounting, and bracket mounting
    • LanguageEnglish
    • PlatformHik-ProConnect and HikCentral Professional
    Function
    • Face anti-spoofingSupport
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Firmware

    Firmware_V1.5.5_230904
    Applied to:
    DS-K1T690M-E1
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
