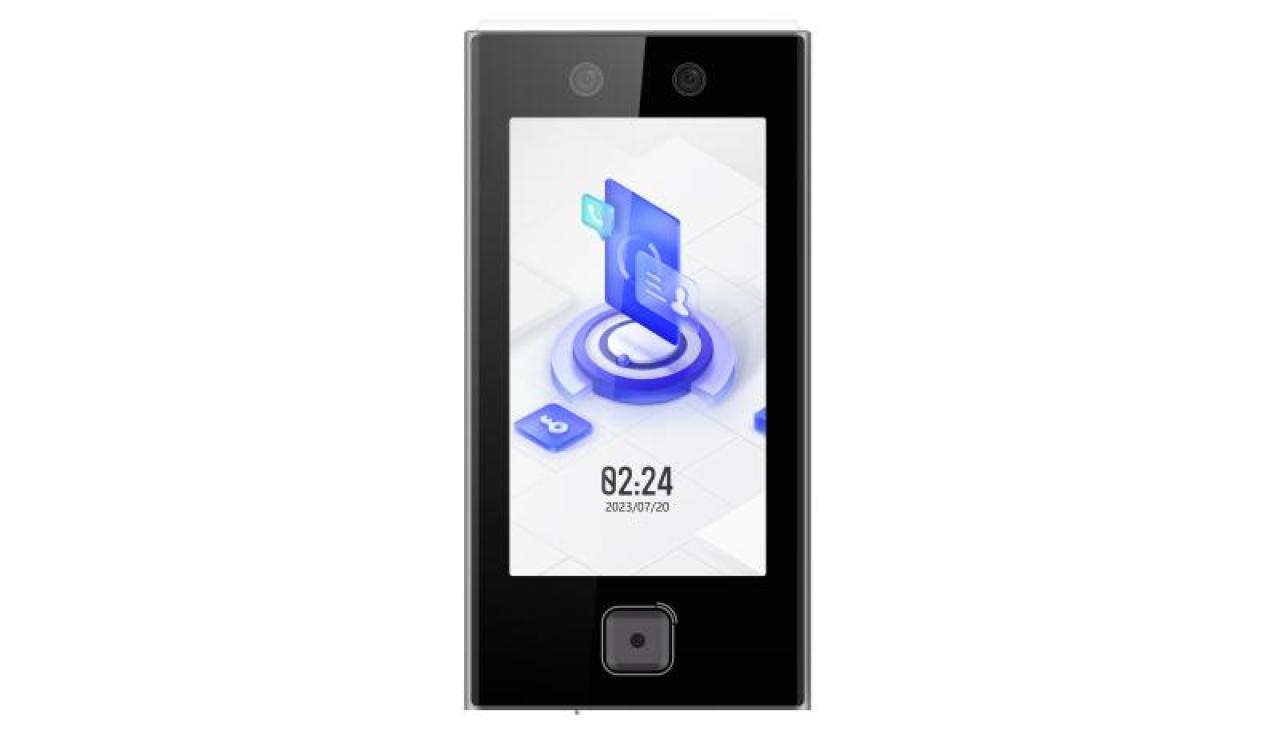

Face Recognition Terminal

  • 7-inch LCD touch screen,2 Mega pixel wide-angle lens
  • Recognition distance: 0.3 to 3 m
  • Face recognition duration ＜ 0.2 s/User
  • Face recognition accuracy rate ≥ 99%
  • Supports M1 card
  • Face mask detection
  • 6000 face capacity, 50,000 card capacity, and 150,000 event capacity
  • Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
  • QR code recognition
  • Connects with secure door control unit to realize 2 doors control. Using key fobs to control the 2 doors is available
  • Supports single person and multiple people (up to 5 people) recognition
View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-K1T670MX-QR
DS-K1T670MX-QR
Data Sheet

Specification

  • System
  • Operation systemLinux
  • Display
  • Resolution600 × 1024
  • Size7-inch
  • TypeTouch screen
  • Video
  • FOVHFOV= 88°; VFOV= 44°
  • Pixel2 MP
  • LensDual-lens
  • WDRSupport
  • Video standardPAL (Default)/NTSC
  • Network
  • Wired networkSupport 10/100/1000 Mbps self-adaptive
  • Interface
  • Alarm input2
  • Alarm output1
  • USB1 Type-A (For Module)
  • Network interface1
  • RS-4851
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • Capacity
  • User capacity6000
  • Card capacity50,000
  • Face capacity6000
  • Event capacity150,000
  • Authentication
  • Face recognition accuracy rate≥ 99%
  • Card typeM1 card
  • Card reading distance0 to 5 cm
  • Card reading duration＜ 1 s
  • Face recognition duration＜ 0.2 s per person
  • Face recognition distance0.3 to 3 m
  • General
  • Power supply12 VDC/2 A
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity10 to 90% (no condensing)
  • Power consumption≤ 10 W
  • Protective levelIP65
  • Dimensions110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean
  • WeightGross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb)
  • Function
  • Configuration via Web browserSupport
  • Hik-ConnectSupport
  • Two-way audioSupport
  • QR code recognitionSupport
  • Face mask recognitionSupport
  • Time synchronizationSupport
  • Face recognitionSupport
  • Face anti-spoofingSupport
  • Live viewSupport
  • Audio promptSupport
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

System
Operation system
Linux
Display
Resolution
600 × 1024
Size
7-inch
Type
Touch screen
Video
FOV
HFOV= 88°; VFOV= 44°
Pixel
2 MP
Lens
Dual-lens
WDR
Support
Video standard
PAL (Default)/NTSC
Network
Wired network
Support 10/100/1000 Mbps self-adaptive
Interface
Alarm input
2
Alarm output
1
USB
1 Type-A (For Module)
Network interface
1
RS-485
1
Wiegand
1
Lock output
1
Exit button
1
Door contact input
1
TAMPER
1
Capacity
User capacity
6000
Card capacity
50,000
Face capacity
6000
Event capacity
150,000
Authentication
Face recognition accuracy rate
≥ 99%
Card type
M1 card
Card reading distance
0 to 5 cm
Card reading duration
＜ 1 s
Face recognition duration
＜ 0.2 s per person
Face recognition distance
0.3 to 3 m
General
Power supply
12 VDC/2 A
Working temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity
10 to 90% (no condensing)
Power consumption
≤ 10 W
Protective level
IP65
Dimensions
110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean
Weight
Gross Weight：1.06 kg (2.34 lb) Net Weight：0.57 kg (1.26 lb)
Function
Configuration via Web browser
Support
Hik-Connect
Support
Two-way audio
Support
QR code recognition
Support
Face mask recognition
Support
Time synchronization
Support
Face recognition
Support
Face anti-spoofing
Support
Live view
Support
Audio prompt
Support
For better user experience, we highly recommend you to update your device to the latest firmware asap.
