*Images are for illustrative purposes. Actual product appearance and specifications may vary.

NEW

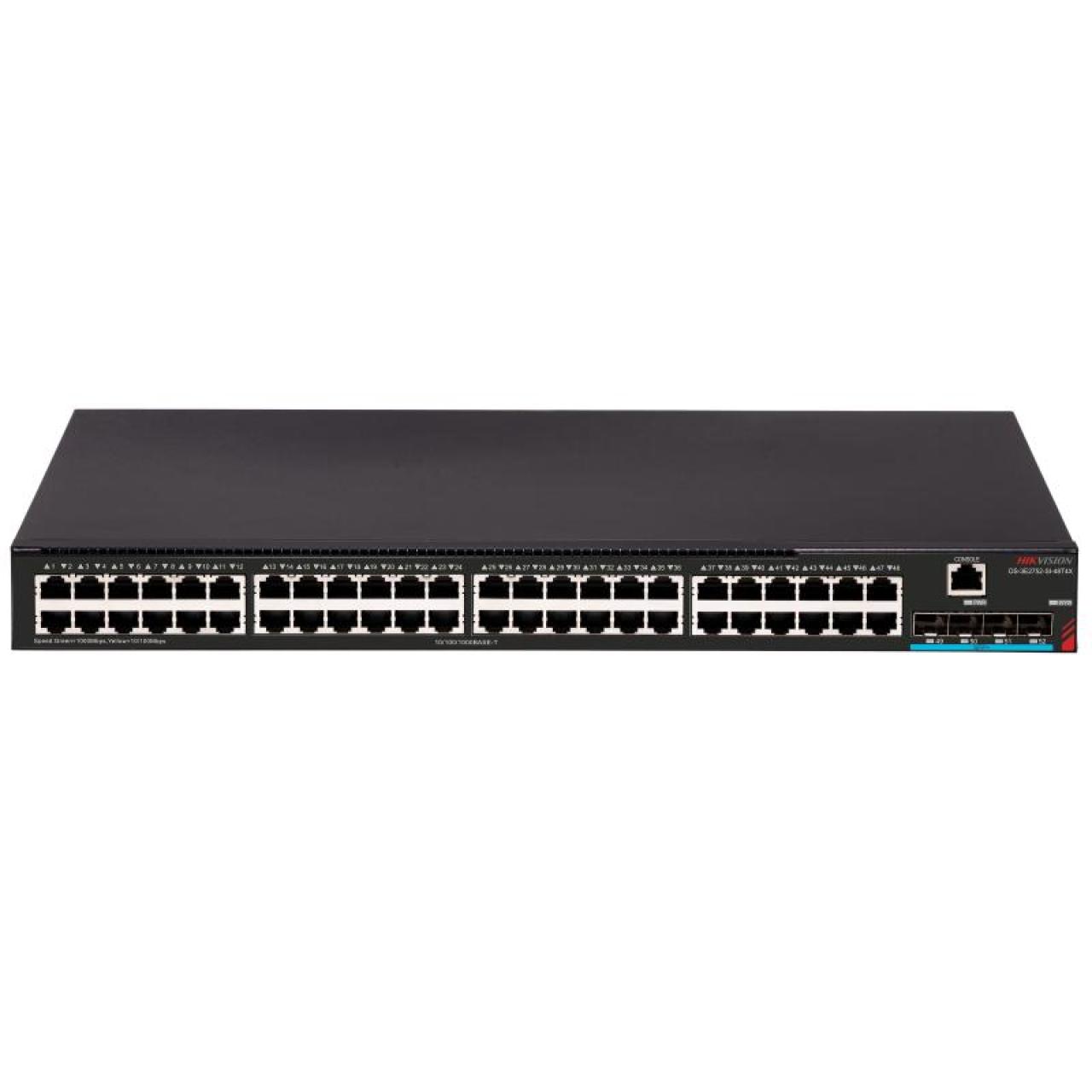

48 GE RJ45, 4 10GE SFP+ Switch

Name: 48 GE RJ45, 4 10GE SFP+ Switch
Brand: Hikvision
Availability: InStock
Rating: 5.0 (1 reviews)

Provides 48 Gigabit RJ45 ports and 4 10-Gigabit SFP+ ports.
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z standards.
Supports management via Hik-Partner Pro app.
Supports management via unified network management platform (UNMP).
Supports port isolation, storm control, MAC binding, and port mirroring.
Supports STP/RSTP/MSTP, which can eliminate loops in LAN.
Supports L3 IPv4/IPv6 static route forwarding.
Supports port rate limiting and flow rate limiting functions to prevent malicious network bandwidth occupation. It has rich queue scheduling algorithms, which can place packets into the output queue of the port with different priorities.
Uses professional built-in lightning protection technology, supports industry-leading 10 kV business port lightning protection capability, which can greatly reduce the damage rate caused by lightning strikes to the equipment even in harsh working environments.

View Less

Data Sheet

Available models:

DS-3E2752-SI-48T4X

View more View Less

DS-3E2752-SI-48T4X ^NEW

Specification
Resources
Accessories

Data Sheet

General
Dimensions (W × H × D)442.0 mm × 44.0 mm × 283.3 mm (17.40'' × 1.73'' × 11.15'')
Net Weight3.95 kg (8.71 lb)
Gross Weight5.63 kg (12.40 lb)
Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
Operating Humidity5% to 95% (no condensation)
Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
Relative Humidity5% to 95% (no condensation)
Installation ModeRack-Mounted (1U height, 19-inch width)
Power Supply MethodAC: 100-240 V, 50/60 Hz, 2.1 A
Console Port1 × Console Port
Power Supply Unit1 fixed PSU(s)
Fan2 fixed fan(s)
Power Consumption≤ 100 W
Surge Protection10 kV
Packing ListSwitch × 1 AC Power Cord × 1 L-Shaped Bracket Kit × 1 Console Port Cable × 1 Grounding Cable × 1 Clip × 1 Plastic Foot × 4 Quick Start Guide × 1 Regulatory Compliance and Safety Information × 1

Network Parameters
Ports48 × Gigabit RJ45 port,4 × 10G fiber optical port
Switching Capacity216 Gbps
Packet Forwarding Rate160.70 Mpps
MAC Address Capacity32 K
Cache16 Mbits

Software Function
Link AggregationSupport static link aggregation.,Support dynamic LACP.
Auto-NegotiationFiber optical ports 49 to 52: 10G/1G auto-negotiation
VLANIP subnet-based VLAN,Protocol-based VLAN,MAC-based VLAN,MVRP,VLAN mapping,Port-based VLAN,4K VLAN
MulticastIGMPv1/v2/v3 Snooping,Support MLD Snooping
STPSupport STP. Support RSTP. Support MSTP.
ERPSSupport G.8032 ERPS.
RRPPSupport RRPP.
Private Loop DetectionSupport loop detection.
Storm ControlSupport storm control.
Traffic SuppressionSupport traffic suppression.
MirroringSupport local port mirroring. Support remote port mirroring. Support N:1 port mirroring. Support traffic mirroring.
IPv4 ServiceSupport Ping. Support Telnet. Support Trace. Support DNS. Support ARP. Support ARP Proxy.
IPv4 RouteSupport IPv4 static routing. Support ECMP routing.
IPv6 ServiceSupport IPv4 and IPv6 dual stacks. Support neighbor discovery (ND). Support PMTU discovery. Support DNS over IPv6. Support ICMPv6.
IPv6 RouteSupport IPv6 static routing. Support ECMP routing.
DHCPSupport DHCP client. Support DHCP snooping. Support DHCP snooping Option 82. Support DHCPv6 client. Support DHCPv6 snooping.
Cable TestSupport virtual cable test (VCT). Support device link detection protocol (DLDP).
RADIUS AuthenticationSupport RADIUS authentication.
TACACS+ AuthenticationSupport TACACS+ authentication.
802.1X AuthenticationSupport 802.1X authentication.
MAC AuthenticationSupport MAC authentication.
ACLSupport L2-L4 packet filtering functionality. Support ACL definitions based on source and destination MAC addresses, source and destination IP addresses (IPv4/IPv6), IP protocol type, TCP/UDP port numbers or port ranges, and VLAN IDs. Support Time Range-based ACLs. Support configuration of basic, advanced, and MAC ACLs. Support ACL application by port, VLAN, or globally. Support Expert ACL functionality. Support inbound and outbound ACL enforcement.
QoSSupport 802.1p/DSCP priority mapping. Support queue scheduling mechanisms (SP, WRR, SP+WRR). Support packet priority marking and remarking. Support flow-based packet filtering. Support flow-based traffic statistics. Support flow-based packet redirection. Support flow-based rate limiting. Support 8 queues per port. Support tail drop congestion control policy.
SecuritySupport DoS attack protection. Support CPU attack protection. Support IP Source Guard (IPv4/IPv6). Support port isolation. Support HTTPS. Support ARP detection. Support ND snooping. Support IP-MAC binding.
NQASupport NQA.
LLDPSupport LLDP and CDP.

Operation Management
Topology DisplaySupport topology display.
Status AlarmSupport status alarm.
Management PlatformSupport device management via web. Support SADP. Support device management via Hik-Partner Pro. Support device management via Hik-Central Pro. Support device management via iVMS-4200 Client. Support device management via Unified Network Management Platform.
SSHSupport SSHv2.
TelnetSupport Telnet.
SNMPSupport SNMPv1. Support SNMPv2c. Support SNMPv3.
NTPSupport NTP.
RMONSupport RMON.
sFlowSupport counter sampling.
FTPSupport FTP.
TFTPSupport TFTP.
CFMSupport CFM.
EFMSupport EFM.
Y.1731Support Y.1731.
DDMFiber optical ports support DDM.
LogSupport system logs.

General

Dimensions (W × H × D)

442.0 mm × 44.0 mm × 283.3 mm (17.40'' × 1.73'' × 11.15'')

Net Weight

3.95 kg (8.71 lb)

Gross Weight

5.63 kg (12.40 lb)

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Operating Humidity

5% to 95% (no condensation)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Relative Humidity

5% to 95% (no condensation)

Installation Mode

Rack-Mounted (1U height, 19-inch width)

Power Supply Method

AC: 100-240 V, 50/60 Hz, 2.1 A

Console Port

1 × Console Port

Power Supply Unit

1 fixed PSU(s)

Fan

2 fixed fan(s)

Power Consumption

≤ 100 W

Surge Protection

10 kV

Packing List

Switch × 1 AC Power Cord × 1 L-Shaped Bracket Kit × 1 Console Port Cable × 1 Grounding Cable × 1 Clip × 1 Plastic Foot × 4 Quick Start Guide × 1 Regulatory Compliance and Safety Information × 1

Network Parameters

Ports

48 × Gigabit RJ45 port,4 × 10G fiber optical port

Switching Capacity

216 Gbps

Packet Forwarding Rate

160.70 Mpps

MAC Address Capacity

32 K

Cache

16 Mbits

Software Function

Link Aggregation

Support static link aggregation.,Support dynamic LACP.

Auto-Negotiation

Fiber optical ports 49 to 52: 10G/1G auto-negotiation

VLAN

IP subnet-based VLAN,Protocol-based VLAN,MAC-based VLAN,MVRP,VLAN mapping,Port-based VLAN,4K VLAN

Multicast

IGMPv1/v2/v3 Snooping,Support MLD Snooping

STP

Support STP. Support RSTP. Support MSTP.

ERPS

Support G.8032 ERPS.

RRPP

Support RRPP.

Private Loop Detection

Support loop detection.

Storm Control

Support storm control.

Traffic Suppression

Support traffic suppression.

Mirroring

Support local port mirroring. Support remote port mirroring. Support N:1 port mirroring. Support traffic mirroring.

IPv4 Service

Support Ping. Support Telnet. Support Trace. Support DNS. Support ARP. Support ARP Proxy.

IPv4 Route

Support IPv4 static routing. Support ECMP routing.

IPv6 Service

Support IPv4 and IPv6 dual stacks. Support neighbor discovery (ND). Support PMTU discovery. Support DNS over IPv6. Support ICMPv6.

IPv6 Route

Support IPv6 static routing. Support ECMP routing.

DHCP

Support DHCP client. Support DHCP snooping. Support DHCP snooping Option 82. Support DHCPv6 client. Support DHCPv6 snooping.

Cable Test

Support virtual cable test (VCT). Support device link detection protocol (DLDP).

RADIUS Authentication

Support RADIUS authentication.

TACACS+ Authentication

Support TACACS+ authentication.

802.1X Authentication

Support 802.1X authentication.

MAC Authentication

Support MAC authentication.

ACL

Support L2-L4 packet filtering functionality. Support ACL definitions based on source and destination MAC addresses, source and destination IP addresses (IPv4/IPv6), IP protocol type, TCP/UDP port numbers or port ranges, and VLAN IDs. Support Time Range-based ACLs. Support configuration of basic, advanced, and MAC ACLs. Support ACL application by port, VLAN, or globally. Support Expert ACL functionality. Support inbound and outbound ACL enforcement.

QoS

Support 802.1p/DSCP priority mapping. Support queue scheduling mechanisms (SP, WRR, SP+WRR). Support packet priority marking and remarking. Support flow-based packet filtering. Support flow-based traffic statistics. Support flow-based packet redirection. Support flow-based rate limiting. Support 8 queues per port. Support tail drop congestion control policy.

Security

Support DoS attack protection. Support CPU attack protection. Support IP Source Guard (IPv4/IPv6). Support port isolation. Support HTTPS. Support ARP detection. Support ND snooping. Support IP-MAC binding.

NQA

Support NQA.

LLDP

Support LLDP and CDP.

Operation Management

Topology Display

Support topology display.

Status Alarm

Support status alarm.

Management Platform

Support device management via web. Support SADP. Support device management via Hik-Partner Pro. Support device management via Hik-Central Pro. Support device management via iVMS-4200 Client. Support device management via Unified Network Management Platform.

SSH

Support SSHv2.

Telnet

Support Telnet.

SNMP

Support SNMPv1. Support SNMPv2c. Support SNMPv3.

NTP

Support NTP.

RMON

Support RMON.

sFlow

Support counter sampling.
