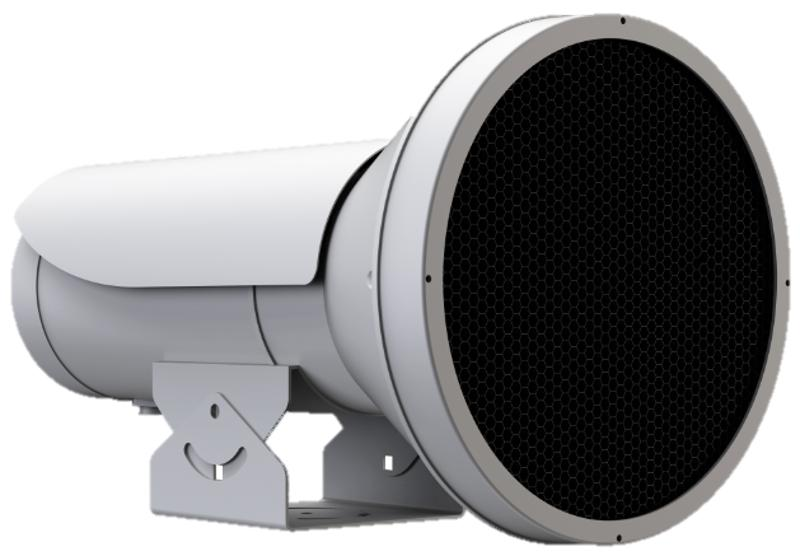

White Flash Supplement Light

  • Short recycling time, suitable for over-speed capture;
  • With photosensitivity, it supports two levels of brightness during day and night, and the brightness value can be adjusted through RS485;
  • Novel design, with manual universal joints, easy to adjust;
  • Built-in grating (external grating optional), effectively reducing light pollution
View Less
View more
Data Sheet
Sales Inquiry

Available models:

SL-1211-1(AC220V)
SL-1211-1
Data Sheet

Specification

  • Supplement Light
  • Light TypeWhite light
  • Center Illuminance3000 lx
  • Angle of Light10°
  • Effective Distance 16 to 25 m
  • Response Time ≤ 67 ms
  • Color Temperature3000 K
  • Trigger Manner TTL level (switch trigger optional)
  • Trigger Level 5 to 12 V (High level trigger)
  • Trigger Frequency0.5 Hz
  • Flash Energy200 J
  • Service Life≥ 20 million Times
  • Coverage1 lane(s)
  • Interface
  • RS-4851 RS-485
  • Flash Trigger Input1 Flash trigger input
  • Function
  • Day and Night Function Supports ambient brightness detection and auto startup at low illumination (optional)
  • Brightness Control0 to 100 levels of brightness
  • Remote Control Support
  • General
  • Power AC 100 V to 240 V, 3.5 A, 60 W, two-core terminal block
  • MaterialAluminium alloy
  • Dimensions469 mm × 269.5 mm × 270.76 mm (18.46" × 10.61" × 10.66") (L × W × H)
  • Package Dimensions536 mm × 345 mm × 355 mm (21.10" × 13.58" × 13.98") (L × W × H)
  • Weight Approx. 5.2 kg (11.53 lb.)
  • With Package WeightApprox. 6.6 kg (14.48 lb.)
  • Operating Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Storage Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (Non-condensing)
  • Approval
  • EMCEN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
  • SafetyCB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014, CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP65: IEC 60529: 1989+A1: 1999+A2: 2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Supplement Light
Light Type
White light
Center Illuminance
3000 lx
Angle of Light
10°
Effective Distance
16 to 25 m
Response Time
≤ 67 ms
Color Temperature
3000 K
Trigger Manner
TTL level (switch trigger optional)
Trigger Level
5 to 12 V (High level trigger)
Trigger Frequency
0.5 Hz
Flash Energy
200 J
Service Life
≥ 20 million Times
Coverage
1 lane(s)
Interface
RS-485
1 RS-485
Flash Trigger Input
1 Flash trigger input
Function
Day and Night Function
Supports ambient brightness detection and auto startup at low illumination (optional)
Brightness Control
0 to 100 levels of brightness
Remote Control
Support
General
Power
AC 100 V to 240 V, 3.5 A, 60 W, two-core terminal block
Material
Aluminium alloy
Dimensions
469 mm × 269.5 mm × 270.76 mm (18.46" × 10.61" × 10.66") (L × W × H)
Package Dimensions
536 mm × 345 mm × 355 mm (21.10" × 13.58" × 13.98") (L × W × H)
Weight
Approx. 5.2 kg (11.53 lb.)
With Package Weight
Approx. 6.6 kg (14.48 lb.)
Operating Condition
-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (non-condensing)
Storage Condition
-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (Non-condensing)
Approval
EMC
EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
Safety
CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014, CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP65: IEC 60529: 1989+A1: 1999+A2: 2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Supplement Light
  • Light TypeWhite light
  • Center Illuminance3000 lx
  • Angle of Light10°
  • Effective Distance 16 to 25 m
  • Response Time ≤ 67 ms
  • Color Temperature3000 K
  • Trigger Manner TTL level (switch trigger optional)
  • Trigger Level 5 to 12 V (High level trigger)
  • Trigger Frequency0.5 Hz
  • Flash Energy200 J
  • Service Life≥ 20 million Times
  • Coverage1 lane(s)
Interface
  • RS-4851 RS-485
  • Flash Trigger Input1 Flash trigger input
Function
  • Day and Night Function Supports ambient brightness detection and auto startup at low illumination (optional)
  • Brightness Control0 to 100 levels of brightness
  • Remote Control Support
General
  • Power AC 100 V to 240 V, 3.5 A, 60 W, two-core terminal block
  • MaterialAluminium alloy
  • Dimensions469 mm × 269.5 mm × 270.76 mm (18.46" × 10.61" × 10.66") (L × W × H)
  • Package Dimensions536 mm × 345 mm × 355 mm (21.10" × 13.58" × 13.98") (L × W × H)
  • Weight Approx. 5.2 kg (11.53 lb.)
  • With Package WeightApprox. 6.6 kg (14.48 lb.)
  • Operating Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (non-condensing)
  • Storage Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (Non-condensing)
Approval
  • EMCEN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
  • SafetyCB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014, CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP65: IEC 60529: 1989+A1: 1999+A2: 2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
