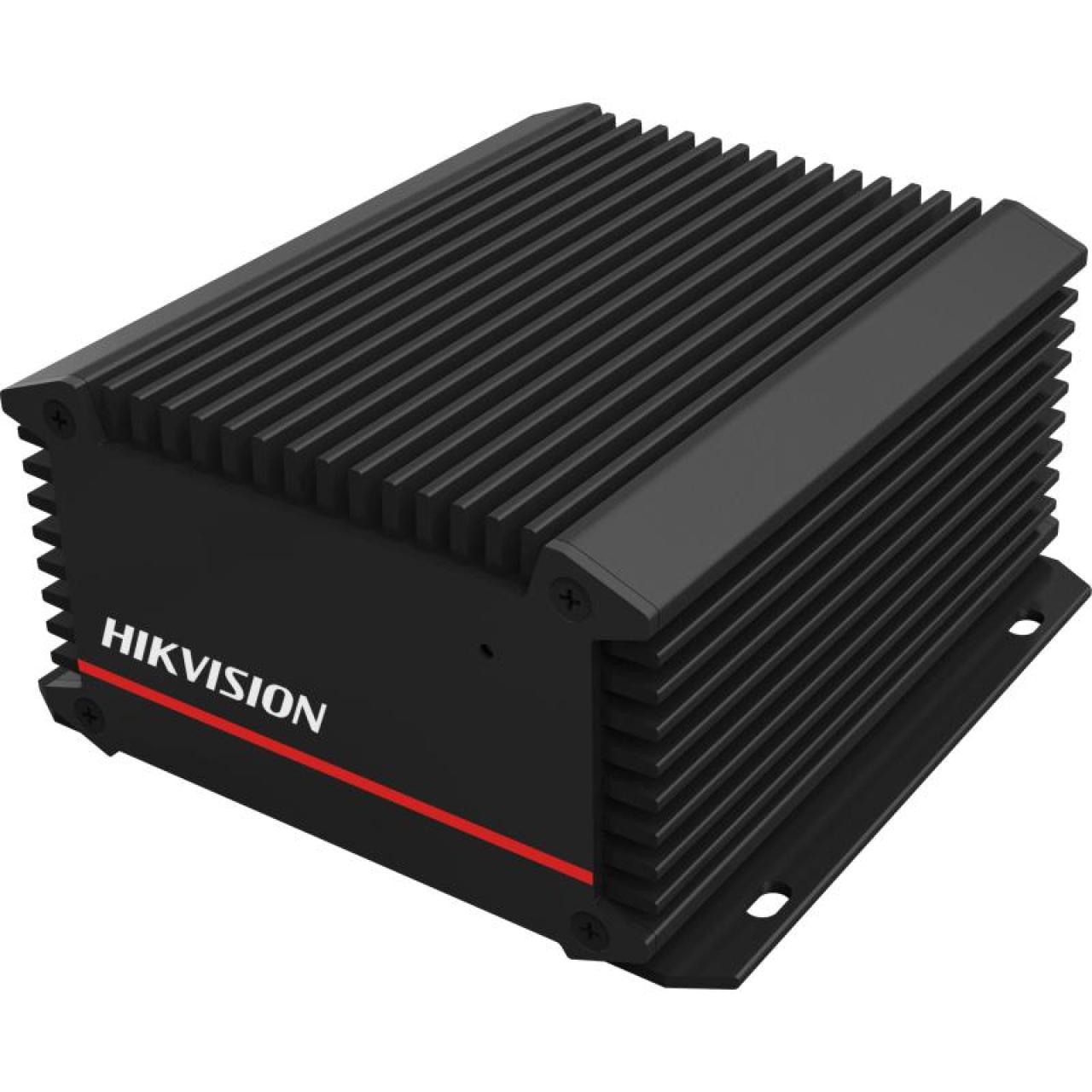

Hik-ProConnect Box

  • Cloud Storage
  • Up to 8-ch cloud storage with Hikvision cameras or DVRs/NVRs
  • Cloud storage videos support ANR (Automatic Network Replenishment)
  • Hik-Partner Pro Platform
  • Manageable by Hik-Partner Pro platform
  • Cloud storage videos support remote playback

Available models:



  • System Parameter
  • Video forwarding channel8-ch
  • Video and Audio
  • IP Video Input8-ch
  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth80 Mbps
  • Decoding
  • Decoding FormatH.265, H.265+, H.264, H.264+
  • Decoding Capability8-ch@1080p (30 fps) *: The total resolution of all cloud storage video channels cannot exceed 8 × 1080p (fps).
  • Stream TypeVideo, Video & Audio
  • Encoding
  • Video Encoding Resolution1080p/720p
  • Encoding Capability2-ch@1080p (30 fps)
  • Frame Rate5-ch@1080p (10 fps), 6-ch@1080p (8 fps), 7-ch@1080p (7 fps), 8-ch@1080p (6 fps) *: 5-ch/6-ch/7-ch/8-ch is the total number of channels for uploading cloud storage videos.
  • Network
  • Network ProtocolIPv4, IPv6, HTTP, HTTPS, NTP, SADP, DHCP
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • Power output 12 VDC, 1A
  • General
  • Consumption≤ 6 W
  • Working Temperature-10℃ to 55℃ (32 °F to 122 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)92 × 93 × 45.8 mm (3.6 × 3.7 × 1.8 inch)
  • ≤ 0.5 kg (1.1 lb)


For better user experience, we highly recommend you to update your device to the latest firmware asap.
