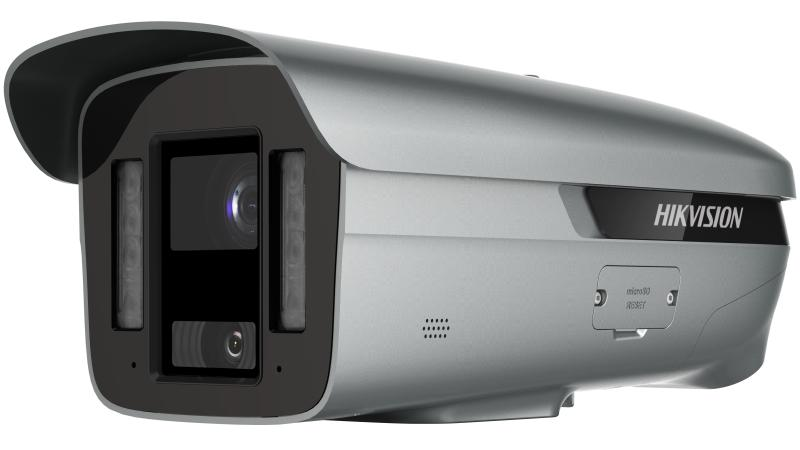

8Mp DeepinView multi-sensor bullet camera

Adopt dual-channel design so you can get details in channel 1 and panorama in channel 2
High quality imaging with 8 MP resolution in channel 1 and 4 MP resolution in channel 2
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Face detection supports up to 120 faces per frame

View Less

Data Sheet

iDS-2CD8C86G0-XZS(/5G)

Specification
Resources
Accessories

Data Sheet

Camera
Image SensorChannel 1: 1/1.2" Progressive Scan CMOS Channel 2: 1/1.8" Progressive Scan CMOS
Max. ResolutionChannel 1: 3840 × 2160, Channel 2: 2560 × 1440
Min. IlluminationChannel 1: Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON) B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Shutter Time1/25 s to 1/100,000 s
Day & NightChannel 1: IR cut filter Channel 2: No

Lens
Lens TypeChannel 1: varifocal lens, motorized lens, 10 to 50 mm; Channel 2: fixed focal lens, 4 mm
ApertureChannel 1: 10 to 50 mm: Constant F1.6 throughout the zoom range; Channel 2: 4 mm: F1.0
FocusChannel 1: Auto, Semi-auto, Manual
Focal Length & FOVChannel 1: 11 to 50 mm @F1.6, horizontal FOV 36° to 13.1°, vertical FOV: 20.3° to 7.3°, diagonal FOV 41° to 14.9° Channel 2: 4 mm @F1.0, horizontal FOV: 89°, vertical FOV: 46.5°, diagonal FOV: 105°
Lens MountChannel 1: CS Channel 2: M16
Iris TypeChannel 1: DC drive; Channel 2: Fixed

Illuminator
Supplement Light TypeHybrid (IR and White Light)
Smart Supplement LightYes
IR Wavelength750 nm
Supplement Light RangeChannel 1: Face: 20 m, normal video security: 80 m Channel 2: Normal video security: 30 m

Video
Main StreamChannel 1: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-StreamChannel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third StreamChannel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth StreamChannel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth StreamChannel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG Fifth stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseLine Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.265 and H.264 support
Region of Interest (ROI)4 fixed regions for each stream
Target CroppingYes

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio TypeMono sound

Network
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Mobile Communication
Standard/5G model: 5G NR/LTE-FDD/LTE-TDD
Frequency/5G model: 5G NR: n41/n77/n78/n79 LTE-FDD: B1/B3/B5/B8 LTE-TDD: B38/39/B40/B41
SIM Card Type/5G model: Micro SIM

Wide Dynamic Range (WDR)120 dB
Privacy Mask4 programmable polygon privacy masks
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interface
Alarm 3 inputs, 2 outputs (max. 24 VAC or 24 VDC, 1 A)
Audio2 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 600 Ω, interface type: non-equilibrium
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Built-in MicrophoneYes, 2 built-in microphones
RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Built-in SpeakerYes
Video Output1 Vp-p Composite Output (For debugging only)
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Power Output12 VDC, max. 200 mA (supported by all power supply types)
Reset KeyYes

Event
Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection

Deep Learning Function
Face ComparisonUp to 10 face libraries. 150,000 faces for each library. 150,000 faces in total. , Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption
Multi-target-type DetectionSupports simultaneous detection of human body, face, and non-motor vehicle Gets 8 face features and 13 human body features
Face CaptureFace detection performance: Detects up to 120 faces simultaneously Face detection angle: Swing left and right from -60° to 60°, tilt up and down from -30° to 30° Upload face with background (1080p/720p) and closed-up face pictures
People Counting Yes

General
Power24 VAC ± 20%, 2.42 A, max. 42.3 W, two-core terminal block
HeaterYes
General FunctionOne key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter, flash log, conreol time out
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
MaterialMetal & Plastic
Dimension395.2 mm × 166.7 mm × 153.3 mm (15.6" × 6.6" × 6.0")
Package Dimension518 mm × 356 mm × 260 mm (20.4" × 14.0" × 10.2")
WeightApprox. 4 kg (8.8 lb.)
With Package WeightApprox. 6.495 kg (14.3 lb.)

Approval
ProtectionIP66: IEC 60529-2013

Camera

Image Sensor

Channel 1: 1/1.2" Progressive Scan CMOS Channel 2: 1/1.8" Progressive Scan CMOS

Max. Resolution

Channel 1: 3840 × 2160, Channel 2: 2560 × 1440

Min. Illumination

Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON) B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR

Shutter Time

1/25 s to 1/100,000 s

Day & Night

Channel 1: IR cut filter Channel 2: No

Lens

Lens Type

Channel 1: varifocal lens, motorized lens, 10 to 50 mm; Channel 2: fixed focal lens, 4 mm

Aperture

Channel 1: 10 to 50 mm: Constant F1.6 throughout the zoom range; Channel 2: 4 mm: F1.0

Focus

Channel 1: Auto, Semi-auto, Manual

Focal Length & FOV

Channel 1: 11 to 50 mm @F1.6, horizontal FOV 36° to 13.1°, vertical FOV: 20.3° to 7.3°, diagonal FOV 41° to 14.9° Channel 2: 4 mm @F1.0, horizontal FOV: 89°, vertical FOV: 46.5°, diagonal FOV: 105°

Lens Mount

Channel 1: CS Channel 2: M16

Iris Type

Channel 1: DC drive; Channel 2: Fixed

Illuminator

Supplement Light Type

Hybrid (IR and White Light)

Smart Supplement Light

Yes

IR Wavelength

750 nm

Supplement Light Range

Channel 1: Face: 20 m, normal video security: 80 m Channel 2: Normal video security: 30 m

Video

Main Stream

Channel 1: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Third Stream

Channel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

Fifth Stream

Video Compression

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

BaseLine Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.265 and H.264 support

Region of Interest (ROI)

4 fixed regions for each stream

Target Cropping

Yes

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Audio Type

Mono sound

Network

Simultaneous Live View

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Mobile Communication

Standard

/5G model: 5G NR/LTE-FDD/LTE-TDD

Frequency

/5G model: 5G NR: n41/n77/n78/n79 LTE-FDD: B1/B3/B5/B8 LTE-TDD: B38/39/B40/B41

SIM Card Type

/5G model: Micro SIM


Wide Dynamic Range (WDR)

120 dB

Privacy Mask

4 programmable polygon privacy masks

Day/Night Switch

Day,Night,Auto,Schedule,Alarm Trigger

Picture Overlay

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Image Enhancement

BLC, HLC, 3D DNR, Defog, EIS

Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interface

Alarm

3 inputs, 2 outputs (max. 24 VAC or 24 VDC, 1 A)

Audio

2 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 600 Ω, interface type: non-equilibrium

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Built-in Microphone

Yes, 2 built-in microphones

RS-485

1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Built-in Speaker

Yes

Video Output

1 Vp-p Composite Output (For debugging only)

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Power Output

12 VDC, max. 200 mA (supported by all power supply types)

Reset Key

Yes

Event

Basic Event

Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection

Deep Learning Function

Face Comparison

Up to 10 face libraries. 150,000 faces for each library. 150,000 faces in total. , Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption

Multi-target-type Detection

Supports simultaneous detection of human body, face, and non-motor vehicle Gets 8 face features and 13 human body features

Face Capture

Face detection performance: Detects up to 120 faces simultaneously Face detection angle: Swing left and right from -60° to 60°, tilt up and down from -30° to 30° Upload face with background (1080p/720p) and closed-up face pictures

People Counting

Yes

General

Power

24 VAC ± 20%, 2.42 A, max. 42.3 W, two-core terminal block

Heater

Yes

General Function

One key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter, flash log, conreol time out

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Material

Metal & Plastic

Dimension

395.2 mm × 166.7 mm × 153.3 mm (15.6" × 6.6" × 6.0")

Package Dimension

518 mm × 356 mm × 260 mm (20.4" × 14.0" × 10.2")

Weight

Approx. 4 kg (8.8 lb.)

With Package Weight

Approx. 6.495 kg (14.3 lb.)

Approval

Protection

IP66: IEC 60529-2013

Camera

Image SensorChannel 1: 1/1.2" Progressive Scan CMOS Channel 2: 1/1.8" Progressive Scan CMOS
Max. ResolutionChannel 1: 3840 × 2160, Channel 2: 2560 × 1440
Min. IlluminationChannel 1: Color: 0.0005 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON) B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Shutter Time1/25 s to 1/100,000 s
Day & NightChannel 1: IR cut filter Channel 2: No

Lens

Lens TypeChannel 1: varifocal lens, motorized lens, 10 to 50 mm; Channel 2: fixed focal lens, 4 mm
ApertureChannel 1: 10 to 50 mm: Constant F1.6 throughout the zoom range; Channel 2: 4 mm: F1.0
FocusChannel 1: Auto, Semi-auto, Manual
Focal Length & FOVChannel 1: 11 to 50 mm @F1.6, horizontal FOV 36° to 13.1°, vertical FOV: 20.3° to 7.3°, diagonal FOV 41° to 14.9° Channel 2: 4 mm @F1.0, horizontal FOV: 89°, vertical FOV: 46.5°, diagonal FOV: 105°
Lens MountChannel 1: CS Channel 2: M16
Iris TypeChannel 1: DC drive; Channel 2: Fixed

Illuminator

Supplement Light TypeHybrid (IR and White Light)
Smart Supplement LightYes
IR Wavelength750 nm
Supplement Light RangeChannel 1: Face: 20 m, normal video security: 80 m Channel 2: Normal video security: 30 m

Video

Main StreamChannel 1: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-StreamChannel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third StreamChannel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth StreamChannel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth StreamChannel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG Fifth stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseLine Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.265 and H.264 support
Region of Interest (ROI)4 fixed regions for each stream
Target CroppingYes

Audio

Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio TypeMono sound

Network

Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+

Mobile Communication

Standard/5G model: 5G NR/LTE-FDD/LTE-TDD
Frequency/5G model: 5G NR: n41/n77/n78/n79 LTE-FDD: B1/B3/B5/B8 LTE-TDD: B38/39/B40/B41
SIM Card Type/5G model: Micro SIM


Wide Dynamic Range (WDR)120 dB
Privacy Mask4 programmable polygon privacy masks
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interface

Alarm 3 inputs, 2 outputs (max. 24 VAC or 24 VDC, 1 A)
Audio2 inputs (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 600 Ω, interface type: non-equilibrium
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Built-in MicrophoneYes, 2 built-in microphones
RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Built-in SpeakerYes
Video Output1 Vp-p Composite Output (For debugging only)
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Power Output12 VDC, max. 200 mA (supported by all power supply types)
Reset KeyYes

Event

Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection

Deep Learning Function

Face ComparisonUp to 10 face libraries. 150,000 faces for each library. 150,000 faces in total. , Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption
Multi-target-type DetectionSupports simultaneous detection of human body, face, and non-motor vehicle Gets 8 face features and 13 human body features
Face CaptureFace detection performance: Detects up to 120 faces simultaneously Face detection angle: Swing left and right from -60° to 60°, tilt up and down from -30° to 30° Upload face with background (1080p/720p) and closed-up face pictures
People Counting Yes

General

Power24 VAC ± 20%, 2.42 A, max. 42.3 W, two-core terminal block
HeaterYes
General FunctionOne key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter, flash log, conreol time out
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
MaterialMetal & Plastic
Dimension395.2 mm × 166.7 mm × 153.3 mm (15.6" × 6.6" × 6.0")
Package Dimension518 mm × 356 mm × 260 mm (20.4" × 14.0" × 10.2")
WeightApprox. 4 kg (8.8 lb.)
With Package WeightApprox. 6.495 kg (14.3 lb.)
