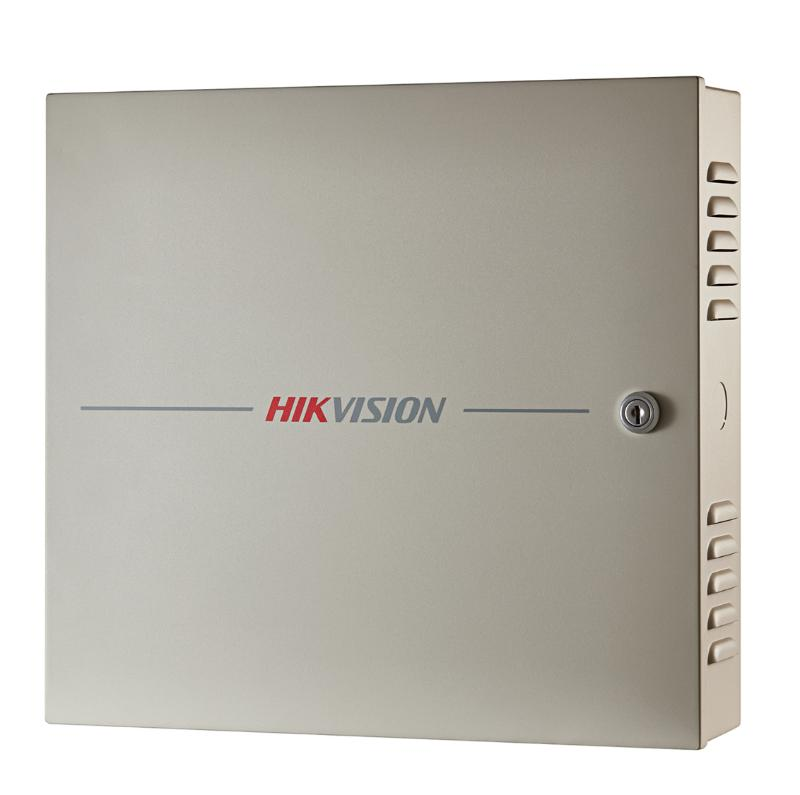

Pro Series Access Controller

  • Supports anti-passback function, multi-card function, first person function, super card and super password function
  • Online upgrade function and online remote control of the doors
  • Supports alarm event upload (including tamper-proof alarm, unsecured door alarm, forced entry alarm, delayed door alarm, duress card and code alarm, blocklist alarm and alarm for invalid card swiping attempts alarm)
  • Supports RS-485 interface and Wiegand interface for accessing card reader. Wiegand interface supports W26/W34 and is seamlessly compatible with third-party card reader with Wiegand interface
  • Supports time synchronization via NTP, manual or automatic method
  • Supports standby battery
  • Data can be permanently saved when the access controller is powered off
  • Supports battery access
View Less
View more

Available models:

DS-K2601T

Specification

  • Interface
  • Network interfaceTCP/IP
  • Lock control1
  • Exit button1
  • Door contact input1
  • General
  • Power supply100 ~ 240 VAC
  • Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
  • Power consumptionWith load: ≤ 50 w Without load: ≤ 4 w
  • Working humidity10% to 90% (no condensing)
  • Dimensions373 mm × 345 mm × 98 mm (14.7" × 13.6" × 3.6")

Specification

Specification
Interface
  • Network interfaceTCP/IP
  • Lock control1
  • Exit button1
  • Door contact input1
General
  • Power supply100 ~ 240 VAC
  • Working temperature-20 °C to 65 °C (-4 °F to 149 °F)
  • Power consumptionWith load: ≤ 50 w Without load: ≤ 4 w
  • Working humidity10% to 90% (no condensing)
  • Dimensions373 mm × 345 mm × 98 mm (14.7" × 13.6" × 3.6")
For better user experience, we highly recommend you to update your device to the latest firmware asap.
