EOL

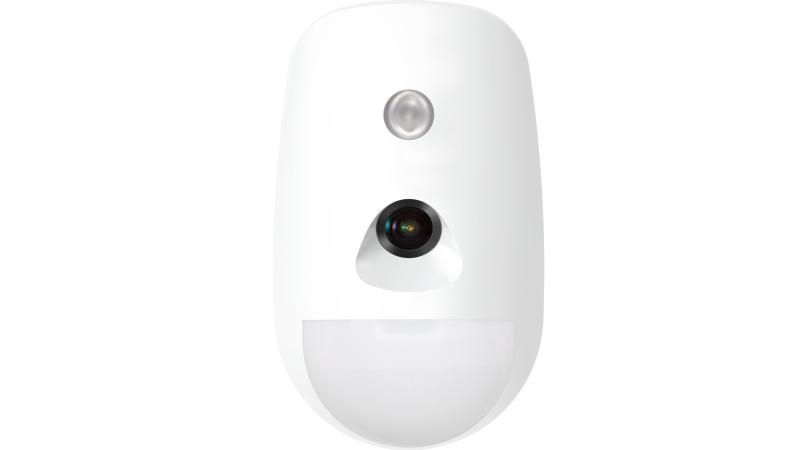

Wireless PIR-Camera Detector

  • Detection range: 12m/85.9°
  • Up to 30 kg pet immunity
  • SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
  • 24/7 colorful imaging
  • Large integrated memory buffer for image storage
  • Fully remote configurable through APP
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
View Less
View more

Available models:

DS-PDPC12PF-EG2-WE

Specification

  • Detection Performance
  • Detection MethodPassive Infrared;Video Verification
  • Detection Range12m
  • Detection Angle85.9°
  • Detection Zones52
  • Detectable Speed0.3~2m/s
  • SensitivityHigh;Auto;Pet
  • Pet Immunity30Kg
  • White Light Filter6500lux
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
  • Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Video
  • Field Angle88°(H), 68°(V)
  • Image TypeJPEG
  • Resolusion160*120;320*240;640*480
  • Fill LightWhite Light
  • Fill Range12m
  • Day/Night SwitchColor
  • Interface
  • Power SwitchPower Up Enrolling
  • LED IndicatorBlue (Alarm)
  • Transmission
  • Transmission TechnologyCAM-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency868MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)800m
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery LifeUp to 6 years (standby time)
  • Power SupplyBattery powered
  • Battery TypeCR123A × 3
  • Typical Voltage3V
  • General
  • Operation Temperature-10°C to 55°C (14°F to 131°F)
  • Storage Temperature-20°C to 60°C (-4°F to 140°F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)72.2 mm × 120.5 mm × 56.7 mm
  • Weight220 g
  • Mounting Height1.8 to 2.4m
  • Mounting MethodWall
  • Application ScenarioIndoor
  • BracketOptional wall & ceiling accessory
