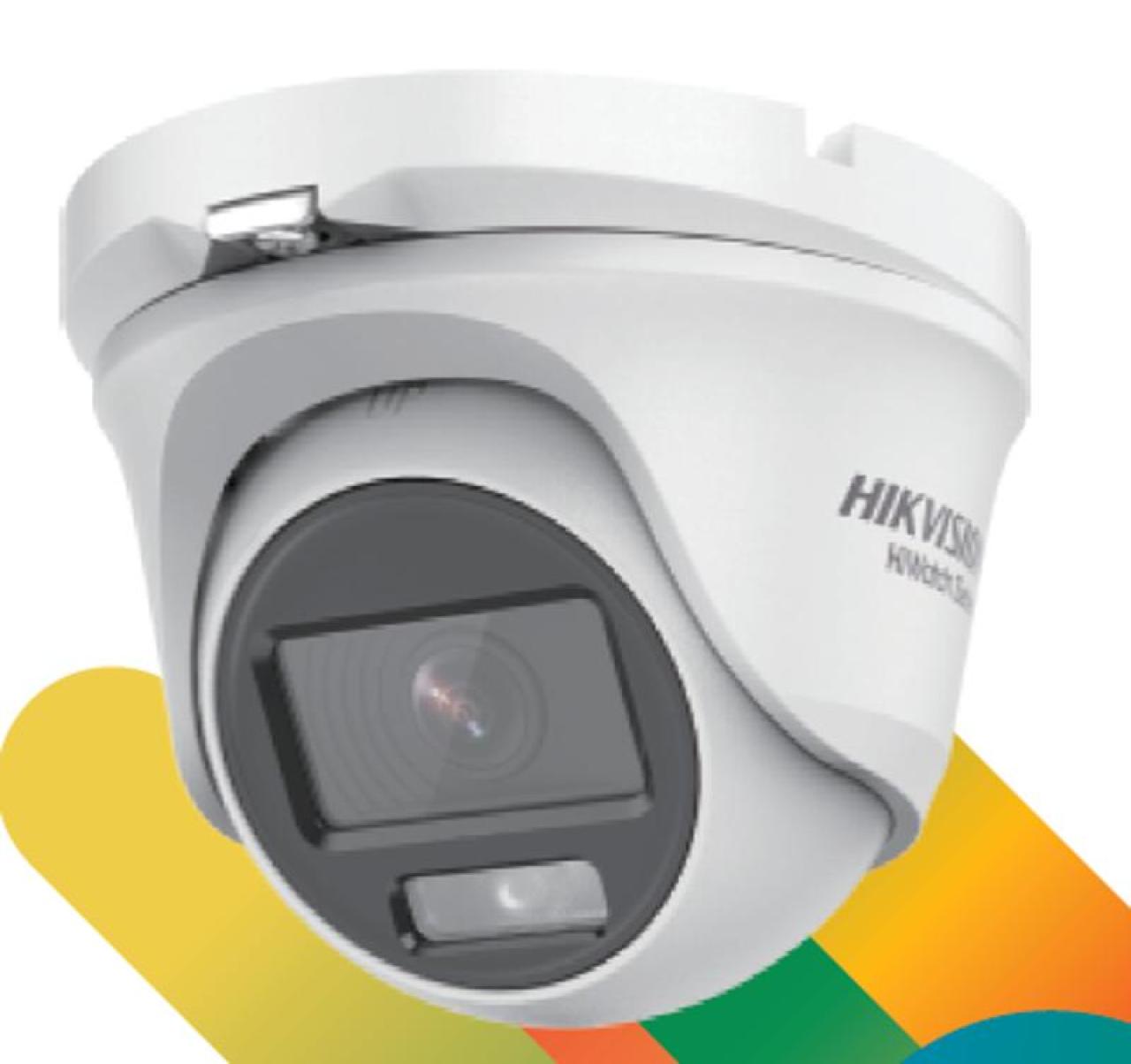

HWT-T129-M

High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
3D DNR technology delivers clean and sharp images
Up to 20 m white light distance for bright night imaging
2.8 mm, 3.6 mm fixed focal lens
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP66)

View Less

Available models:

HWT-T129-M(2.8mm)(HIK SPAIN)

HWT-T129-M#SPAIN

Specification
Resources
Accessories

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Signal SystemPAL/NTSC
Frame RateTVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD:1080p@25fps/30fps CVBS: PAL/NTSC
Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens MountM12
Light AlarmSolid Light Alarm (White Light)
Day & Night24/7 Color Imaging
Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens
Lens Type2.8 mm/3.6 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121° 3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

Illuminator
Supplement Light TypeWhite Light

Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Smart Light;Anti-Banding
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR;BLC;HLC;Global
White LightAuto/Off
AGCYes
Day/Night ModeColor
White BalanceAuto/Manual
Noise Reduction3D DNR/2D DNR
LínguaEnglish

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
Operating Condition-40°C to 60°C (-40°F to140°F), humidity: 90% or less (non-condensing)
MaterialMetal
Dimension82.65 mm × 91.0 mm × 69.16 mm (3.25" ×3.58" ×2.72")
Weight Approx. 238.5 g (0.53 lb)

Approval
ProtectionIP66

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Signal System

PAL/NTSC

Frame Rate

TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD:1080p@25fps/30fps CVBS: PAL/NTSC

Min. Illumination

0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens Mount

M12

Light Alarm

Solid Light Alarm (White Light)

Day & Night

24/7 Color Imaging

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens

Lens Type

2.8 mm/3.6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121° 3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°

Illuminator

Supplement Light Type

White Light


Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Image Settings

Brightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Smart Light;Anti-Banding

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR;BLC;HLC;Global

White Light

Auto/Off

AGC

Yes

Day/Night Mode

Color

White Balance

Auto/Manual

Noise Reduction

3D DNR/2D DNR

Língua

English

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Operating Condition

-40°C to 60°C (-40°F to140°F), humidity: 90% or less (non-condensing)

Material

Metal

Dimension

82.65 mm × 91.0 mm × 69.16 mm (3.25" ×3.58" ×2.72")

Weight

Approx. 238.5 g (0.53 lb)

Approval

Protection

IP66
