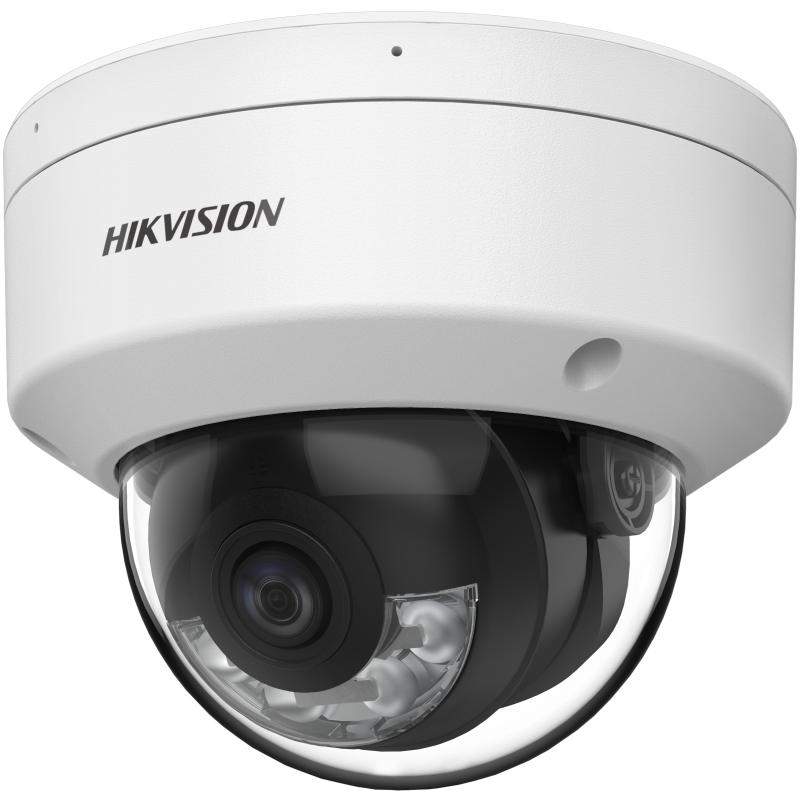

2 MP Ultra Low Light Audio Fixed Dome Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
F1.0 aperture
Clear imaging against strong back light due to 130 dB true WDR technology
3D DNR technology delivers clean and sharp images
2.8 mm fixed focal lens
Up to 40 m IR distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67) and vandal resistant (IK10)

View Less

Available models:

DS-2CE50D8T-VPITFS(2.8mm)(HIK Europe)

DS-2CE50D8T-VPITFS#EU

Specification
Resources
Accessories

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Slow ShutterMax. 16 times
Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Day & NightICR
Angle AdjustmentPan: 0 to 355°, Tilt: 0 to 75°, Rotation: 0 to 355°
Signal SystemPAL/NTSC
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens
Lens Type2.8 mm fixed focal lens
Focal Length & FOV2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeIR: Up to 40 m

Image Parameters SwitchSTD/HIGH-SAT
Image Settings Brightness, Contrast, Sharpness, Anti-banding, AGC
Frame RateTVI: 1080p @30 fps, 1080p @25 fps AHD: 1080p @30 fps, 1080p @25 fps CVI: 1080p @30 fps, 1080p @25 fps CVBS: PAL/NTSC
Day/Night ModeAuto
Wide Dynamic Range (WDR)≥130 dB
Image EnhancementWDR, BLC, HLC, Global, HLS
Privacy Mask4 programmable privacy masks
Noise Reduction3D DNR
White BalanceAuto, Manual

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
Built-in MicrophoneYes

Event
Motion Detection4 programmable motion areas

General
Power12 VDC ± 25%, max.6.9 W,*You are recommended to use one power adapter to supply the power for one camera.
MaterialMetal
DimensionØ121.5 mm × 97.6 mm (Ø4.78" × 3.84")
WeightApprox. 510 g (1.12 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
CommunicationHIKVISION-C
LínguaEnglish

Approval
ProtectionIP67, IK10

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Slow Shutter

Max. 16 times

Min. Illumination

0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Day & Night

ICR

Angle Adjustment

Pan: 0 to 355°, Tilt: 0 to 75°, Rotation: 0 to 355°

Signal System

PAL/NTSC

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens

Lens Type

2.8 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°

Lens Mount

M12

Illuminator

Supplement Light Type

Supplement Light Range

IR: Up to 40 m


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness, Contrast, Sharpness, Anti-banding, AGC

Frame Rate

TVI: 1080p @30 fps, 1080p @25 fps AHD: 1080p @30 fps, 1080p @25 fps CVI: 1080p @30 fps, 1080p @25 fps CVBS: PAL/NTSC

Day/Night Mode

Auto

Wide Dynamic Range (WDR)

≥130 dB

Image Enhancement

WDR, BLC, HLC, Global, HLS

Privacy Mask

4 programmable privacy masks

Noise Reduction

3D DNR

White Balance

Auto, Manual

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

Built-in Microphone

Yes

Event

Motion Detection

4 programmable motion areas

General

Power

12 VDC ± 25%, max.6.9 W,*You are recommended to use one power adapter to supply the power for one camera.

Material

Metal

Dimension

Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")

Weight

Approx. 510 g (1.12 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)

Communication

HIKVISION-C

Língua

English

Approval

Protection

IP67, IK10
