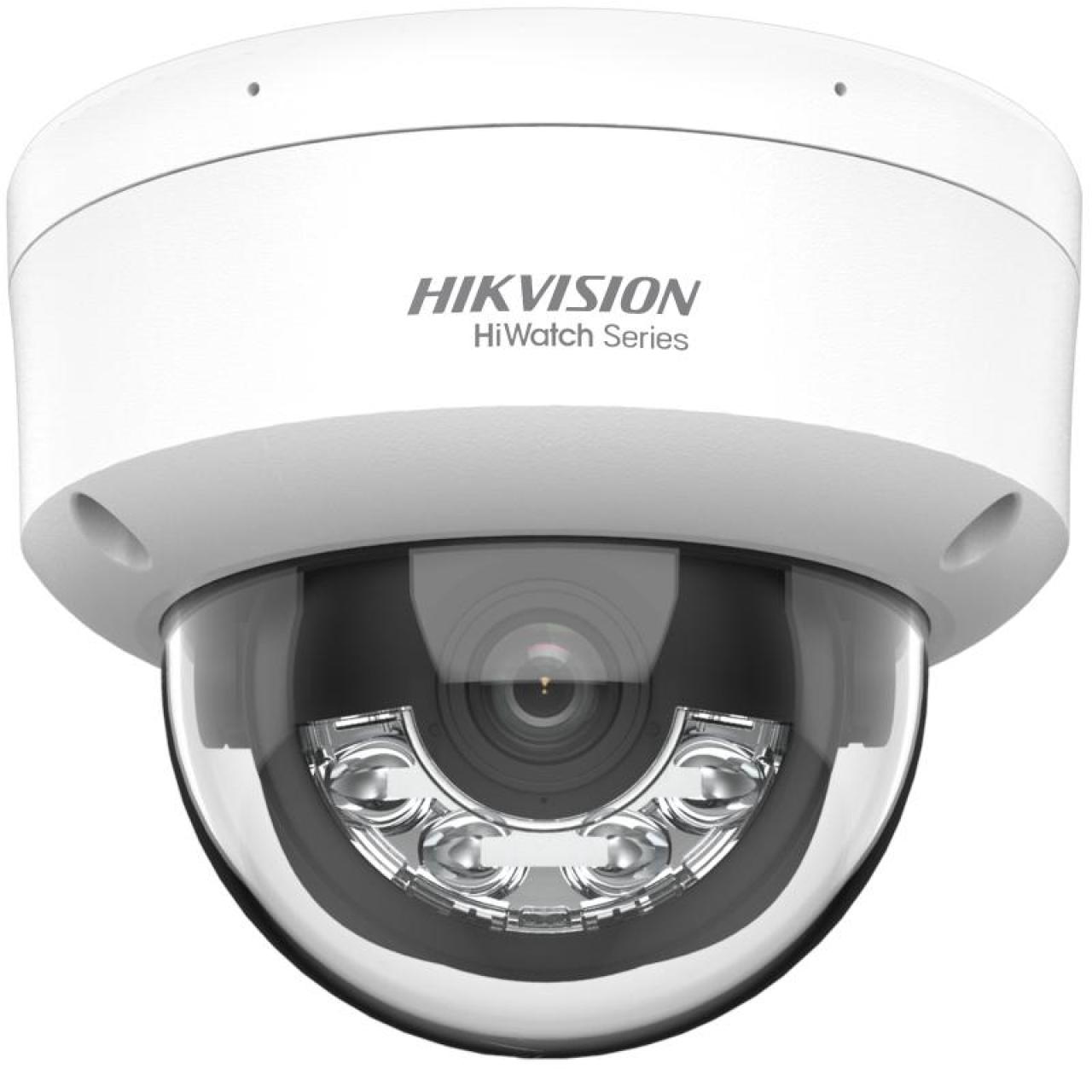

4 MP Smart Hybrid Light Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Support Human Detection
  • Efficient H.265+ compression technology
  • Smart Hybrid Light: advanced technology with long range coverage
  • Built-in microphone for real-time audio security
  • -F model supports on-board storage up to 512 GB (SD card slot)

View Less
View more
Sales Inquiry

Available models:

HWI-D140HA-LUC(2.8mm)(HiWatchSTD)
HWI-D140HA-LUC(4mm)(HiWatchSTD)
HWI-D140HA-LU(F)C

Specification

  • câmara
  • Image Sensor 1/2.8" Progressive Scan CMOS
  • Max. Resolution 2560 × 1440
  • Min. Illumination Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time 1/3 s to 1/100,000 s
  • Day & Night IR cut filter
  • Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Lens
  • Lens Type Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
  • Lens Mount M12
  • Iris Type Fixed
  • Aperture F2.2
  • Depth of Field 2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞
  • DORI
  • DORI 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
  • Illuminator
  • Supplement Light Type IR,White Light
  • Supplement Light Range Up to 20 m
  • Smart Supplement Light Yes
  • IR Wavelength 850 nm
  • Video
  • Main Stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream 50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate 32 Kbps to 8 Mbps
  • H.264 Type Baseline Profile,Main Profile,High Profile
  • H.265 Type Main Profile
  • Bit Rate Control CBR,VBR
  • Region of Interest (ROI) 1 fixed region for main stream
  • Audio
  • Audio Type Mono sound
  • Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
  • Environment Noise Filtering Yes
  • Audio Sampling Rate 8 kHz/16 kHz
  • Audio Compression G.711ulaw/AAC-LC
  • Network
  • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
  • API ONVIF (Profile S, Profile T, Profile G (only -F model supports Profile G)),ISAPI,SDK
  • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Simultaneous Live View Up to 6 channels
  • User/Host Up to 32 users 3 user levels: administrator, operator, and user
  • Client iVMS-4200,HiLookVision
  • Web Browser Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
  • Image
  • Wide Dynamic Range (WDR) Digital WDR
  • SNR ≥ 52 dB
  • Day/Night Switch Day,Night,Auto,Schedule
  • Image Enhancement BLC,HLC,3D DNR
  • Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Privacy Mask 1 programmable polygon privacy mask
  • Interface
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage -F model: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Microphone Yes,1 built-in microphone
  • Reset Key -F model supports
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target type (human)), exception
  • Linkage Upload to memory card (-F model supports), send email, notify surveillance center, trigger recording (-F model supports), trigger capture
  • General
  • Power 12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
  • Material Plastic
  • Dimension Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
  • Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Weight Approx. 570 g (1.2 lb.)
  • With Package Weight Approx. 780 g (1.8 lb.)
  • Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Língua English, Ukrainian
  • General Function Heartbeat,anti-banding,mirror,password protection,password reset via email
  • Approval
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, KC: KN32: 2015, KN35: 2015
  • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

câmara
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2
Depth of Field
2.8 mm: 0.9 m to ∞ 4 mm: 1.1 m to ∞
DORI
DORI
2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
Up to 20 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720，640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720，640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream
Audio
Audio Type
Mono sound
Audio Bit Rate
64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Audio Compression
G.711ulaw/AAC-LC
Network
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
API
ONVIF (Profile S, Profile T, Profile G (only -F model supports Profile G)),ISAPI,SDK
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users 3 user levels: administrator, operator, and user
Client
iVMS-4200,HiLookVision
Web Browser
Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask
1 programmable polygon privacy mask
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
-F model: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone
Yes,1 built-in microphone
Reset Key
-F model supports
Event
Basic Event
Motion detection (support alarm triggering by specified target type (human)), exception
Linkage
Upload to memory card (-F model supports), send email, notify surveillance center, trigger recording (-F model supports), trigger capture
General
Power
12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
Material
Plastic
Dimension
Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight
Approx. 570 g (1.2 lb.)
With Package Weight
Approx. 780 g (1.8 lb.)
Storage Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Língua
English, Ukrainian
General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, KC: KN32: 2015, KN35: 2015
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.8.4_240613
Network Camera-V5.8.4_SP1 Release Note-E10
Applied to:
HWI-D140HA-LUC(2.8mm)(HiWatchSTD)
HWI-D140HA-LUC(4mm)(HiWatchSTD)
