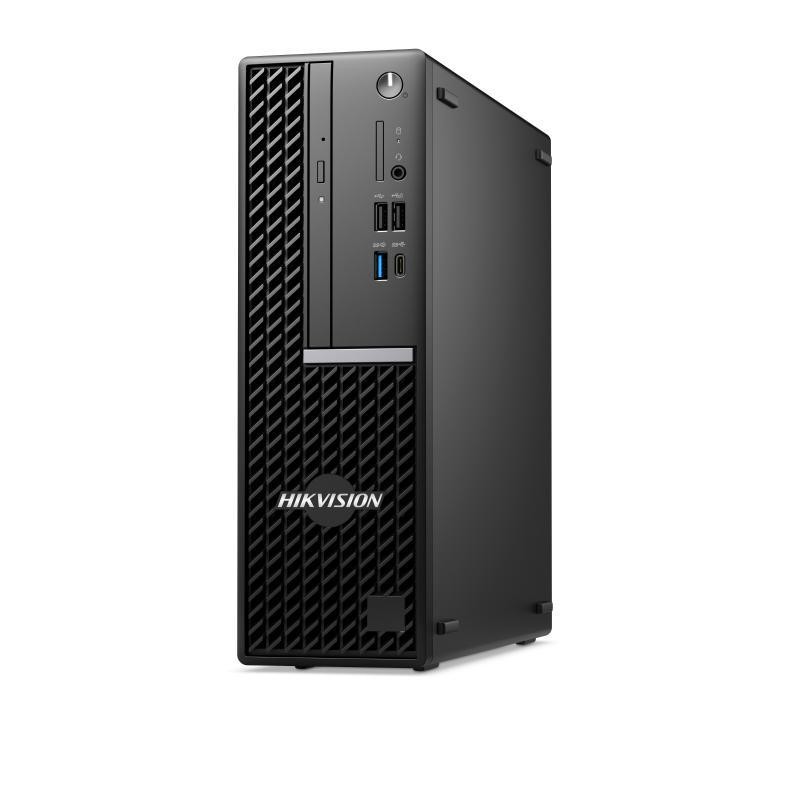

General Purpose Server

  • Integrated graphics with great decoding capabilities
  • Four-screen independent output for efficient management
  • Pre-installed operating system and configured with keyboard and mouse, plug and play
  • Operates in extreme temperatures and high humidity
  • Customized dust filters for effective protection against windborne sand and dust
View Less
View more
Sales Inquiry

Available models:

DS-VP41D-C/HW7
DS-VP41D-C/HW7

Specification

  • Hardware Specifications
  • CPUi7-12700， 2.10 GHz, 25 MB Cache， 12 Cores, 20 Threads
  • MemoryStandard Config：2 × 8GB UDIMM，3200MT/s Scalability：4 × 32GB UDIMM
  • Hard DisksStandard Config：1 × 256GB M.2 SSD Scalability：1 × 4TB 3.5inch SATA HDD
  • Supported Operating SystemsWin10 multilingual version pre-installed
  • Graphic CardStandard Config：UHD Graphics 770（intergrated in CPU） Scalability：1 × Semi-high Independent graphics card（Please contact technical support for more info.）
  • PCIe Slots1*PCIe 4.0 x16 Slot 1*PCIe 4.0 x4 Slot
  • Portos
  • Type-C1
  • USB 3.01（Front）+3（Rear）
  • USB 2.02（Front）+2（Rear）
  • Universal Audio Port1
  • Ethernet Port1 x LAN 10/100/1000
  • VGA/（HDMI port can be used as VGA port）
  • HDMI1
  • DP3（DP port can be used as HDMI port）
  • General
  • Net Weight5.63 kg (12.42 lb)
  • Gross Weight6.72 kg (14.81 lb)
  • Dimension (W × H × D)92.60 mm × 290.00 mm × 292.80 mm (3.65'' × 11.42'' × 11.53'')
  • Package Dimensions (W × H × D)394.00 mm × 264.00 mm × 487.00 mm (15.51'' × 10.39'' × 19.17'')
  • Operating Temperature5 °C to 45 °C (41 °F to 113 °F)
  • Storage Temperature-40 °C to 70 °C (-40 °F to 158 °F)
  • Operating Humidity20% to 80% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply300 W PSU，92% Energy efficiency，80 Plus Platinum
  • Form FactorTower SFF
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Hardware Specifications
CPU
i7-12700， 2.10 GHz, 25 MB Cache， 12 Cores, 20 Threads
Memory
Standard Config：2 × 8GB UDIMM，3200MT/s Scalability：4 × 32GB UDIMM
Hard Disks
Standard Config：1 × 256GB M.2 SSD Scalability：1 × 4TB 3.5inch SATA HDD
Supported Operating Systems
Win10 multilingual version pre-installed
Graphic Card
Standard Config：UHD Graphics 770（intergrated in CPU） Scalability：1 × Semi-high Independent graphics card（Please contact technical support for more info.）
PCIe Slots
1*PCIe 4.0 x16 Slot 1*PCIe 4.0 x4 Slot
Portos
Type-C
1
USB 3.0
1（Front）+3（Rear）
USB 2.0
2（Front）+2（Rear）
Universal Audio Port
1
Ethernet Port
1 x LAN 10/100/1000
VGA
/（HDMI port can be used as VGA port）
HDMI
1
DP
3（DP port can be used as HDMI port）
General
Net Weight
5.63 kg (12.42 lb)
Gross Weight
6.72 kg (14.81 lb)
Dimension (W × H × D)
92.60 mm × 290.00 mm × 292.80 mm (3.65'' × 11.42'' × 11.53'')
Package Dimensions (W × H × D)
394.00 mm × 264.00 mm × 487.00 mm (15.51'' × 10.39'' × 19.17'')
Operating Temperature
5 °C to 45 °C (41 °F to 113 °F)
Storage Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity
20% to 80% (no condensation)
Storage Humidity
5% to 95% (no condensation)
Power Supply
300 W PSU，92% Energy efficiency，80 Plus Platinum
Form Factor
Tower SFF
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Hardware Specifications
  • CPUi7-12700， 2.10 GHz, 25 MB Cache， 12 Cores, 20 Threads
  • MemoryStandard Config：2 × 8GB UDIMM，3200MT/s Scalability：4 × 32GB UDIMM
  • Hard DisksStandard Config：1 × 256GB M.2 SSD Scalability：1 × 4TB 3.5inch SATA HDD
  • Supported Operating SystemsWin10 multilingual version pre-installed
  • Graphic CardStandard Config：UHD Graphics 770（intergrated in CPU） Scalability：1 × Semi-high Independent graphics card（Please contact technical support for more info.）
  • PCIe Slots1*PCIe 4.0 x16 Slot 1*PCIe 4.0 x4 Slot
Portos
  • Type-C1
  • USB 3.01（Front）+3（Rear）
  • USB 2.02（Front）+2（Rear）
  • Universal Audio Port1
  • Ethernet Port1 x LAN 10/100/1000
  • VGA/（HDMI port can be used as VGA port）
  • HDMI1
  • DP3（DP port can be used as HDMI port）
General
  • Net Weight5.63 kg (12.42 lb)
  • Gross Weight6.72 kg (14.81 lb)
  • Dimension (W × H × D)92.60 mm × 290.00 mm × 292.80 mm (3.65'' × 11.42'' × 11.53'')
  • Package Dimensions (W × H × D)394.00 mm × 264.00 mm × 487.00 mm (15.51'' × 10.39'' × 19.17'')
  • Operating Temperature5 °C to 45 °C (41 °F to 113 °F)
  • Storage Temperature-40 °C to 70 °C (-40 °F to 158 °F)
  • Operating Humidity20% to 80% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply300 W PSU，92% Energy efficiency，80 Plus Platinum
  • Form FactorTower SFF
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
