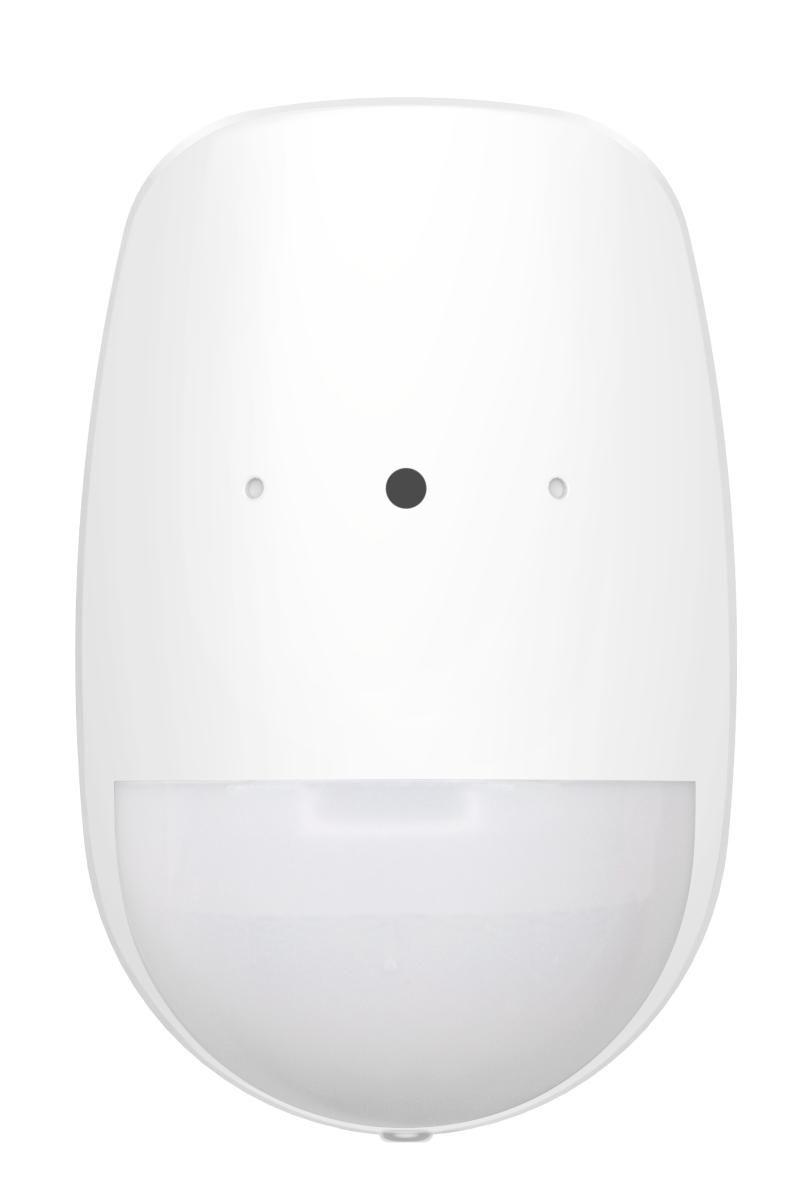

Wireless PIR-Glass Break Detector

PIR Detection Range: 12m/85.9°
Glass Break Range: 8m 120°
Up to 30kg pet immunity
Fully remote configurable through APP
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected

View Less

Data Sheet

Available models:

DS-PDPG12P-EG2-WE

Specification
Resources
Accessories

Data Sheet

Detection Performance
Detection MethodPassive Infrared;Acoustic Sensor
Detection Range12m
Detection Angle85.9°
Detection Zones52
Detectable Speed0.3～2m/s
Pet Immunity30Kg
PIR SensitivityAuto, high, pet
White Light Filter6500lux
Glass Break Range8m
Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
Glass Break Sensitivity2m, 4m, 6m, 8m
Glass Thickness2.4 mm to 6.4 mm
Digital Temperature CompensationSupport
Glass Size0.3 m × 0.3 m to 3 m × 3 m
Creep Zone ProtectionSupport

Feature
Digital ProcessingSupport
Sealed OpticsSupport
Tamper ProtectionFront;Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport

Interface
Power SwitchPower up uenrolling
LED IndicatorGreen(PIR), Red(BG), Blue(alarm)

Transmission
Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.6Km
Frequency HoppingSupport
Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics
Standard Battery LifeUp to 4 years (standby time)
Power SupplyBattery powered
Battery TypeCR123A × 2
Typical Voltage3V

General
Operation Temperature-10°C to 55°C (14°F to 131°F)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Operation Humidity10% to 90%
Dimension(WxHxD)65.5 mm × 103 mm × 48.5 mm
Weight134g
Mounting Height1.8 m to 2.4 m
Mounting MethodWall
Application ScenarioIndoor
BracketOptional wall & ceiling accessory

Detection Performance

Detection Method

Passive Infrared;Acoustic Sensor

Detection Range

12m

Detection Angle

85.9°

Detection Zones

Detectable Speed

0.3～2m/s

Pet Immunity

30Kg

PIR Sensitivity

Auto, high, pet

White Light Filter

6500lux

Glass Break Range

Glass Type

Float;Plate;Tampered;Wired;Laminated Leaded;Double Glazing

Glass Break Sensitivity

2m, 4m, 6m, 8m

Glass Thickness

2.4 mm to 6.4 mm

Digital Temperature Compensation

Support

Glass Size

0.3 m × 0.3 m to 3 m × 3 m

Creep Zone Protection

Support

Feature

Digital Processing

Support

Sealed Optics

Support

Tamper Protection

Front;Rear

Environment Temperature Indicator

Support

Signal Strength Indicator

Support

Interface

Power Switch

Power up uenrolling

LED Indicator

Green(PIR), Red(BG), Blue(alarm)

Transmission

Transmission Technology

Tri-X Wireless

Transmission Method

Two-Way RF Wireless

Transmission Frequency

868MHz

Transmission Security

AES-128 Encryption

Transmission Range(Free Space)

1.6Km

Frequency Hopping

Support

Enrolling Method

Power up;Remote ID;QR Code

Electrical Characteristics

Standard Battery Life

Up to 4 years (standby time)

Power Supply

Battery powered

Battery Type

CR123A × 2

Typical Voltage

General

Operation Temperature

-10°C to 55°C (14°F to 131°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Operation Humidity

10% to 90%

Dimension(WxHxD)

65.5 mm × 103 mm × 48.5 mm

Weight

134g

Mounting Height

1.8 m to 2.4 m

Mounting Method

Wall

Application Scenario

Indoor

Bracket

Optional wall & ceiling accessory

Detection Performance

Detection MethodPassive Infrared;Acoustic Sensor
Detection Range12m
Detection Angle85.9°
Detection Zones52
Detectable Speed0.3～2m/s
Pet Immunity30Kg
PIR SensitivityAuto, high, pet
White Light Filter6500lux
Glass Break Range8m
Glass TypeFloat;Plate;Tampered;Wired;Laminated Leaded;Double Glazing
Glass Break Sensitivity2m, 4m, 6m, 8m
Glass Thickness2.4 mm to 6.4 mm
Digital Temperature CompensationSupport
Glass Size0.3 m × 0.3 m to 3 m × 3 m
Creep Zone ProtectionSupport

Feature

Digital ProcessingSupport
Sealed OpticsSupport
Tamper ProtectionFront;Rear
Environment Temperature IndicatorSupport
Signal Strength IndicatorSupport

Interface

Power SwitchPower up uenrolling
LED IndicatorGreen(PIR), Red(BG), Blue(alarm)

Transmission

Transmission TechnologyTri-X Wireless
Transmission MethodTwo-Way RF Wireless
Transmission Frequency868MHz
Transmission SecurityAES-128 Encryption
Transmission Range(Free Space)1.6Km
Frequency HoppingSupport
Enrolling MethodPower up;Remote ID;QR Code

Electrical Characteristics

Standard Battery LifeUp to 4 years (standby time)
Power SupplyBattery powered
Battery TypeCR123A × 2
Typical Voltage3V

General

Operation Temperature-10°C to 55°C (14°F to 131°F)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Operation Humidity10% to 90%
Dimension(WxHxD)65.5 mm × 103 mm × 48.5 mm
Weight134g
Mounting Height1.8 m to 2.4 m
Mounting MethodWall
Application ScenarioIndoor
BracketOptional wall & ceiling accessory
