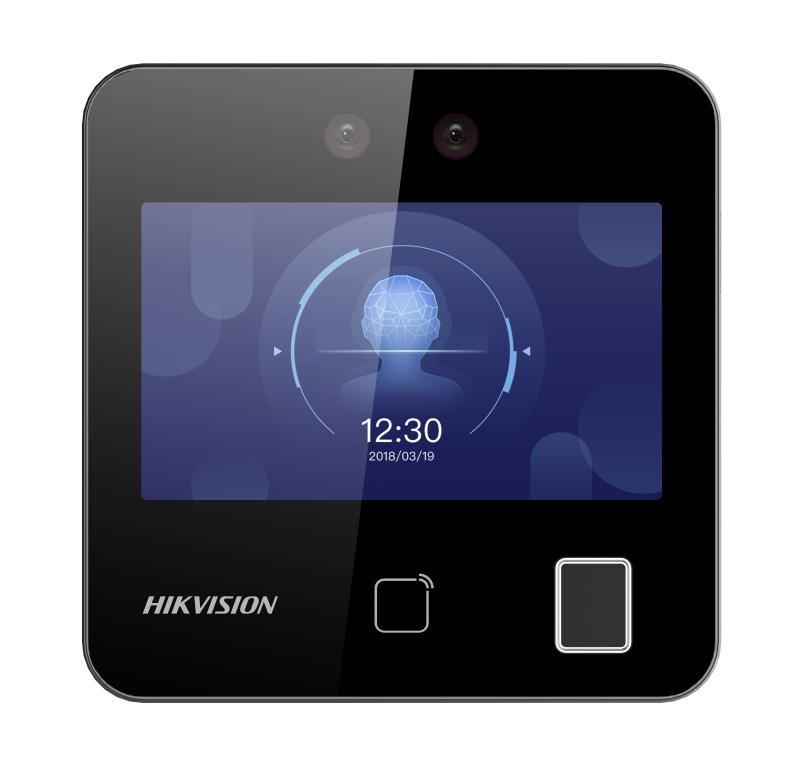

Value Series Face Access Terminal

Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens,Built-in M1 card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face recognition. Distance: 0.3 m to 1.5 m
Duration < 0.2 s/User
Accuracy rate ≥ 99%

View Less

Data Sheet

Available models:

DS-K1T343MFX

Specification
Resources
Accessories

Data Sheet

Display
Screen size4.3 inch
Operation methodCapacitive touch screen
TipoLCD

Video
Lens2
Resolution2 MP

Audio
Audio qualityNoise suppression and echo cancellation

Network
Wired networkSupport

Interface
Network interface1 RJ-45, 10/100 M self-adaptive
Lock control1
Exit button1
Door contact input1
TAMPER1
RS-4851 RS-485 (Half duplex, HIKVISION)
Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
USB1

Authentication
Card typeM1 card
Card reading frequency13.56 MHz

General
Power supply12 VDC, 1 A (power adapter included)
Working temperature-10 °C to 40 °C (14 °F to 104 °F)
Working humidity0 to 90% (No condensing)
Dimensions118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86")
InstallationWall mounting, base mounting
LínguaEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
PlatformHik-ProConnect and HikCentral Professional

Function
Face anti-spoofingSupport

Display

Screen size

4.3 inch

Operation method

Capacitive touch screen

Tipo

LCD

Video

Lens

Resolution

2 MP

Audio

Audio quality

Noise suppression and echo cancellation

Network

Wired network

Support

Interface

Network interface

1 RJ-45, 10/100 M self-adaptive

Lock control

Exit button

Door contact input

TAMPER

RS-485

1 RS-485 (Half duplex, HIKVISION)

Wiegand

1 Wiegand(Hik 26bit,Hik 34bit)

USB

Authentication

Card type

M1 card

Card reading frequency

13.56 MHz

General

Power supply

12 VDC, 1 A (power adapter included)

Working temperature

-10 °C to 40 °C (14 °F to 104 °F)

Working humidity

0 to 90% (No condensing)

Dimensions

118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86")

Installation

Wall mounting, base mounting

Língua

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese

Platform

Hik-ProConnect and HikCentral Professional

Function

Face anti-spoofing
