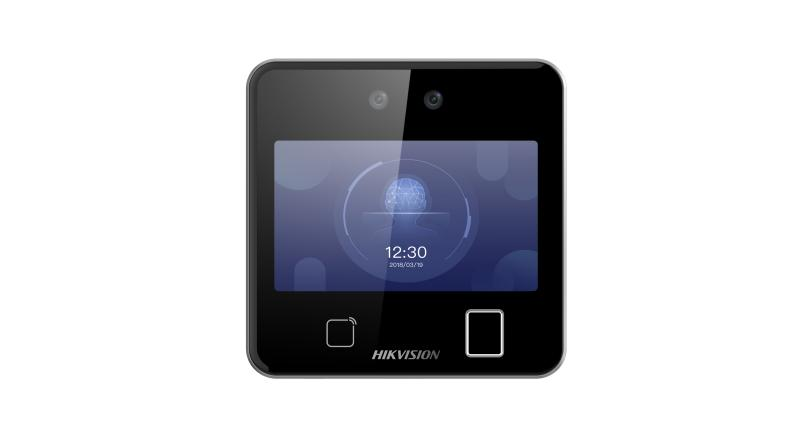

Pro Series Face Recognition Terminals

  • Face recognition distance: 0.3 m to 3 m
  • 6,000 face capacity, 10,000 card capacity, 5,000 fingerprint capacity for device support fingerprint related functions, and 150,000 event capacity
  • Face recognition duration < 0.2 s/User; face recognition accuracy rate ≥ 99%
  • Two-way audio with indoor station and master station
  • Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  • Remotely opens door and starts live view via Hik-Connect
  • Configuration via the web client
  • Supports ISAPI and EHome 5.0 protocol
View Less
View more

Specification

  • Display
  • Dimensions4.3-inch
  • TipoIPS Full Screen
  • Operation methodCapacitive touch screen
  • Video
  • Pixel2 MP
  • Lens× 2
  • Audio
  • Tone qualityNoise suppression and echo cancellation
  • Network
  • Wired network10 M/100 M/1000 M self-adaptive
  • Interface
  • Network interface1
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface2-pin
  • Authentication
  • Card typeEM card;M1 card
  • Card reading frequency125 KHz or 13.56MHz
  • General
  • button-
  • Power supply method12V/2A(power adapter not included)
  • Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions118 × 118 × 20mm(4.6'' × 4.6'' × 0.7'')
  • Application environmentIndoor
  • InstallationSurface, optional base stand
  • Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport

Specification

Specification
Display
  • Dimensions4.3-inch
  • TipoIPS Full Screen
  • Operation methodCapacitive touch screen
Video
  • Pixel2 MP
  • Lens× 2
Audio
  • Tone qualityNoise suppression and echo cancellation
Network
  • Wired network10 M/100 M/1000 M self-adaptive
Interface
  • Network interface1
  • Lock output1
  • Exit button1
  • Door contact input1
  • Power interface2-pin
Authentication
  • Card typeEM card;M1 card
  • Card reading frequency125 KHz or 13.56MHz
General
  • button-
  • Power supply method12V/2A(power adapter not included)
  • Working temperature-10 °C to 50 °C (-58 °F to 122 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions118 × 118 × 20mm(4.6'' × 4.6'' × 0.7'')
  • Application environmentIndoor
  • InstallationSurface, optional base stand
Function
  • QR code recognitionSupport
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
