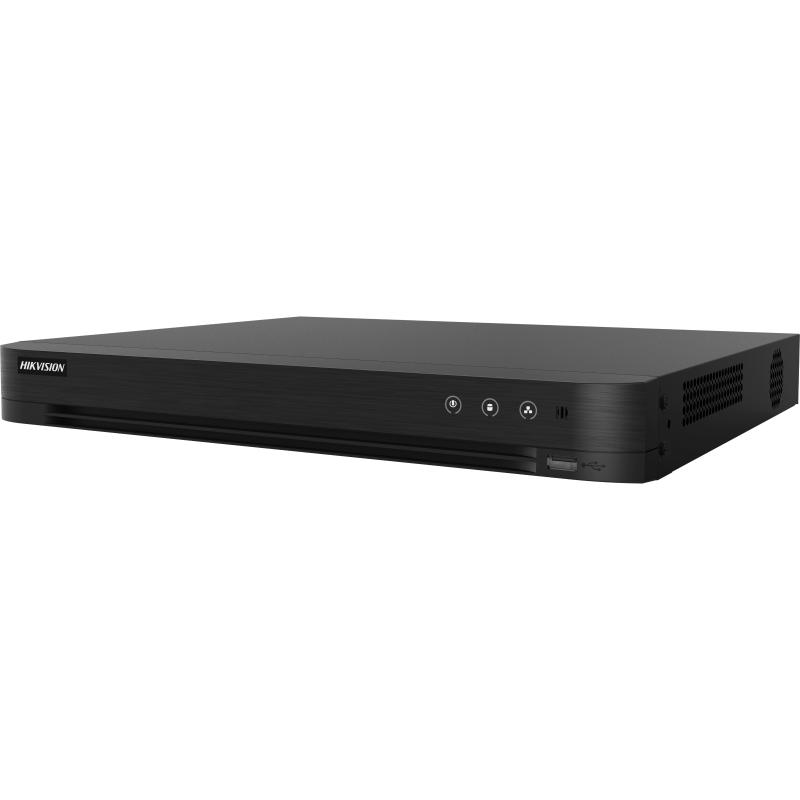

4-ch 5 MP 1U H.265 AcuSense DVR

4 channels and 2 HDD 1U AcuSense DVR
Supports false alarm reduction based on deep learning algorithm
Efficient H.265 pro+ compression technology
Encoding ability up to 4K @ 7.5 fps/ 3K@12fps
Up to 6 network cameras can be connected
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

View Less

Data Sheet

Available models:

iDS-7204HUHI-M2/FA(C)

iDS-7204HUHI-M2/FA

Especificação
Resources
Acessórios

Data Sheet

Facial Recognition
Face Picture LibraryUp to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
Face Picture Comparison1-ch face picture comparison alarm (HD analog camera)

Proteção de perímetro
Análise Humana/VeicularUp to 4-ch

Facial Detection
Facial Detection and CaptureFace picture comparison, face picture search

Video and Audio
Entrada de vídeo IP2-ch (up to 6-ch) Up to 8 MP resolution IP enhanced mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras
Entrada de vídeo analógica4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Saída HDMI1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
Saída VGA1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
Entrada CVBSPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback4-ch
Entrada HDTVI8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
Entrada AHD5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Entrada HDCVI8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Saída de áudio1-ch, RCA (Linear, 1 KΩ)
Entrada de áudio1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Gravação
Compressão de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolução de codificação8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Taxa de quadrosMain stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Taxa de bits de vídeo32 Kbps to 10 Mbps
Transmissão duplaSupport
Tipo de transmissãoVideo, Video & Audio
Compressão de áudioG.711u
Taxa de bits de áudio64 Kbps

Rede
Total Bandwidth96 Mbps
Protocolo de redeTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Conexão remota32
Interface de rede1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Interface Auxiliar
SATA2 SATA interface
Capacidadeup to 10 TB capacity for each disk
Interface serialRS-485 (half-duplex)
Interface USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Entrada/saída de alarmeN/A

Geral
Fonte de alimentação12 VDC, 2.3 A
Consumo≤ 10 W
Temperatura de funcionamento-10 °C to 55 °C (14 °F to 131 °F)
Umidade de funcionamento10% to 90%
Dimensões (L×P×A)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
Peso≤ 1.16 kg (2.6 lb)

Facial Recognition

Face Picture Library

Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)

Face Picture Comparison

1-ch face picture comparison alarm (HD analog camera)

Proteção de perímetro

Análise Humana/Veicular

Up to 4-ch

Facial Detection

Facial Detection and Capture

Face picture comparison, face picture search

Video and Audio

Entrada de vídeo IP

2-ch (up to 6-ch) Up to 8 MP resolution IP enhanced mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras

Entrada de vídeo analógica

4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Saída HDMI

1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

Saída VGA

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

Entrada CVBS

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous playback

4-ch

Entrada HDTVI

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

Entrada AHD

5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

Entrada HDCVI

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

Saída de áudio

1-ch, RCA (Linear, 1 KΩ)

Entrada de áudio

1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Gravação

Compressão de vídeo

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolução de codificação

8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Taxa de quadros

Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Taxa de bits de vídeo

32 Kbps to 10 Mbps

Transmissão dupla

Support

Tipo de transmissão

Video, Video & Audio

Compressão de áudio

G.711u

Taxa de bits de áudio

64 Kbps

Rede

Total Bandwidth

96 Mbps

Protocolo de rede

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Conexão remota

Interface de rede

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Interface Auxiliar

SATA

2 SATA interface

Capacidade

up to 10 TB capacity for each disk

Interface serial

RS-485 (half-duplex)

Interface USB

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Entrada/saída de alarme

N/A

Geral

Fonte de alimentação

12 VDC, 2.3 A

Consumo

≤ 10 W

Temperatura de funcionamento

-10 °C to 55 °C (14 °F to 131 °F)

Umidade de funcionamento

10% to 90%

Dimensões (L×P×A)

384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)

Peso

≤ 1.16 kg (2.6 lb)
