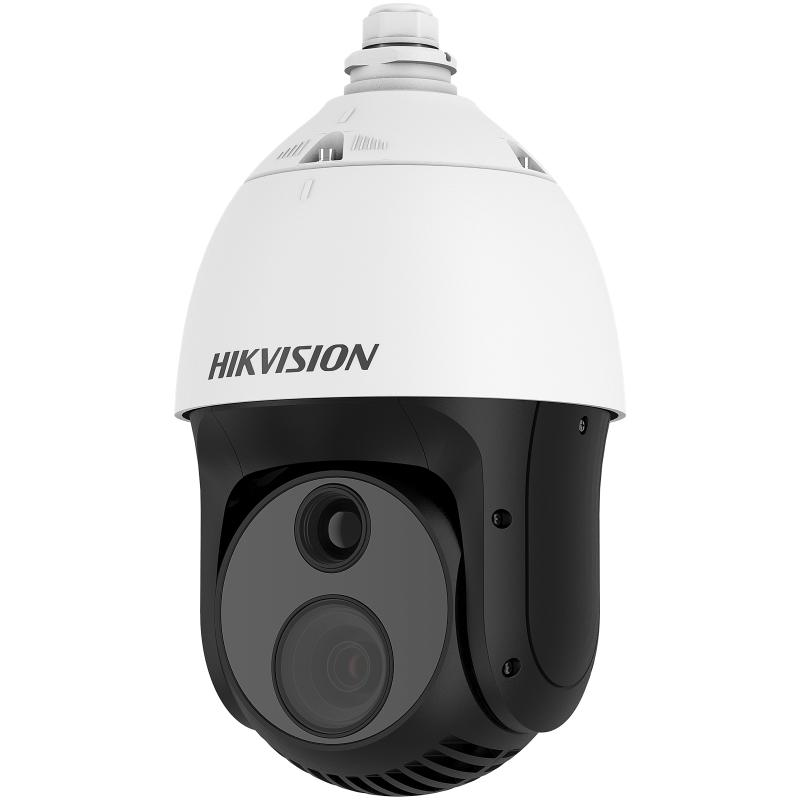

Thermal & Optical Bi-spectrum Network Speed Dome

  • High sensitivity thermal module with 384 × 288 resolution
  • NETD is less than 40 mk (@25° C, F#=1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm

Especificação
  • Thermal Module
  • Image sensorVanadium Oxide Uncooled Focal Plane Arrays
  • Intervalo de pixel17μm
  • NETDless than 40mk (@25°C,F#=1.0)
  • MRAD0.68
  • Field of View14.88° × 11.19°
  • Distância mín. de foco13 m
  • AberturaF1.0
  • Response waveband8μm to 14μm
  • Optical Module
  • Resolução máx.1920 × 1080
  • Sensor de imagem1/2.8’’ Progressive Scan CMOS
  • Iluminação mínimaColor: 0.05 lux @ (F1.2 , AGC On ),B/W : 0.01 lux @ (F1.2 , AGC On )
  • Field of View65.6° to 2.46° (Wide-Tele)
  • Faixa de aberturaF1.2-F4.4
  • Modo de focoAuto / Semiautomatic / Manual
  • WDR120dB
  • Velocidade do obturador1s to 1/100,000s
  • Dia e noiteIR Cut Filter
  • Funções inteligentes
  • Detecção de incêndioDynamic fire point detection, up to 10 fire points detectable.
  • VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
  • Medição de temperatura3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
  • Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
  • Precisão de temperatura±8 °C (14.4 °F)
  • PTZ
  • Intervalo de movimentoPan: 360° Continuous Rotate; Tilt: From -5° to + 90° (auto flip)
  • Velocidade de panoramização0.1°/s to 200°/s
  • Tilt Speed0.1°/s to 105°/s
  • Zoom proporcionalYes
  • Predefinições300
  • Varredura de rastreamento8; Up to 32 Presets Per Patrol
  • Varredura de padrão4; More Than 10 Minutes Per Pattern
  • Memória de desligamentoYes
  • EstacionamentoPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • Status de PTTurn On/Turn Off
  • Tarefa agendadaPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • Rede
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Navegador da webLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
  • Main StreamVisible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) ,Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) ,Thermal: 25fps(1280 × 720), 25fps(704 × 546), 25fps(384 × 288), 25fps(352 × 288)
  • Sub streamVisible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288) ,Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 288) ,Thermal: 25fps(704 × 546), 25fps(384 × 288), 25fps(352 × 288)
  • Video compressionH.265 (Main Profile) ,H.264 (Baseline/Main/High Profile)
  • Audio compressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous live viewUp to 20-ch
  • Nível de usuário/hostUp to 32 users, 3 levels: Administrator, Operator, User
  • Security measuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Infrared
  • Distância de IRUp to 100 m
  • Intensidade e ângulo do IRAutomatically adjusted
  • Integration
  • Entrada de alarmeUp to 7-ch Input (0-5V DC)
  • Saída de alarmeUp to 2-ch Relay Output; Support Alarm Linkage
  • Ações de alarmePreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Entrada de áudioLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
  • Saída de áudioLinear Level; Impedance: 600Ω
  • EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
  • SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
  • Saída de vídeo analógico1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
  • Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
  • ClientiVMS-4200
  • Navegador da webIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
  • Geral
  • Menu LanguageEnglish
  • Alimentação24 V AC± 25%
  • Consumo de energia30W
  • Temperatura/umidade de funcionamentoFrom -30 °C to 60 °C (-22 °F to 140 °F), 90% or less
  • Nível de proteçãoIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensions305 mm × 185 mm × 163 mm (12.01 " × 7.28" × 6.42 ")
  • Approx. 3.9Kg (8.6lb)
Especificação
Firmware
Aplicado à:
DS-2TD4237-25/V2
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
