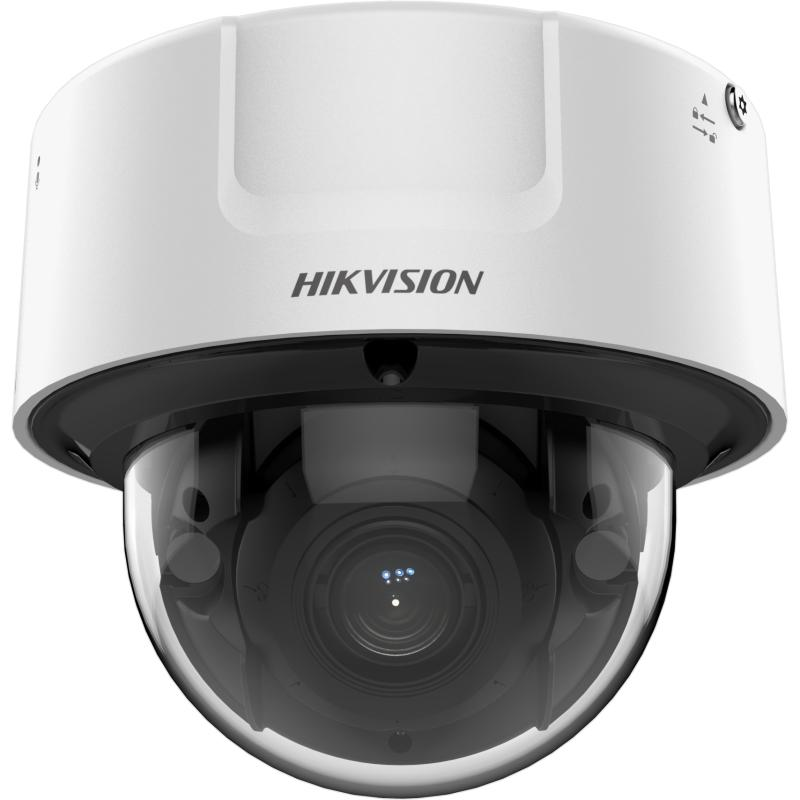

8MP DeepinView Indoor Moto Varifocal Dome Camera

High quality imaging with 8 MP resolution
Excellent low-light performance via DarkFighter technology
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
5 streams to meet a wide variety of applications
Vandal proof (IK10)

View Less

Available models:

iDS-2CD7186G0-IZS(2.8-12mm)/Retail

iDS-2CD7186G0-IZS(Retail)

EOL

Especificação
Resources
Acessórios

Câmera
Sensor de imagem1/1.8" Progressive Scan CMOS
Resolução máx.3840 × 2160
Iluminação mínimaColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Tempo do obturador1 s to 1/100,000 s
Dia e noiteIR cut filter Blue glass module to reduce ghost phenomenon
Ajuste de ÂnguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lentes
Focal Length & FOV2.8 to 12 mm, horizontal FOV: 112.3° to 41.2°, vertical FOV: 58° to 23.1°, diagonal FOV: 137.3° to 47.3° 8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°
FocoAuto, semi-auto, manual
Iris TypeP-iris
Abertura2.8 to 12 mm: F1.2 to 2.5 8 to 32 mm: F1.7 to F1.73

DORI
DORIWide: 2.8 to 12 mm: D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m 8 to 32 mm: D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m Tele: 2.8 to 12 mm: D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m 8 to 32 mm: D: 580 m, O: 230.2 m, R: 116 m, I: 58 m

luminador
IR Wavelength850 nm
Luz complementar inteligenteYes
Faixa de luz suplementar2.8 to 12 mm: 30 m 8 to 32 mm: 50 m
Tipo de luz suplementarIR

Vídeo
Convencional50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Subfluxo50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Transmissão terciária50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Transmissão quaternária50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Transmissão quintenária50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Compressão de vídeo H.265+/H.265/H.264+/H.264/MJPEG
Taxa de bits de vídeo32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Baseline Profile/Main Profile/High Profile
Controle da taxa de bitsCBR/VBR
Codificação de vídeo escalável (SVC)H.264 and H.265 encoding
Região de interesse (ROI)4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
Corte de alvosYes

Áudio
Taxa de bits de áudio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
Compressão de áudio G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Taxa de amostragem de áudio8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Tipo de áudioMono sound
Filtragem de ruído ambienteYes

Rede
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Visualização ao vivo simultâneaUp to 20 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Usuário/HostUp to 32 users 3 user levels: administrator, operator, and user
Armazenamento de redeNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
SegurançaPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
ClientiVMS-4200, Hik-Connect
Navegador da webPlug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge

Imagem
Interruptor de parâmetros de imagemYes
Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
Switch Dia/NoiteDay, Night, Auto, Schedule, Alarm Trigger
Ampla Faixa Dinâmica (WDR)120 dB
AntineblinaYes
Aprimoramento da imagemBLC, HLC, Defog, 3D DNR
SNR≥ 52 dB
Máscara de privacidade8 programmable polygon privacy masks, mask color or mosaic configurable
Image StabilizationEIS
Sobreposição de imagemLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface
Saída de vídeo1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Armazenamento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Áudio1 input (line in), 1 output (line out), 3.5 mm connector,1 built-in microphone
Alarme 1 input, 1 output (max. 24 VDC, 1 A)
RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Potência de saída12 VDC, max. 100 mA

Evento
Eventos básicos Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function
Detecção de tipo de vários alvosSupports simultaneous detection and capture of human body, face and vehicle Gets 7 face features, 13 human body features and 2 vehicle features
Captura facial1. Detects up to 60 faces simultaneously 2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30° 3. Uploads face with background and closed-up face pictures
Comparação de faceUp to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total. Supports face library encryption
Proteção de perímetroLine crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Geral
Alimentação12 VDC± 20%, 1.02 A, max. 12.4 W, two-core terminal block 24 VAC± 20%, 0.49 A, max. 11.8 W, two-core terminal block PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.22 A to 0.29 A, max. 12.5 W
DimensõesØ140.5 × 122.6 mm (Ø5.5″ × 4.8″)
Dimensões do pacote244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
PesoApprox. 875 g (1.93 lb.)
Com peso do pacoteApprox. 1415 g (3.11 lb.)
Condições de inicialização e operação-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Condições de armazenamento-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
Função geralHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams

Aprovação
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
SegurançaUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProteçãoIK10 (IEC 62262:2002)
OutrosPVC FREE

Câmera

Sensor de imagem

1/1.8" Progressive Scan CMOS

Resolução máx.

3840 × 2160

Iluminação mínima

Color: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR

Tempo do obturador

1 s to 1/100,000 s

Dia e noite

IR cut filter Blue glass module to reduce ghost phenomenon

Ajuste de Ângulo

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lentes

Focal Length & FOV

2.8 to 12 mm, horizontal FOV: 112.3° to 41.2°, vertical FOV: 58° to 23.1°, diagonal FOV: 137.3° to 47.3° 8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°

Foco

Auto, semi-auto, manual

Iris Type

P-iris

Abertura

2.8 to 12 mm: F1.2 to 2.5 8 to 32 mm: F1.7 to F1.73

DORI

Wide: 2.8 to 12 mm: D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m 8 to 32 mm: D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m Tele: 2.8 to 12 mm: D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m 8 to 32 mm: D: 580 m, O: 230.2 m, R: 116 m, I: 58 m

luminador

IR Wavelength

850 nm

Luz complementar inteligente

Yes

Faixa de luz suplementar

2.8 to 12 mm: 30 m 8 to 32 mm: 50 m

Tipo de luz suplementar

Vídeo

Convencional

50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

Subfluxo

50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Transmissão terciária

50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Transmissão quaternária

50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Transmissão quintenária

50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)

Compressão de vídeo

H.265+/H.265/H.264+/H.264/MJPEG

Taxa de bits de vídeo

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Baseline Profile/Main Profile/High Profile

Controle da taxa de bits

CBR/VBR

Codificação de vídeo escalável (SVC)

H.264 and H.265 encoding

Região de interesse (ROI)

4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream

Corte de alvos

Yes

Áudio

Taxa de bits de áudio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)

Compressão de áudio

G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3

Taxa de amostragem de áudio

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Tipo de áudio

Mono sound

Filtragem de ruído ambiente

Yes

Rede

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Visualização ao vivo simultânea

Up to 20 channels

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

Usuário/Host

Up to 32 users 3 user levels: administrator, operator, and user

Armazenamento de rede

NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Segurança

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Client

iVMS-4200, Hik-Connect

Navegador da web

Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge

Imagem

Interruptor de parâmetros de imagem

Yes

Image Settings

Saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser

Switch Dia/Noite

Day, Night, Auto, Schedule, Alarm Trigger

Ampla Faixa Dinâmica (WDR)

120 dB

Antineblina

Yes

Aprimoramento da imagem

BLC, HLC, Defog, 3D DNR

SNR

≥ 52 dB

Máscara de privacidade

8 programmable polygon privacy masks, mask color or mosaic configurable

Image Stabilization

EIS

Sobreposição de imagem

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

Saída de vídeo

1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Armazenamento a bordo

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Áudio

1 input (line in), 1 output (line out), 3.5 mm connector,1 built-in microphone

Alarme

1 input, 1 output (max. 24 VDC, 1 A)

RS-485

1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

Potência de saída

12 VDC, max. 100 mA

Evento

Eventos básicos

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis

Evento inteligente

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function

Detecção de tipo de vários alvos

Supports simultaneous detection and capture of human body, face and vehicle Gets 7 face features, 13 human body features and 2 vehicle features

Captura facial

1. Detects up to 60 faces simultaneously 2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30° 3. Uploads face with background and closed-up face pictures

Comparação de face

Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total. Supports face library encryption

Proteção de perímetro

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Geral

Alimentação

12 VDC± 20%, 1.02 A, max. 12.4 W, two-core terminal block 24 VAC± 20%, 0.49 A, max. 11.8 W, two-core terminal block PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.22 A to 0.29 A, max. 12.5 W

Dimensões

Ø140.5 × 122.6 mm (Ø5.5″ × 4.8″)

Dimensões do pacote

244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)

Peso

Approx. 875 g (1.93 lb.)

Com peso do pacote

Approx. 1415 g (3.11 lb.)

Condições de inicialização e operação

-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Condições de armazenamento

-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)

Função geral

Heartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams

Aprovação

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)

Segurança

UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Proteção

IK10 (IEC 62262:2002)

Outros

PVC FREE

Câmera

Sensor de imagem1/1.8" Progressive Scan CMOS
Resolução máx.3840 × 2160
Iluminação mínimaColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Tempo do obturador1 s to 1/100,000 s
Dia e noiteIR cut filter Blue glass module to reduce ghost phenomenon
Ajuste de ÂnguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lentes

Focal Length & FOV2.8 to 12 mm, horizontal FOV: 112.3° to 41.2°, vertical FOV: 58° to 23.1°, diagonal FOV: 137.3° to 47.3° 8 to 32 mm, horizontal FOV: 41.8° to 14.9°, vertical FOV: 22.92° to 8.48°, diagonal FOV: 48.7° to 17°
FocoAuto, semi-auto, manual
Iris TypeP-iris
Abertura2.8 to 12 mm: F1.2 to 2.5 8 to 32 mm: F1.7 to F1.73

DORI

DORIWide: 2.8 to 12 mm: D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m 8 to 32 mm: D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m Tele: 2.8 to 12 mm: D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m 8 to 32 mm: D: 580 m, O: 230.2 m, R: 116 m, I: 58 m

luminador

IR Wavelength850 nm
Luz complementar inteligenteYes
Faixa de luz suplementar2.8 to 12 mm: 30 m 8 to 32 mm: 50 m
Tipo de luz suplementarIR

Vídeo

Convencional50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Subfluxo50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Transmissão terciária50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Transmissão quaternária50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Transmissão quintenária50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Compressão de vídeo H.265+/H.265/H.264+/H.264/MJPEG
Taxa de bits de vídeo32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Baseline Profile/Main Profile/High Profile
Controle da taxa de bitsCBR/VBR
Codificação de vídeo escalável (SVC)H.264 and H.265 encoding
Região de interesse (ROI)4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
Corte de alvosYes

Áudio

Taxa de bits de áudio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
Compressão de áudio G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Taxa de amostragem de áudio8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Tipo de áudioMono sound
Filtragem de ruído ambienteYes

Rede

ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Visualização ao vivo simultâneaUp to 20 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Usuário/HostUp to 32 users 3 user levels: administrator, operator, and user
Armazenamento de redeNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
SegurançaPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
ClientiVMS-4200, Hik-Connect
Navegador da webPlug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge

Imagem

Interruptor de parâmetros de imagemYes
Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
Switch Dia/NoiteDay, Night, Auto, Schedule, Alarm Trigger
Ampla Faixa Dinâmica (WDR)120 dB
AntineblinaYes
Aprimoramento da imagemBLC, HLC, Defog, 3D DNR
SNR≥ 52 dB
Máscara de privacidade8 programmable polygon privacy masks, mask color or mosaic configurable
Image StabilizationEIS
Sobreposição de imagemLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface

Saída de vídeo1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Armazenamento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Áudio1 input (line in), 1 output (line out), 3.5 mm connector,1 built-in microphone
Alarme 1 input, 1 output (max. 24 VDC, 1 A)
RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Potência de saída12 VDC, max. 100 mA

Evento

Eventos básicos Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function

Detecção de tipo de vários alvosSupports simultaneous detection and capture of human body, face and vehicle Gets 7 face features, 13 human body features and 2 vehicle features
Captura facial1. Detects up to 60 faces simultaneously 2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30° 3. Uploads face with background and closed-up face pictures
Comparação de faceUp to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total. Supports face library encryption
Proteção de perímetroLine crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Geral

Alimentação12 VDC± 20%, 1.02 A, max. 12.4 W, two-core terminal block 24 VAC± 20%, 0.49 A, max. 11.8 W, two-core terminal block PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.22 A to 0.29 A, max. 12.5 W
DimensõesØ140.5 × 122.6 mm (Ø5.5″ × 4.8″)
Dimensões do pacote244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
PesoApprox. 875 g (1.93 lb.)
Com peso do pacoteApprox. 1415 g (3.11 lb.)
Condições de inicialização e operação-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Condições de armazenamento-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
Função geralHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams

Aprovação

EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
SegurançaUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProteçãoIK10 (IEC 62262:2002)
OutrosPVC FREE
