DS-2DP2427ZIXS-DE/440(F0)(P4)

EOL

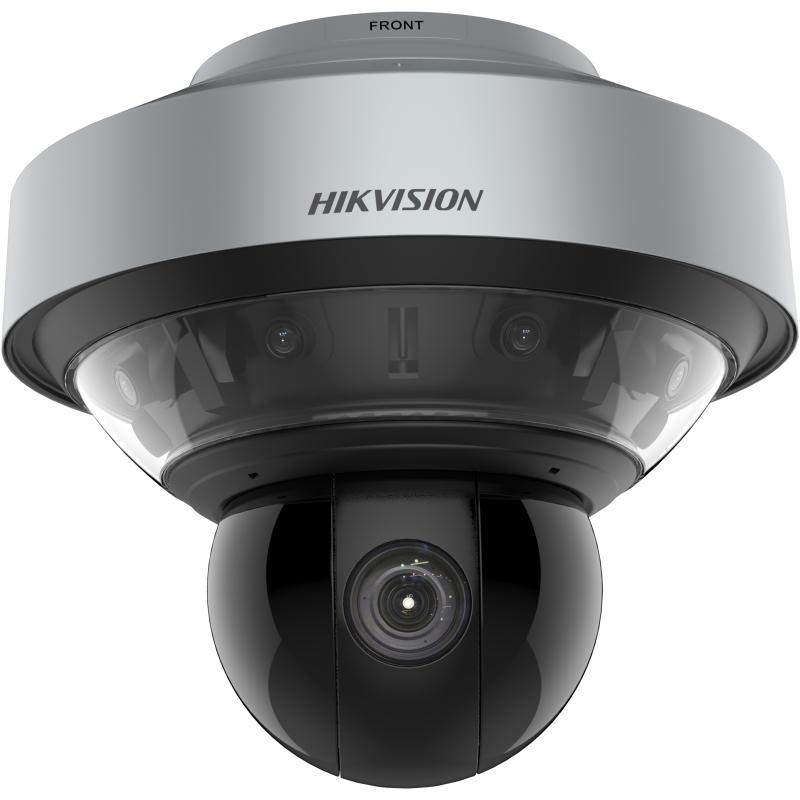

24MP 270° Panoramic & PTZ Camera

High quality imaging with 24 MP resolution, up to 8160×2400 @30 fps for panoramic channels
Excellent low-light performance with DarkFighter technology
40x optical zoom and 16x digital zoom provide close up views over expansive areas
Expansive night view with up to 250 m IR distance
With one click on the panoramic channel, the PTZ channel shows the details automatically
Continous and stable manual tracking, auto-tracking, and panorama tracking
Automatic switch between multiple targets
Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output

View Less

Available models:

DS-2DP2427ZIXS-DE/440(F0)(P4)

Câmera
Sensor de imagem[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Resolução máx.8160×2400
Iluminação mínima[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Velocidade do obturador1 s to 1/30000 s
Dia e noiteIR cut filter
Zoom[PTZ channel] 40x optical, 16x digital
Obturador lentoYes
DORID: 4137.9 m O: 1642.0 m R: 827.6 m I: 413.8 m

Lentes
Distância focal[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
FOV (campo de visão)Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
FocoAuto, semi-auto, manual, rapid focus
AberturaMax. F1.0
Velocidade de zoom[PTZ channel] Approx. 5.6 s

luminador
Tipo de luz suplementarIR
Faixa de luz suplementarUp to 250 m
Luz complementar inteligenteYes

PTZ
Faixa de movimento (panorâmica)360°
Faixa de movimento (inclinação)-15° to 90° (auto flip)
Velocidade de panoramizaçãoPan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s
Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
Predefinições300
Congelamento das predefiniçõesYes
Varredura de rastreamento8 patrols, up to 32 presets for each patrol
Varredura de padrão4 pattern scans, record time over 10 minutes for each scan
Ação de estacionamentoPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Posicionamento em 3DYes
Exibição de status do PTZYes
Tarefa agendadaPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Memória de desligamentoYes

Vídeo
Convencional[Panoramic channel]: 50Hz:25fps (8160×2400,6120×1800,5760×1696，3840×1080), 60Hz: 30fps (8160×2400,6120×1800,5760×1696，3840×1080); [PTZ channel]: 50Hz:25fps (2560x1440,1920×1080,1280×960,1280x720) 60Hz:30fps (2560x1440,1920x1080,1280x960,1280x720)
Subfluxo[Panoramic channel]: 50Hz: 25fps (2048×600,1280×376)； 60Hz:30fps (2048×600,1280×376); [PTZ channel]: 50Hz: 25fps(704×576,640×480,352×288)； 60Hz:30fps(704×480,640×480,352×240);
Transmissão terciária[Panoramic channel]: no [PTZ channel]: 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288)； 60Hz: 30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Compressão de vídeoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Áudio
Compressão de áudioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Taxa de amostragem de áudioPCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Rede
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Visualização ao vivo simultâneaUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuário/HostUp to 32 users. 3 user levels: administrator, operator, and user
SegurançaAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Armazenamento de redeNAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Navegador da webIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagem
Interruptor de parâmetros de imagemYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Switch Dia/NoiteDay, night, auto, scheduled-switch
Ampla Faixa Dinâmica (WDR)[Panoramic channel] no, [PTZ channel] 120 dB
SNR≥ 55 dB
Antineblina[Panoramic channel]: no; [PTZ channel]: optical defog
Image StabilizationEIS
Aprimoramento da imagemBLC, HLC, 3D DNR
Máscara de privacidadeProgrammable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
Foco regionalYes
Exposição regionalYes

Interface
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Armazenamento integradoBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Áudio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarme7 alarm inputs, 2 alarm outputs
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ApagarYes
Fibra óptica1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Evento
Evento inteligenteLine crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Rastreamento inteligenteManual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes

Deep Learning Function
Captura facialDetects up to 30 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
Densidade de pessoasSupports detecting the level of people density in the configured area
Alarme de congestionamentoYes

Geral
Alimentação36 VDC, max. 135 W (including max. 12 W for IR);Hi-POE, max. 75 W
DimensõesØ 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
PesoApprox. 18 kg (39.68 lb.)
MaterialADC12
Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
LimpadorNo
Interruptor de saída de umidadeYes

Aprovação
SegurançaUL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProteçãoIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Especificação

Câmera

Sensor de imagem

[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS

Resolução máx.

8160×2400

Iluminação mínima

[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR

Velocidade do obturador

1 s to 1/30000 s

Dia e noite

IR cut filter

Zoom

[PTZ channel] 40x optical, 16x digital

Obturador lento

Yes

DORI

D: 4137.9 m O: 1642.0 m R: 827.6 m I: 413.8 m

Lentes

Distância focal

[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm

FOV (campo de visão)

Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°

Foco

Auto, semi-auto, manual, rapid focus

Abertura

Max. F1.0

Velocidade de zoom

[PTZ channel] Approx. 5.6 s

luminador

Tipo de luz suplementar

Faixa de luz suplementar

Up to 250 m

Luz complementar inteligente

Yes

PTZ

Faixa de movimento (panorâmica)

360°

Faixa de movimento (inclinação)

-15° to 90° (auto flip)

Velocidade de panoramização

Pan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s

Tilt Speed

Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s

Proportional Pan

[Panoramic channel]: no; [PTZ channel]: yes

Predefinições

300

Congelamento das predefinições

Yes

Varredura de rastreamento

8 patrols, up to 32 presets for each patrol

Varredura de padrão

4 pattern scans, record time over 10 minutes for each scan

Ação de estacionamento

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

Posicionamento em 3D

Yes

Exibição de status do PTZ

Yes

Tarefa agendada

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Memória de desligamento

Yes

Vídeo

Convencional

[Panoramic channel]: 50Hz:25fps (8160×2400,6120×1800,5760×1696，3840×1080), 60Hz: 30fps (8160×2400,6120×1800,5760×1696，3840×1080); [PTZ channel]: 50Hz:25fps (2560x1440,1920×1080,1280×960,1280x720) 60Hz:30fps (2560x1440,1920x1080,1280x960,1280x720)

Subfluxo

[Panoramic channel]: 50Hz: 25fps (2048×600,1280×376)； 60Hz:30fps (2048×600,1280×376); [PTZ channel]: 50Hz: 25fps(704×576,640×480,352×288)； 60Hz:30fps(704×480,640×480,352×240);

Transmissão terciária

[Panoramic channel]: no [PTZ channel]: 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288)； 60Hz: 30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)

Compressão de vídeo

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Áudio

Compressão de áudio

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM

Taxa de amostragem de áudio

PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Rede

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Visualização ao vivo simultânea

Up to 20 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Usuário/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Segurança

Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter

Armazenamento de rede

NAS (NFS, SMB/CIFS), ANR

Client

iVMS-4200, HikCentral Pro, Hik-Connect

Navegador da web

IE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagem

Interruptor de parâmetros de imagem

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Switch Dia/Noite

Day, night, auto, scheduled-switch

Ampla Faixa Dinâmica (WDR)

[Panoramic channel] no, [PTZ channel] 120 dB

SNR

≥ 55 dB

Antineblina

[Panoramic channel]: no; [PTZ channel]: optical defog

Image Stabilization

EIS

Aprimoramento da imagem

BLC, HLC, 3D DNR

Máscara de privacidade

Programmable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable

Foco regional

Yes

Exposição regional

Yes

Interface

Ethernet Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet port

Armazenamento integrado

Built-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB

Áudio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Alarme

7 alarm inputs, 2 alarm outputs

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Apagar

Yes

Fibra óptica

1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Evento

Evento inteligente

Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

Rastreamento inteligente

Manual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes

Deep Learning Function

Captura facial

Detects up to 30 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

Densidade de pessoas

Supports detecting the level of people density in the configured area

Alarme de congestionamento

Yes

Geral

Alimentação

36 VDC, max. 135 W (including max. 12 W for IR);Hi-POE, max. 75 W

Dimensões

Ø 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")

Peso

Approx. 18 kg (39.68 lb.)

Material

ADC12

Operating Condition

-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)

Limpador

Interruptor de saída de umidade

Yes

Aprovação

Segurança

UL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Proteção

IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10

Câmera

Sensor de imagem[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.8" progressive scan CMOS
Resolução máx.8160×2400
Iluminação mínima[Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON); [PTZ channel]: 0.0005 Lux (F1.2, AGC ON), B/W: 0.0001 Lux (F1.2, AGC ON), 0 Lux with IR
Velocidade do obturador1 s to 1/30000 s
Dia e noiteIR cut filter
Zoom[PTZ channel] 40x optical, 16x digital
Obturador lentoYes
DORID: 4137.9 m O: 1642.0 m R: 827.6 m I: 413.8 m

Lentes

Distância focal[Panoramic channel] 2.8 mm; [PTZ channel] 6.0 to 240 mm
FOV (campo de visão)Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
FocoAuto, semi-auto, manual, rapid focus
AberturaMax. F1.0
Velocidade de zoom[PTZ channel] Approx. 5.6 s

luminador

Tipo de luz suplementarIR
Faixa de luz suplementarUp to 250 m
Luz complementar inteligenteYes

PTZ

Faixa de movimento (panorâmica)360°
Faixa de movimento (inclinação)-15° to 90° (auto flip)
Velocidade de panoramizaçãoPan speed: configurable from 0.1° to 210°/s; preset speed: 240°/s
Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Pan[Panoramic channel]: no; [PTZ channel]: yes
Predefinições300
Congelamento das predefiniçõesYes
Varredura de rastreamento8 patrols, up to 32 presets for each patrol
Varredura de padrão4 pattern scans, record time over 10 minutes for each scan
Ação de estacionamentoPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Posicionamento em 3DYes
Exibição de status do PTZYes
Tarefa agendadaPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Memória de desligamentoYes

Vídeo

Convencional[Panoramic channel]: 50Hz:25fps (8160×2400,6120×1800,5760×1696，3840×1080), 60Hz: 30fps (8160×2400,6120×1800,5760×1696，3840×1080); [PTZ channel]: 50Hz:25fps (2560x1440,1920×1080,1280×960,1280x720) 60Hz:30fps (2560x1440,1920x1080,1280x960,1280x720)
Subfluxo[Panoramic channel]: 50Hz: 25fps (2048×600,1280×376)； 60Hz:30fps (2048×600,1280×376); [PTZ channel]: 50Hz: 25fps(704×576,640×480,352×288)； 60Hz:30fps(704×480,640×480,352×240);
Transmissão terciária[Panoramic channel]: no [PTZ channel]: 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288)； 60Hz: 30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Compressão de vídeoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Áudio

Compressão de áudioG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Taxa de amostragem de áudioPCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

Rede

ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Visualização ao vivo simultâneaUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuário/HostUp to 32 users. 3 user levels: administrator, operator, and user
SegurançaAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Armazenamento de redeNAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Navegador da webIE10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagem

Interruptor de parâmetros de imagemYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Switch Dia/NoiteDay, night, auto, scheduled-switch
Ampla Faixa Dinâmica (WDR)[Panoramic channel] no, [PTZ channel] 120 dB
SNR≥ 55 dB
Antineblina[Panoramic channel]: no; [PTZ channel]: optical defog
Image StabilizationEIS
Aprimoramento da imagemBLC, HLC, 3D DNR
Máscara de privacidadeProgrammable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
Foco regionalYes
Exposição regionalYes

Interface

Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
Armazenamento integradoBuilt-in memory card slot, support microSD/microSDHC/microSDXC cards, up to 256 GB
Áudio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarme7 alarm inputs, 2 alarm outputs
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ApagarYes
Fibra óptica1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

Evento

Evento inteligenteLine crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Rastreamento inteligenteManual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes

Deep Learning Function

Captura facialDetects up to 30 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
Densidade de pessoasSupports detecting the level of people density in the configured area
Alarme de congestionamentoYes

Geral

Alimentação36 VDC, max. 135 W (including max. 12 W for IR);Hi-POE, max. 75 W
DimensõesØ 433.5 mm x 430.4 mm (Ø 17.07" x 16.94")
PesoApprox. 18 kg (39.68 lb.)
MaterialADC12
Operating Condition-40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing)
LimpadorNo
Interruptor de saída de umidadeYes

Aprovação

SegurançaUL (UL 62368-1); CB (IEC 62368-1: 2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProteçãoIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
