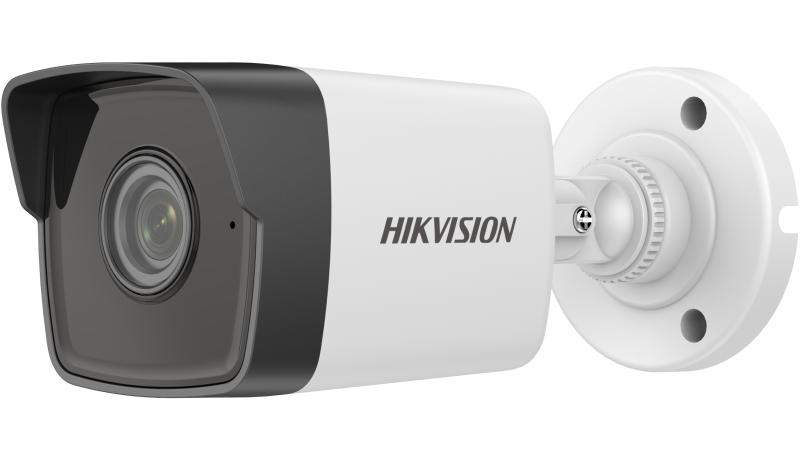

4MP Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
-UF: Built-in microphone for real-time audio security

View Less

Data Sheet

Available models:

DS-2CD1043G1-I(2.8mm)(BRA STD)CKD

DS-2CD1043G1-I#BR

Especificação
Resources
Acessórios

Data Sheet

Câmera
Sensor de imagem1/3" progressive scan CMOS
Resolução máx.2560 × 1440
Iluminação mínimaColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Tempo do obturador1/3 s to 1/100,000 s
Dia e noiteIR cut filter
Ajuste de ÂnguloPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lentes
Tipo de lenteFixed focal length, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
Montagem da lenteM12
Iris TypeFixed
AberturaF2.0

luminador
Tipo de luz suplementarIR
Faixa de luz suplementarUp to 30 m
Luz complementar inteligenteYes
IR Wavelength850 nm

Vídeo
Convencional50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Subfluxo50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Compressão de vídeo Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Taxa de bits de vídeo32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Região de interesse (ROI)1 fixed region for main stream

Áudio
Compressão de áudio -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Taxa de bits de áudio-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Taxa de amostragem de áudio-UF: 8 kHz/16 kHz
Filtragem de ruído ambiente-UF: Yes

Rede
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Visualização ao vivo simultâneaUp to 6 channels
APIOpen Network Video Interface, ISAPI
Usuário/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Navegador da webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagem
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Switch Dia/NoiteAuto, Schedule, Day, Night
Ampla Faixa Dinâmica (WDR)120 dB
Aprimoramento da imagemBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Armazenamento a bordo-UF: Built-in memory card slot, support microSD card, up to 256 GB
Microfone integrado-UF: Yes
Reset Key-UF: Yes

Evento
Eventos básicos Motion detection, video tampering, exception
LinkageUpload to FTP, notify surveillance center, send email -UF also supports: upload to memory card, trigger recording, trigger capture

Geral
Alimentação12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimensões177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7")
Dimensões do pacote216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
PesoApprox. 270 g (0.6 lb.)
Com peso do pacoteApprox. 490 g (1.1 lb.)
Condições de armazenamento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condições de inicialização e operação-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Função geralAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Aprovação
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SegurançaUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProteçãoIP67 (IEC 60529-2013)

Câmera

Sensor de imagem

1/3" progressive scan CMOS

Resolução máx.

2560 × 1440

Iluminação mínima

Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Tempo do obturador

1/3 s to 1/100,000 s

Dia e noite

IR cut filter

Ajuste de Ângulo

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lentes

Tipo de lente

Fixed focal length, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

Montagem da lente

M12

Iris Type

Fixed

Abertura

F2.0

luminador

Tipo de luz suplementar

Faixa de luz suplementar

Up to 30 m

Luz complementar inteligente

Yes

IR Wavelength

850 nm

Vídeo

Convencional

50 Hz: 20 fps (2560 × 1440) 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Subfluxo

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Compressão de vídeo

Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG

Taxa de bits de vídeo

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Região de interesse (ROI)

1 fixed region for main stream

Áudio

Compressão de áudio

-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Taxa de bits de áudio

-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Taxa de amostragem de áudio

-UF: 8 kHz/16 kHz

Filtragem de ruído ambiente

-UF: Yes

Rede

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Visualização ao vivo simultânea

Up to 6 channels

API

Open Network Video Interface, ISAPI

Usuário/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Navegador da web

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagem

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Switch Dia/Noite

Auto, Schedule, Day, Night

Ampla Faixa Dinâmica (WDR)

120 dB

Aprimoramento da imagem

BLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Armazenamento a bordo

-UF: Built-in memory card slot, support microSD card, up to 256 GB

Microfone integrado

-UF: Yes

Reset Key

-UF: Yes

Evento

Eventos básicos

Motion detection, video tampering, exception

Linkage

Upload to FTP, notify surveillance center, send email -UF also supports: upload to memory card, trigger recording, trigger capture

Geral

Alimentação

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Dimensões

177.6 mm × 66.2 mm × 67.8 mm (7.0" × 2.6" × 2.7")

Dimensões do pacote

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Peso

Approx. 270 g (0.6 lb.)

Com peso do pacote

Approx. 490 g (1.1 lb.)

Condições de armazenamento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condições de inicialização e operação

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Função geral

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Aprovação

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Segurança

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Proteção

IP67 (IEC 60529-2013)
