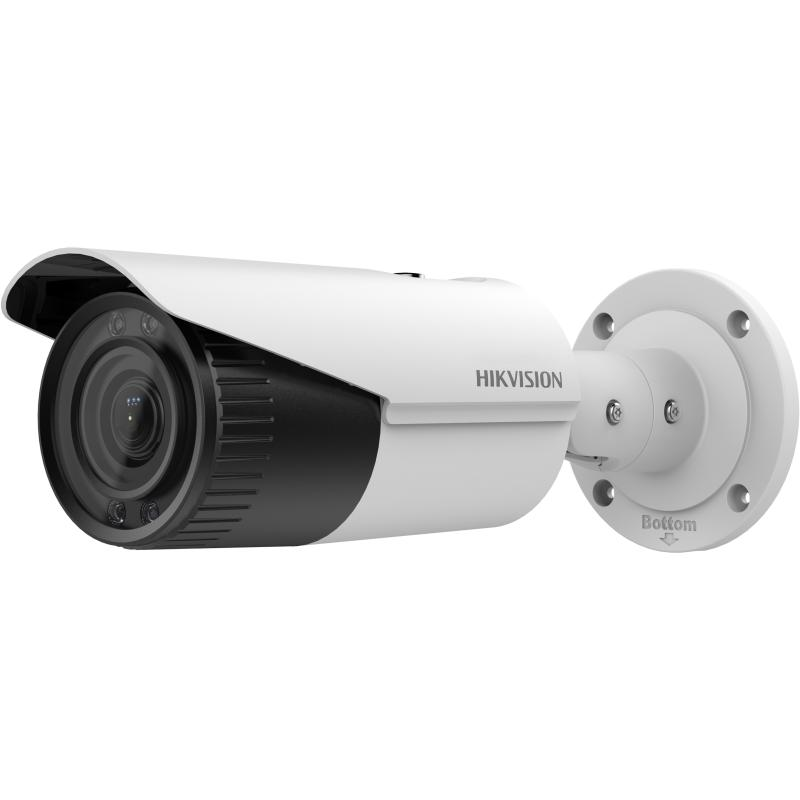

2MP Varifocal Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to WDR technology
3D DNR technology delivers clean and sharp images
Easy installation with Power over Ethernet (PoE) technology
Water and dust resistant (IP67)

View Less

Data Sheet

DS-2CD3621G0-IZ(S)

Especificação
Resources
Acessórios

Data Sheet

Câmera
Sensor de imagem1/2.7" Progressive Scan CMOS
Resolução máx.1920 × 1080
Iluminação mínimaColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Tempo do obturador1/3 s to 1/100, 000 s
Ajuste de ÂnguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lentes
Tipo de lenteVarifocal Lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV2.7 to 13.5 mm: horizontal FOV 94° to 36°, vertical FOV 50° to 20°, diagonal FOV 109° to 41°
Montagem da lenteØ14
Iris TypeFixed
AberturaF1.6

DORI
DORIVarifocal lens: Wide: D: 46 m, O: 18 m, R: 9 m, I: 4 m Tele: D: 125 m, O: 49 m, R: 25 m, I: 12 m

luminador
Faixa de luz suplementarUp to 60 m
Luz complementar inteligenteYes
IR Wavelength850 nm

Vídeo
Convencional50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Subfluxo50 Hz: 25 fps ( 640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Transmissão terciária50 Hz: 1 fps (640 × 360) 60 Hz: 1 fps (640 × 360)
Compressão de vídeo Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Taxa de bits de vídeo32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Região de interesse (ROI)1 fixed region for main stream

Áudio
Compressão de áudio G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Taxa de bits de áudio64 Kbps(G.711 ulaw/G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to160 Kbps(MP2L2)/16 to 64 Kbps(AAC)
Taxa de amostragem de áudio8 kHz/16 kHz
Filtragem de ruído ambienteYes

Rede
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Visualização ao vivo simultâneaUp to 6 channels
APIOpen Network Video Interface, ISAPI
Usuário/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Navegador da webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagem
Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Switch Dia/NoiteDay, Night, Auto, Schedule
Ampla Faixa Dinâmica (WDR)120 dB
Aprimoramento da imagemBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Armazenamento a bordoBuilt-in memory card slot, support microSD card, up to 256 GB
Áudio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarme 1 input, 1 output, (max. 12 VDC, 30 mA)
Reset KeyYes

Evento
Eventos básicos Motion detection, video tampering alarm, exception
Evento inteligenteLine crossing detection, intrusion detection
LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, rigger capture -S: Trigger alarm output

Deep Learning Function
Proteção de perímetroLine crossing, intrusion

Geral
Alimentação12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
DimensõesØ105 mm × 294.5 mm (4.1" × 11.6")
Dimensões do pacote386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
PesoApprox. 1050 g (2.3 lb.)
Com peso do pacoteApprox. 1500 g (3.3 lb.)
Condições de armazenamento-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Condições de inicialização e operação-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
IdiomaEnglish, Ukrainian
Função geralAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Aprovação
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); KC (KN 32: 2015, KN 35: 2015)
SegurançaUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProteçãoIP67 (IEC 60529-2013)
