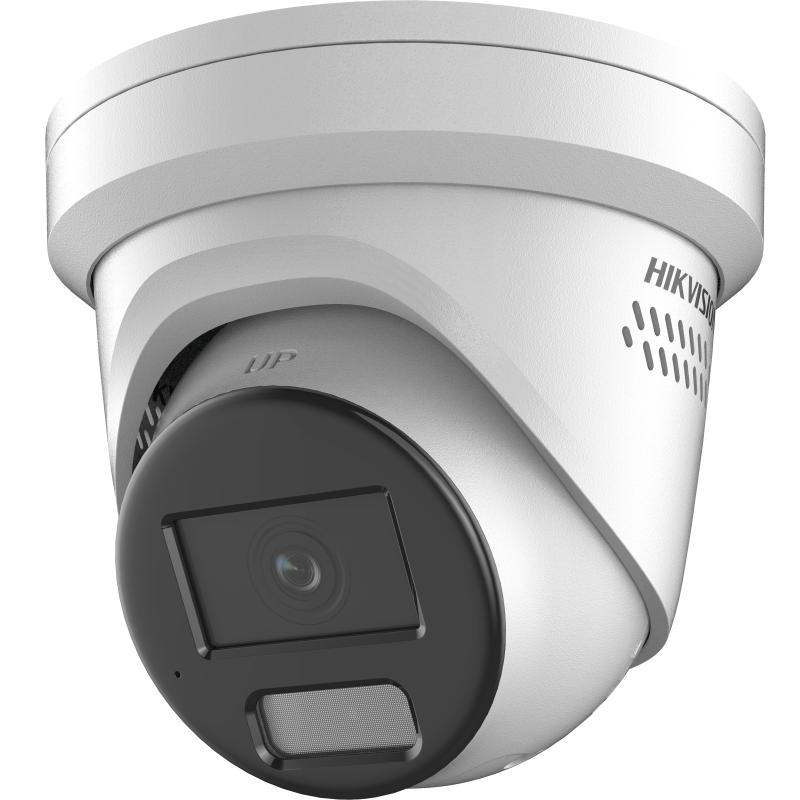

DS-2CD2326G2-ISU/SL

2 MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)

View Less

DS-2CD2326G2-ISU/SL (C)

Available models:

DS-2CD2326G2-ISU/SL(2.8mm)(C)

DS-2CD2326G2-ISU/SL(4mm)(C)

Câmera
Sensor de imagem 1/2.8" Progressive Scan CMOS
Resolução máx. 1920 × 1080
Iluminação mínima Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Tempo do obturador 1/3 s to 1/100,000 s
Dia e noite IR cut filter
Ajuste de Ângulo Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lentes
Tipo de lente Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129° 4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°
Montagem da lente M12
Iris Type Fixed
Abertura F1.4
Depth of Field 2.8 mm: 1.1 m to ∞ 4 mm: 1.2 m to ∞

DORI
DORI 2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m

luminador
Tipo de luz suplementar IR
Faixa de luz suplementar Up to 30 m
Luz complementar inteligente Yes
IR Wavelength 850 nm

Vídeo
Convencional 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Subfluxo 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Transmissão terciária 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
Compressão de vídeo Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Taxa de bits de vídeo 32 Kbps to 8 Mbps
Tipo H.264 Baseline Profile,Main Profile,High Profile
Tipo H.265 Main Profile
Controle da taxa de bits CBR,VBR
Codificação de vídeo escalável (SVC) H.264 and H.265 encoding
Região de interesse (ROI) 1 fixed region(s) for main stream and sub-stream

Áudio
Tipo de áudio Mono sound
Compressão de áudio G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Taxa de bits de áudio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Taxa de amostragem de áudio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtragem de ruído ambiente Yes

Rede
Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Visualização ao vivo simultânea Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Smooth Streaming (Transmissão desimpedida) Yes
Usuário/Host Up to 32 users 3 user levels: administrator, operator, and user
Segurança Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
Armazenamento de rede NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Navegador da web Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+

Imagem
Interruptor de parâmetros de imagem Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Switch Dia/Noite Day,Night,Auto,Schedule
Ampla Faixa Dinâmica (WDR) 120 dB
SNR ≥ 52 dB
Aprimoramento da imagem BLC,HLC,3D DNR
Máscara de privacidade Yes

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Armazenamento a bordo Built-in memory card slot, support microSD card, up to 256 GB
Microfone integrado Yes
Alto-falante embutido Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Áudio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarme 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes

Evento
Eventos básicos Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Evento inteligente Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output, strobe light

Deep Learning Function
Captura facial Yes

Geral
Alimentação 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.26 A to 0.16 A, max. 9.5 W
Dimensões Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Dimensões do pacote 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Peso Approx. 780 g (1.7 lb.)
Com peso do pacote Approx. 1080 g (2.4 lb.)
Condições de armazenamento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condições de inicialização e operação -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Função geral Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Luz intermitente Yes

Aprovação
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015
Segurança UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Proteção IP67: IEC 60529-2013

Especificação

Câmera

Sensor de imagem

1/2.8" Progressive Scan CMOS

Resolução máx.

1920 × 1080

Iluminação mínima

Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR

Tempo do obturador

1/3 s to 1/100,000 s

Dia e noite

IR cut filter

Ajuste de Ângulo

Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lentes

Tipo de lente

Fixed focal lens, 2.8, 4, and 6 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129° 4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°

Montagem da lente

M12

Iris Type

Fixed

Abertura

F1.4

Depth of Field

2.8 mm: 1.1 m to ∞ 4 mm: 1.2 m to ∞

DORI

2.8 mm: D: 44 m, O: 17 m, R: 9 m, I: 4 m 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m

luminador

Tipo de luz suplementar

Faixa de luz suplementar

Up to 30 m

Luz complementar inteligente

Yes

IR Wavelength

850 nm

Vídeo

Convencional

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Subfluxo

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Transmissão terciária

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.

Compressão de vídeo

Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Taxa de bits de vídeo

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile,Main Profile,High Profile

Tipo H.265

Main Profile

Controle da taxa de bits

CBR,VBR

Codificação de vídeo escalável (SVC)

H.264 and H.265 encoding

Região de interesse (ROI)

1 fixed region(s) for main stream and sub-stream

Áudio

Tipo de áudio

Mono sound

Compressão de áudio

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Taxa de bits de áudio

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Taxa de amostragem de áudio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Filtragem de ruído ambiente

Yes

Rede

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

Visualização ao vivo simultânea

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP

Smooth Streaming (Transmissão desimpedida)

Yes

Usuário/Host

Up to 32 users 3 user levels: administrator, operator, and user

Segurança

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)

Armazenamento de rede

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200,Hik-Connect,Hik-Central

Navegador da web

Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+

Imagem

Interruptor de parâmetros de imagem

Yes

Image Settings

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Switch Dia/Noite

Day,Night,Auto,Schedule

Ampla Faixa Dinâmica (WDR)

120 dB

SNR

≥ 52 dB

Aprimoramento da imagem

BLC,HLC,3D DNR

Máscara de privacidade

Yes

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Armazenamento a bordo

Built-in memory card slot, support microSD card, up to 256 GB

Microfone integrado

Yes

Alto-falante embutido

Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.

Áudio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarme

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Reset Key

Yes

Evento

Eventos básicos

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Evento inteligente

Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output, strobe light

Deep Learning Function

Captura facial

Yes

Geral

Alimentação

12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.26 A to 0.16 A, max. 9.5 W

Dimensões

Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

Dimensões do pacote

170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Peso

Approx. 780 g (1.7 lb.)

Com peso do pacote

Approx. 1080 g (2.4 lb.)

Condições de armazenamento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condições de inicialização e operação

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Função geral

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Luz intermitente

Yes

Aprovação

EMC

FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015

Segurança

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Proteção

IP67: IEC 60529-2013
