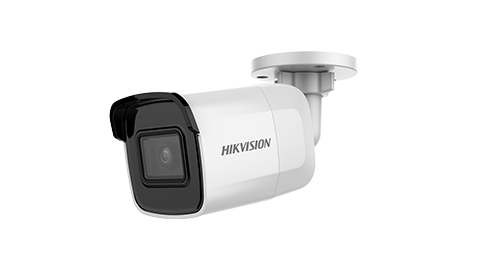

2 MP WDR Fixed Mini Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Support up to 256 GB SD card storage

View Less

Data Sheet

DS-2CD2020F-I(W)

Especificação
Resources
Acessórios

Data Sheet

Câmera
Sensor de imagem1/2.8" Progressive Scan CMOS
Iluminação mínimaColor: 0.01 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
Velocidade do obturador1/3 s to 1/100,000 s
Obturador lentoYes
Ampla faixa dinâmica120 dB
Dia e noiteIR Cut Filter
Ajuste de ÂnguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lentes
FocoFixed
Focal Length & FOV 2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9° 4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8° 6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°
Montagem da lenteM12
AberturaF1.2

luminador
IR Wavelength850 nm
Alcance de IRUp to 30 m

Vídeo
Resolução máx.1920 × 1080
Convencional50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Subfluxo 50Hz: 25 fps (640 × 480, 640 × 360) 60Hz: 30 fps (640 × 480, 640 × 360)
Compressão de vídeo Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Taxa de bits de vídeo32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
H.264+Main stream supports
H.265+Main stream supports
Região de interesse (ROI)Support 1 fixed region for main stream

Rede
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Visualização ao vivo simultâneaUp to 6 channels
APIOpen Network Video Interface, ISAPI
Usuário/HostUp to 32 users. 3 levels: administrator, operator and user
Armazenamento de redeSupport Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, Hik-Central
Navegador da webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagem
Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Switch Dia/NoiteDay, Night, Auto, Schedule
Aprimoramento da imagemBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
Armazenamento integradoBuilt-in Micro SD slot, up to 256 GB
Redefinição de hardwareYes

Evento
Evento inteligenteLine crossing detection, intrusion detection

Geral
Método de vinculaçãoUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Material da câmeraMetal & Plastic
Dimensão da câmera69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")
Dimensões do pacote216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7)
Peso da câmeraApprox. 350 g (0.8 lb.)
Com peso do pacoteApprox. 450 g (1.0 lb.)
Condições de armazenamento-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Condições de inicialização e operação-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Idioma do web client33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Função geralOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Versão do FirmwareV5.5.120
Fonte de alimentação12 VDC ± 25% PoE: 802.3af, Class 3
Power InterfaceØ5.5 mm coaxial power plug
Power Consumption and Current12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Consumo de energia e corrente12 VDC, 0.3 A, max. 4 W; PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 5.5 W

Aprovação
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SegurançaUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProteçãoIP67 (IEC 60529-2013)

Câmera

Sensor de imagem

1/2.8" Progressive Scan CMOS

Iluminação mínima

Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR

Velocidade do obturador

1/3 s to 1/100,000 s

Obturador lento

Yes

Ampla faixa dinâmica

120 dB

Dia e noite

IR Cut Filter

Ajuste de Ângulo

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lentes

Foco

Fixed

Focal Length & FOV

2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9° 4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8° 6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°

Montagem da lente

M12

Abertura

F1.2

luminador

IR Wavelength

850 nm

Alcance de IR

Up to 30 m

Vídeo

Resolução máx.

1920 × 1080

Convencional

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Subfluxo

50Hz: 25 fps (640 × 480, 640 × 360) 60Hz: 30 fps (640 × 480, 640 × 360)

Compressão de vídeo

Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG

Taxa de bits de vídeo

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Região de interesse (ROI)

Support 1 fixed region for main stream

Rede

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Visualização ao vivo simultânea

Up to 6 channels

API

Open Network Video Interface, ISAPI

Usuário/Host

Up to 32 users. 3 levels: administrator, operator and user

Armazenamento de rede

Support Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR

Client

iVMS-4200, Hik-Connect, Hik-Central

Navegador da web

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagem

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Switch Dia/Noite

Day, Night, Auto, Schedule

Aprimoramento da imagem

BLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Armazenamento integrado

Built-in Micro SD slot, up to 256 GB

Redefinição de hardware

Yes

Evento

Evento inteligente

Line crossing detection, intrusion detection

Geral

Método de vinculação

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Material da câmera

Metal & Plastic

Dimensão da câmera

69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")

Dimensões do pacote

216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7)

Peso da câmera

Approx. 350 g (0.8 lb.)

Com peso do pacote

Approx. 450 g (1.0 lb.)

Condições de armazenamento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Condições de inicialização e operação

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Idioma do web client

33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Função geral

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Versão do Firmware

V5.5.120

Fonte de alimentação

12 VDC ± 25% PoE: 802.3af, Class 3

Power Interface

Ø5.5 mm coaxial power plug

Power Consumption and Current

12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 to 57 V), 0.2 A to 0.15 A, max. 6.5 W

Consumo de energia e corrente

12 VDC, 0.3 A, max. 4 W; PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 5.5 W

Aprovação

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Segurança

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Proteção

IP67 (IEC 60529-2013)
