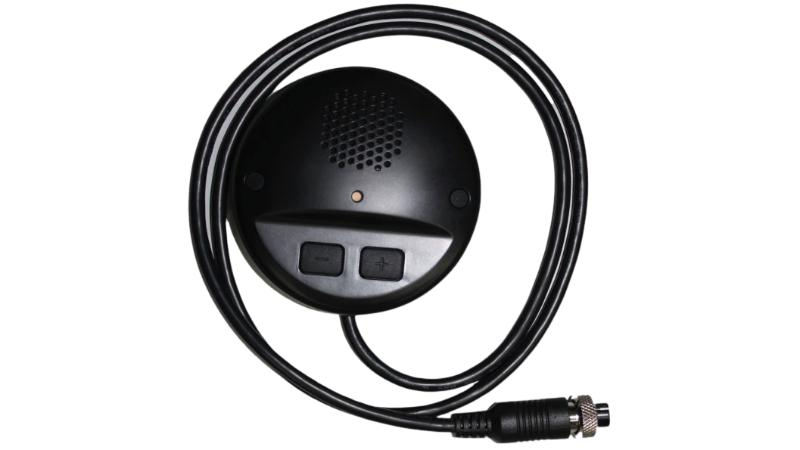

DS-1350HM

Voice Intercom Unit

Independent audio processing chip
Full-duplex two-way audio with high volume voice, fidelity, clear tone, and low noise
5 level volume adjustment via pressing physical button
Built-in microphone
Small and light, convenient for installation and maintenance

View Less

Geral
Alto-falante< 2 Vpp; Impedance: 600 Ω; 1-ch built-in speaker
MIC< 1.2 Vpp; Impedance: 1000 Ω; 1-ch built-in MIC; Connectable to external interface. Supports auto switch
Tensão de funcionamento12 VDC/30 mA
Temperatura de funcionamento-10° C to +55° C (+14° F to +131° F)
Umidade de funcionamento10% to 95%
Dimensions85 × 85 × 26 mm (3.3 × 3.3 × 1.0 inch)

Physical buttons

Volume

Physical button. 5 levels adjustable.

Sistema

Indicador

Solid lit or flashing

Comprimento dos cabos

6000 mm

Geral

Alto-falante

< 2 Vpp; Impedance: 600 Ω; 1-ch built-in speaker

MIC

< 1.2 Vpp; Impedance: 1000 Ω; 1-ch built-in MIC; Connectable to external interface. Supports auto switch

Tensão de funcionamento

12 VDC/30 mA

Temperatura de funcionamento

-10° C to +55° C (+14° F to +131° F)

Umidade de funcionamento

10% to 95%

Dimensions

85 × 85 × 26 mm (3.3 × 3.3 × 1.0 inch)

Physical buttons

Sistema

Geral

Alto-falante< 2 Vpp; Impedance: 600 Ω; 1-ch built-in speaker
MIC< 1.2 Vpp; Impedance: 1000 Ω; 1-ch built-in MIC; Connectable to external interface. Supports auto switch
Tensão de funcionamento12 VDC/30 mA
Temperatura de funcionamento-10° C to +55° C (+14° F to +131° F)
Umidade de funcionamento10% to 95%
Dimensions85 × 85 × 26 mm (3.3 × 3.3 × 1.0 inch)
