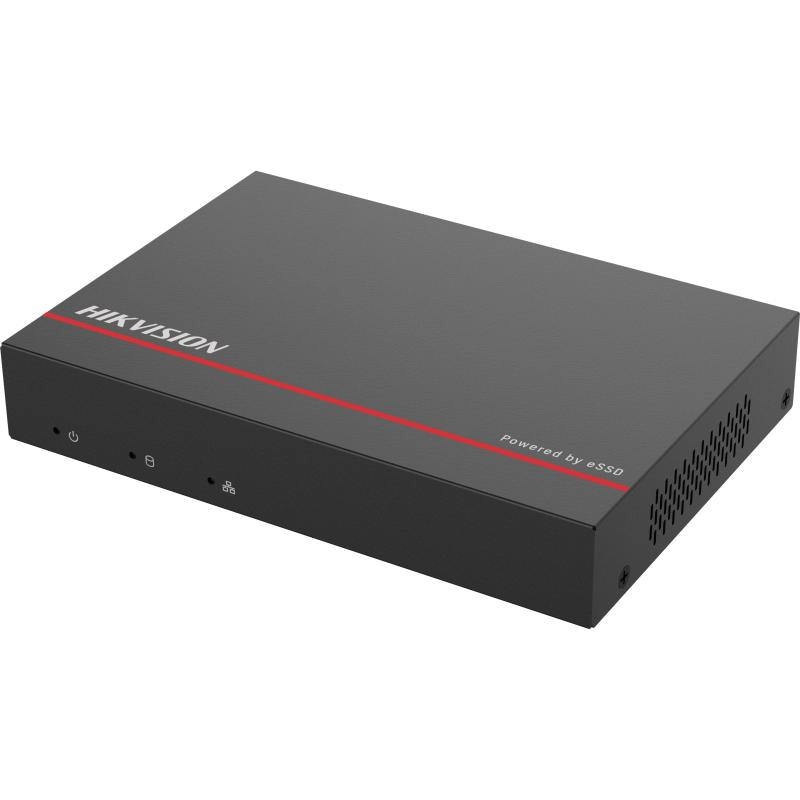

SSD NVR

  • Powered by eSSD technology
  • Low power consumption
  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 4-ch network camera inputs
  • Up to 4-ch 1080p decoding capability

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-E04NI-Q1/4P(SSD 1T)
DS-E04NI-Q1/4P(SSD 2T)
DS-E04NI-Q1/4P
Data Sheet

Specification

  • Video and Audio
  • IP Video Input4-ch
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
  • Decoding
  • Decoding FormatH.265,Smart265,H.264,Smart264
  • Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback4-ch
  • Decoding Capability4-ch@1080p (25 fps)
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
  • Network
  • Remote Connection128-ch
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 36 W
  • StandardIEEE 802.3 af/at
  • Auxiliary Interface
  • Capacity1TB SSD (pre-installed)
  • USB InterfaceRear panel: 2 × USB 2.0
  • General
  • Power Supply48VDC，1.04A
  • Consumption≤ 10 W (with SSD)
  • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)160 ×112 ×27 mm (6.3" × 4.4" × 1.1")
  • Weight≤ 0.39 kg
  • Certification
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

Video and Audio
IP Video Input
4-ch
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
60 Mbps
HDMI Output
1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
Decoding
Decoding Format
H.265,Smart265,H.264,Smart264
Recording Resolution
4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
4-ch
Decoding Capability
4-ch@1080p (25 fps)
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726
Network
Remote Connection
128-ch
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface
1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 36 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
Capacity
1TB SSD (pre-installed)
USB Interface
Rear panel: 2 × USB 2.0
General
Power Supply
48VDC，1.04A
Consumption
≤ 10 W (with SSD)
Working Temperature
-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity
10 to 90 %
Dimension (W × D × H)
160 ×112 ×27 mm (6.3" × 4.4" × 1.1")
Weight
≤ 0.39 kg
Certification
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
For better user experience, we highly recommend you to update your device to the latest firmware asap.
Specification
Video and Audio
  • IP Video Input4-ch
  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
Decoding
  • Decoding FormatH.265,Smart265,H.264,Smart264
  • Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback4-ch
  • Decoding Capability4-ch@1080p (25 fps)
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
Network
  • Remote Connection128-ch
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
  • Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 36 W
  • StandardIEEE 802.3 af/at
Auxiliary Interface
  • Capacity1TB SSD (pre-installed)
  • USB InterfaceRear panel: 2 × USB 2.0
General
  • Power Supply48VDC，1.04A
  • Consumption≤ 10 W (with SSD)
  • Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
  • Working Humidity10 to 90 %
  • Dimension (W × D × H)160 ×112 ×27 mm (6.3" × 4.4" × 1.1")
  • Weight≤ 0.39 kg
Certification
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
