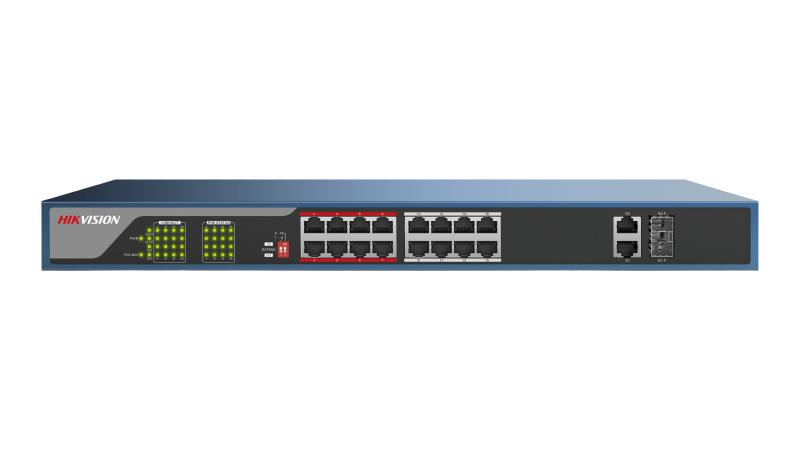

16 Port Fast Ethernet Unmanaged POE Switch

16 x 10/100 Mbps PoE ports, 2 x 10/100/1000 Mbps combo uplink ports
IEEE 802.3 af & at high PoE power supply
Maximum 250 m long distance PoE transmission
VIP port transmission priority
Safe and reliable using 6 KV high surge protection
Supports store-and-forward
Supports MAC address auto learning and auto aging
Supports smart cache optimization
Supports desktop / wall mounting.

View Less

Available models:

DS-3E0318P-E(US adaptor)

DS-3E0318P-E

EOL

Specification
Resources
Accessories

General
Storage TemperatureTemperature: -40℃-70℃
Power Supply100-240V AC, 50/60Hz
Weight3.72kg
Storage HumidityHumidity: 5%-90% , non-condensing
Surge Protection4KV
Power Consumption≤250W

Performance
Switching Capacity7.2Gbps
Store-and-forwardStore-and-forward
Max. Forwarding Rate5.36Mpps

PoE
Working ModeExtend On:250m,10M,CAT 5e, Extend Off:100m
PoE StandardIEEE802.3af, IEEE802.3at
PoE Power Budget230W
PoE Port16, 10/100Mbps RJ45 ports

Port
Uplink Port2, 1000M Combo Port
Network Ports18
High-priority PortPorts 1-8

Accessories
SFP modules (Optional)HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km ,HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km

Standard
Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at

performance
Switching Capacity7.2Gbps
Max. Forwarding Rate5.36Mpps
Store-and-forwardStore-and-forward

General

Storage Temperature

Temperature: -40℃-70℃

Power Supply

100-240V AC, 50/60Hz

Weight

3.72kg

Storage Humidity

Humidity: 5%-90% , non-condensing

Surge Protection

4KV

Power Consumption

≤250W

Performance

Switching Capacity

7.2Gbps

Store-and-forward

Max. Forwarding Rate

5.36Mpps

PoE

Working Mode

Extend On:250m,10M,CAT 5e, Extend Off:100m

PoE Standard

IEEE802.3af, IEEE802.3at

PoE Power Budget

230W

PoE Port

16, 10/100Mbps RJ45 ports

Port

Uplink Port

2, 1000M Combo Port

Network Ports

High-priority Port

Ports 1-8

Accessories

SFP modules (Optional)

HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km ,HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km

Standard

Network Protocol

IEEE802.3,802.3u,802.3x, 802.3af, 802.3at

performance
