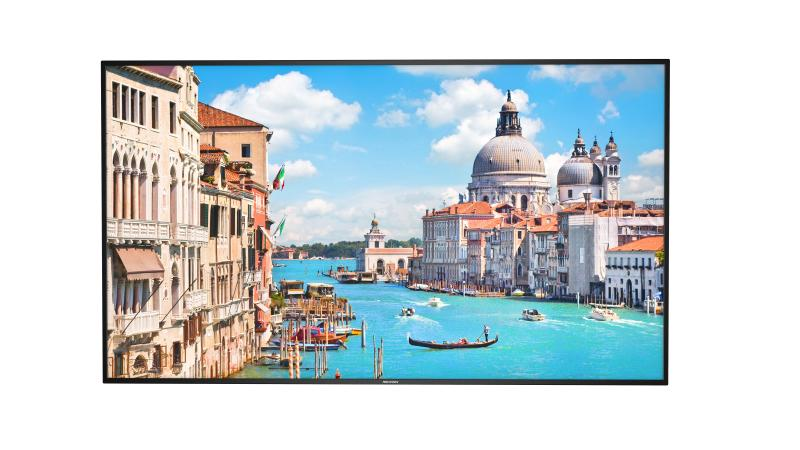

42.5-inch 4K Monitor

Designed for surveillance, high reliability and stability.
42.5" LED backlight with wide display equipment.
4K resolution is 4 times the resolution of 1080p, providing a wider view and finer details.
Multiple inputs: HDMI, VGA, USB.
Narrow front bezel.
Wide view angle: horizontal 178°, vertical 178°.
24/7 operation.

View Less

Data Sheet

Available models:

DS-D5043UC

EOL

Specification
Resources
Accessories

Data Sheet

Display
Screen Size42.5”
Active Display Area941.184 (H) mm × 529.416 (V) mm
Resolution3840 × 2160
BacklightD-LED
Pixel Pitch0.2451 (H) mm × 0.2451 (W) mm
Brightness400 cd/m²
Viewing Angle178° (H)/178° (V)
Color Depth1.07 billion
Contrast Ratio4000:1
Response Time8 ms

Interface
Video & Audio InputHDMI × 2, VGA × 1, AUDIO IN × 1
Video & Audio OutputAUDIO OUT × 1
Data Transmission InterfaceUSB 2.0 × 1, USB 3.0 × 1
Control InterfaceRS-232 × 1
Loudspeaker8 W × 2

Power
Power Supply100 to 240 VAC, 50/60 Hz
Power Consumption≤ 120 W
Standby Consumption0.5 W

Working Environment
Working Temperature5°C to 40 °C (41 °F to 104 °F)
Working Humidity20% to 80% RH (non-condensing)
Storage Temperature–20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)
Storage Humidity10% to 90% RH (non-condensing)

General
VESA200 mm × 200 mm/400 mm × 400 mm
Product Dimensions (W × H × D)968.2 (W) mm × 559.4 (H) mm × 60.9 (D) mm (38.12'' × 22.02'' × 2.40'')
Mounting TypeWall mounting
Package Dimensions (W × H × D)1070 (W) mm × 696 (H) mm × 159 (D) mm ( 42.13'' × 27.40'' × 6.26'')
Net Weight8.6 kg (18.96 lb.)
Gross Weight11.7 kg (3.75 lb.)
Packing ListPower cable × 1, HDMI cable × 1, remote control × 1, user manual × 1
RemarksIf the appearance and parameters in this specification vary from the actual product, the later prevails. You can also consult local sale staff.
ColorBlack

Display

Screen Size

42.5”

Active Display Area

941.184 (H) mm × 529.416 (V) mm

Resolution

3840 × 2160

Backlight

D-LED

Pixel Pitch

0.2451 (H) mm × 0.2451 (W) mm

Brightness

400 cd/m²

Viewing Angle

178° (H)/178° (V)

Color Depth

1.07 billion

Contrast Ratio

4000:1

Response Time

8 ms

Interface

Video & Audio Input

HDMI × 2, VGA × 1, AUDIO IN × 1

Video & Audio Output

AUDIO OUT × 1

Data Transmission Interface

USB 2.0 × 1, USB 3.0 × 1

Control Interface

RS-232 × 1

Loudspeaker

8 W × 2

Power

Power Supply

100 to 240 VAC, 50/60 Hz

Power Consumption

≤ 120 W

Standby Consumption

0.5 W

Working Environment

Working Temperature

5°C to 40 °C (41 °F to 104 °F)

Working Humidity

20% to 80% RH (non-condensing)

Storage Temperature

–20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)

Storage Humidity

10% to 90% RH (non-condensing)

General

VESA

200 mm × 200 mm/400 mm × 400 mm

Product Dimensions (W × H × D)

968.2 (W) mm × 559.4 (H) mm × 60.9 (D) mm (38.12'' × 22.02'' × 2.40'')

Mounting Type

Wall mounting

Package Dimensions (W × H × D)

1070 (W) mm × 696 (H) mm × 159 (D) mm ( 42.13'' × 27.40'' × 6.26'')

Net Weight

8.6 kg (18.96 lb.)

Gross Weight

11.7 kg (3.75 lb.)

Packing List

Power cable × 1, HDMI cable × 1, remote control × 1, user manual × 1

Remarks

If the appearance and parameters in this specification vary from the actual product, the later prevails. You can also consult local sale staff.

Color

Black

Display

Screen Size42.5”
Active Display Area941.184 (H) mm × 529.416 (V) mm
Resolution3840 × 2160
BacklightD-LED
Pixel Pitch0.2451 (H) mm × 0.2451 (W) mm
Brightness400 cd/m²
Viewing Angle178° (H)/178° (V)
Color Depth1.07 billion
Contrast Ratio4000:1
Response Time8 ms

Interface

Video & Audio InputHDMI × 2, VGA × 1, AUDIO IN × 1
Video & Audio OutputAUDIO OUT × 1
Data Transmission InterfaceUSB 2.0 × 1, USB 3.0 × 1
Control InterfaceRS-232 × 1
Loudspeaker8 W × 2

Power

Power Supply100 to 240 VAC, 50/60 Hz
Power Consumption≤ 120 W
Standby Consumption0.5 W

Working Environment

Working Temperature5°C to 40 °C (41 °F to 104 °F)
Working Humidity20% to 80% RH (non-condensing)
Storage Temperature–20 ℃ to 60 ℃ (–4 ℉ to 140 ℉)
Storage Humidity10% to 90% RH (non-condensing)

General

VESA200 mm × 200 mm/400 mm × 400 mm
Product Dimensions (W × H × D)968.2 (W) mm × 559.4 (H) mm × 60.9 (D) mm (38.12'' × 22.02'' × 2.40'')
Mounting TypeWall mounting
Package Dimensions (W × H × D)1070 (W) mm × 696 (H) mm × 159 (D) mm ( 42.13'' × 27.40'' × 6.26'')
Net Weight8.6 kg (18.96 lb.)
Gross Weight11.7 kg (3.75 lb.)
Packing ListPower cable × 1, HDMI cable × 1, remote control × 1, user manual × 1
RemarksIf the appearance and parameters in this specification vary from the actual product, the later prevails. You can also consult local sale staff.
ColorBlack
