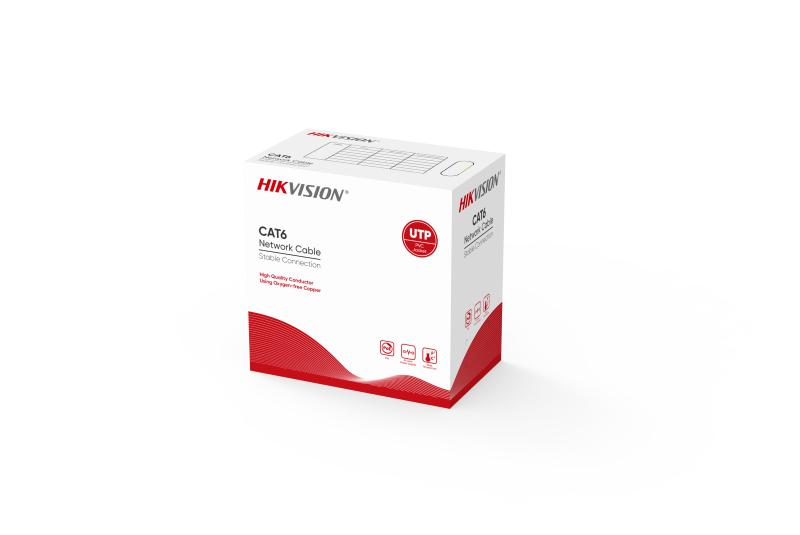

305 m CAT6 UTP Network Cable (Solid Copper, 0.53 mm, CM)

Full diameter 305 m CAT6 network cable
Core diameter: 0.53mm
Excellent transmission performance using solid copper
Quality verified by Fluke test
Guaranteed long PoE transmission distance
Great PVC flame resistance.

View Less

Data Sheet

Available models:

DS-1LN6-UE-W

Specification
Resources
Accessories

Data Sheet

General
Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
PackingWooden Tray & Carton
Carton DimensionPer request
Packing length305±1.5m
Rip-cordYes
Drain wireNo
Sheath Physical PropertiesBefore Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,

Conductor
MaterialSOLID-Bare Copper,Content 99.95%,
Nom.O.D.(mm)0.530±0.005

Insulation
MaterialHDPE
Diameter0.95±0.05mm

Sheath
Thickness0.55±0.05 mm
External O.D.5.8±0.4mm
SurfaceClean,Frap,Satiation
MaterialPVC(complies RoHS), CM
ColorWhite RAL9003

Surface Printing
Letter height3.0±0.3mm
ColorBlack
Print error & Space≤±0.5%，1m

General

Core Color

1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,

Packing

Wooden Tray & Carton

Carton Dimension

Per request

Packing length

305±1.5m

Rip-cord

Yes

Drain wire

Sheath Physical Properties

Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,

Electrical Characteristics (20℃)

1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,

Conductor

Material

SOLID-Bare Copper,Content 99.95%,

Nom.O.D.(mm)

0.530±0.005

Insulation

Material

HDPE

Diameter

0.95±0.05mm

Sheath

Thickness

0.55±0.05 mm

External O.D.

5.8±0.4mm

Surface

Clean,Frap,Satiation

Material

PVC(complies RoHS), CM

Color

White RAL9003

Surface Printing

Letter height

3.0±0.3mm

Color

Black

Print error & Space

≤±0.5%，1m
