DS-KB6403-WIP

    EOL

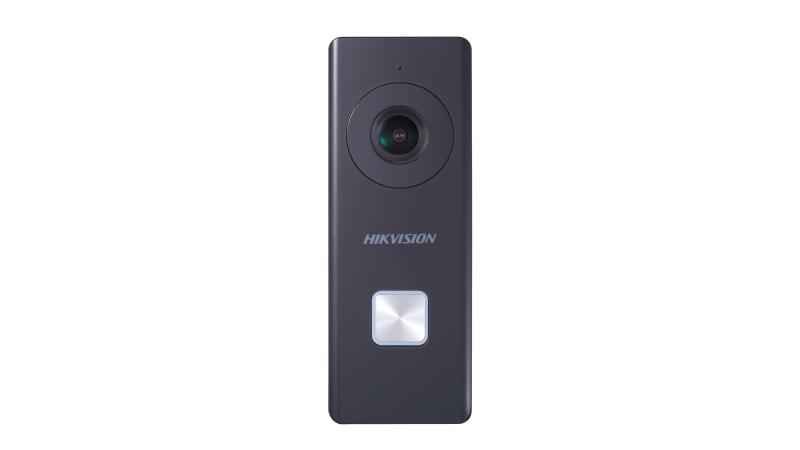

    12 VDC Wi-Fi Doorbell

    • Wi-Fi Video Doorbell
    • 2 MP camera with supplemental IR light
    • 1 Call Button, 1 Reset Button, 1 Wireless Interface
    • Supporting WiFi 2.4 GHz, 12VDC, IP54
    • Video intercom with mobile app
    View Less
    View more

    Available models:

    DS-KB6403-WIP

    Specification

    • Network parameters
    • Network protocolTCP/IP, RTSP
    • Network interface1 Wireless Interface (Wireless Network Card), Supporting 2.4 GHz
    • Device interfaces
    • TF cardMax. 128 G
    • Button1 Call Button, 1 Reset Button
    • General
    • Ingress protection levelIP 54
    • Power consumptionMax. 0.6 A
    • Working temperature-30° C to +50° C (-22° F to 122° F)
    • Working humidity10% to 90%
    • Power supply12 VDC
    • Dimensions122.4 mm x 45.9 mm x 28.1 mm (4.82" x 1.81" x 1.11")
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Specification

    Network parameters
    Network protocol
    TCP/IP, RTSP
    Network interface
    1 Wireless Interface (Wireless Network Card), Supporting 2.4 GHz
    Device interfaces
    TF card
    Max. 128 G
    Button
    1 Call Button, 1 Reset Button
    General
    Ingress protection level
    IP 54
    Power consumption
    Max. 0.6 A
    Working temperature
    -30° C to +50° C (-22° F to 122° F)
    Working humidity
    10% to 90%
    Power supply
    12 VDC
    Dimensions
    122.4 mm x 45.9 mm x 28.1 mm (4.82" x 1.81" x 1.11")
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Specification
    Network parameters
    • Network protocolTCP/IP, RTSP
    • Network interface1 Wireless Interface (Wireless Network Card), Supporting 2.4 GHz
    Device interfaces
    • TF cardMax. 128 G
    • Button1 Call Button, 1 Reset Button
    General
    • Ingress protection levelIP 54
    • Power consumptionMax. 0.6 A
    • Working temperature-30° C to +50° C (-22° F to 122° F)
    • Working humidity10% to 90%
    • Power supply12 VDC
    • Dimensions122.4 mm x 45.9 mm x 28.1 mm (4.82" x 1.81" x 1.11")
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
