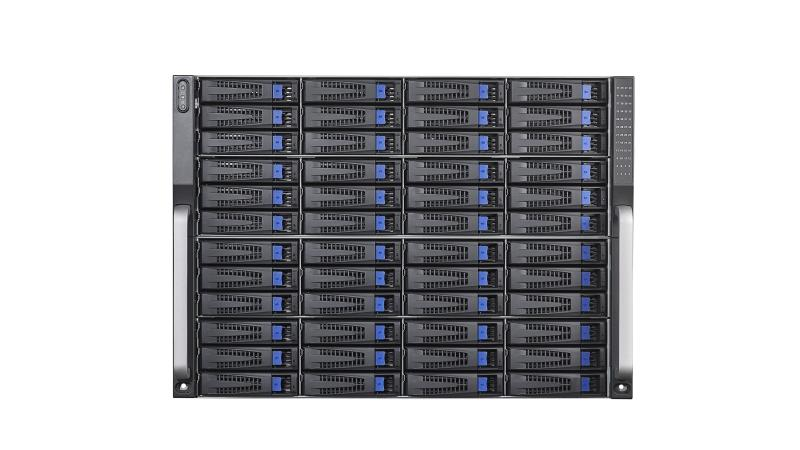

48-slot High-performance Cluster Storage

  • High reliability and scalability with redundant design for key parts, including modular drawer design (48 HDD slot, two 6-core processor, 16 GB cache extendable to 64 GB)
  • Storage with virtualization/distribution/scale-out/load balance
  • High performance application, cost-efficient system
  • Efficient maintenance service
  • Green, energy-efficient, compatible & open;
Specification
  • External interface
  • USB4
  • VGA1
  • Data4, 1000M Ethernet interface, extendable to 4 × GE or 2 × 10GE
  • Management1, 100M Ethernet interface
  • COM1
  • General
  • Power supplyRedundant power supply
  • Dimensions (W × D × H)447 × 843 × 344 mm (17.6 × 33.2 × 13.5 inch)
  • Chassis19-inch 8U standard chassis
  • Weight (without HDD)≤ 50 kg (110.2 lb)
  • Power Consumption(with HDD)Operating: ≤ 620 W Rated: ≤ 1360 W
  • TemperatureOperating: 5 °C to 35 °C (41 °F to 95 °F);Storing: -20 °C to +70 °C (-4 °F to +158 °F)
  • HumidityOperating: 20% to 80% RH (non-condensing/frozen);Storing: 5% to 90% RH (non-condensing/frozen)
  • Storage
  • InterfaceSATA (SSD optional)
  • Hot-pluggingSupported
  • HDD slot48
  • RAIDRAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
  • Capacity1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8TB,10TB,12TB
  • Controller
  • Processor2 × Xeon hexa-core processor
  • Cache16 GB (extendable to 64 GB)
  • SSD64 GB
  • Software module
  • CVADevice access management, recording schedule, stream forwarding, VCA
  • CVSVideo access service, storage space management, data read/write
  • Storage managementStorOS storage system, RAID management, HDD detection and restoration, alarm
  • Performance
  • Video: recording + playback (2Mbps)360-ch + 32-ch
