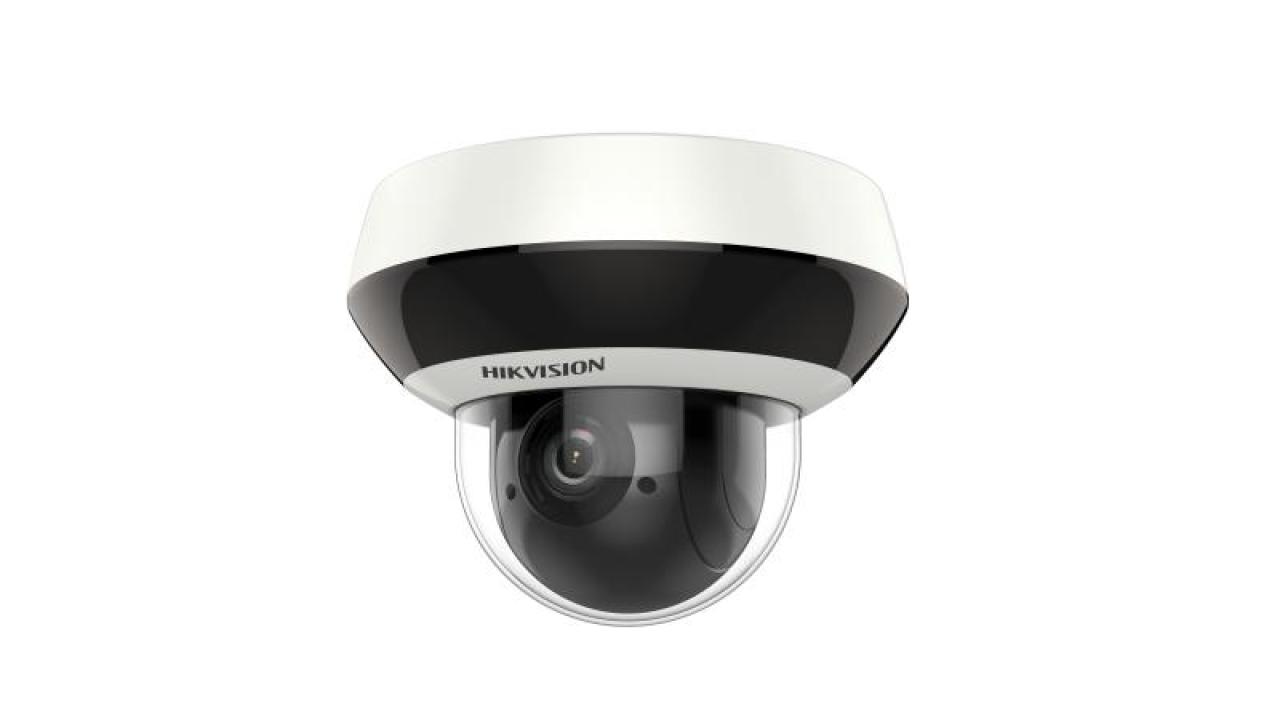

4MP 4X Outdoor IR Network PTZ Dome Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
4x optical zoom allows for closer viewing of subjects in expansive areas
Up to 20m IR range ensures safety at night.

View Less

Available models:

DS-2DE2A404IW-DE3(2.8-12mm)

DS-2DE2A404IW-DE3(2.8-12mm)(C)

DS-2DE2A404IW-DE3

EOL

Specification
Resources
Accessories

Lens
FOVHorizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
Zoom SpeedApprox. 2 s (optical lens, wide-tele)
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.6 to F2.7
Focal Length2.8 mm to 12 mm, 4× optical zoom

Image Enhancement3D DNR, EIS, Regional Exposure, Regional Focus
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution2560 × 1440
Main Stream50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps(2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users,3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm LinkageAlarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Interface
Power Output12VDC, max. 60 mA
Audio Input1-ch audio input
Audio Output1-ch audio output
Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE

Compression Standard
H.264+Yes
H.265+Yes
H.264 TypeBaseline Profile/Main Profile/High Profile
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
Video Bitrate32 Kbps to 16384 Kbps
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
SVCYes

Camera Module
Image Sensor1/3" progressive scan CMOS
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
Day & NightIR cut filter
Digital Zoom16×
Privacy Mask24 programmable privacy masks
Focus ModeAuto/Semi-automatic/Manual
WDR120 dB WDR

Supplement Light
IR Distance20 m
Smart IRYes

PTZ
Movement Range (Pan)0° to 355°
Pan SpeedConfigurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Movement Range (Tilt)From 0° to 90°
Tilt SpeedConfigurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
Proportional ZoomYes
Presets300
Power-off MemoryYes

Smart Features
Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
Smart DetectionFace Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
Smart RecordANR (Automatic Network Replenishment), Dual-VCA
ROIMain stream, sub-stream, and third stream respectively support four fixed areas.

General
MaterialAluminum alloy, PC, PC+ABS
DimensionsΦ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
WeightApprox. 0.53 kg (1.17 lb)
Protection LevelIP66 Standard, IK 10, Surge Protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5
Power12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
Working Temperature-20°C to 60°C (-4°F to 140°F)
Working Humidity≤ 90%

Lens

FOV

Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)

Zoom Speed

Approx. 2 s (optical lens, wide-tele)

Working Distance

10 mm to 1500 mm (wide-tele)

Aperture Range

F1.6 to F2.7

Focal Length

2.8 mm to 12 mm, 4× optical zoom


Image Enhancement

3D DNR, EIS, Regional Exposure, Regional Focus

Sub-Stream

50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

Max. Resolution

2560 × 1440

Main Stream

50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps(2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)

Third Stream

50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network

Network Storage

Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR

Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour

API

Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform

Simultaneous Live View

Up to 20 channels

User/Host

Up to 32 users,3 levels: Administrator, Operator and User

Client

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser

IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+

Security Measures

User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering

Alarm Linkage

Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Interface

Power Output

12VDC, max. 60 mA

Audio Input

1-ch audio input

Audio Output

1-ch audio output

Network Interface

1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE

Compression Standard

H.264+

Yes

H.265+

Yes

H.264 Type

Baseline Profile/Main Profile/High Profile

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG

Video Bitrate

32 Kbps to 16384 Kbps

Audio Compression

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Bitrate

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)

SVC

Yes

Camera Module

Image Sensor

1/3" progressive scan CMOS

Min. Illumination

Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR

White Balance

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

Gain

Auto/Manual

Shutter Time

50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s

Day & Night

IR cut filter

Digital Zoom

16×

Privacy Mask

24 programmable privacy masks

Focus Mode

Auto/Semi-automatic/Manual

WDR

120 dB WDR

Supplement Light

IR Distance

20 m

Smart IR

Yes

PTZ

Movement Range (Pan)

0° to 355°

Pan Speed

Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s

Movement Range (Tilt)

From 0° to 90°

Tilt Speed

Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s

Proportional Zoom

Yes

Presets

300

Power-off Memory

Yes

Smart Features

Basic Event Detection

Motion Detection, Video Tampering Detection, Exception

Smart Detection

Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection

Smart Record

ANR (Automatic Network Replenishment), Dual-VCA

ROI

Main stream, sub-stream, and third stream respectively support four fixed areas.

General

Material

Aluminum alloy, PC, PC+ABS

Dimensions

Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")

Weight

Approx. 0.53 kg (1.17 lb)

Protection Level

IP66 Standard, IK 10, Surge Protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5

Power

12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)

Working Temperature

-20°C to 60°C (-4°F to 140°F)

Working Humidity

≤ 90%
